GREE Yinlong LTO 66160K 45Ah Cylindrical Battery | 25,000 Cycles & 10C High Discharge

Additional information

Capacity	45Ah

For engineering projects demanding the absolute peak of performance in the 66mm format, the GREE Yinlong LTO 66160K 45Ah Cylindrical Battery is the undisputed premium choice. As the enhanced 2026 successor to the world-renowned 66160H model, this “K” series cell maximizes the energy density of Lithium Titanate (LTO) technology without compromising on the extreme safety and legendary longevity GREE is globally recognized for.

Technical Superiority: The 45Ah High-Density Advantage

🔋 12.5% Increased Capacity in Same Footprint: Gain more runtime and a larger power reserve in the exact same physical size as the previous 40Ah model. The GREE Yinlong LTO 66160K 45Ah Cylindrical Battery is the premier choice for range-limited AGVs and high-density industrial battery banks requiring maximum energy in compact spaces.
💥 Massive 10C Discharge (450A Burst): Purpose-built for high-torque and heavy-load demands, this cell delivers a massive 450A pulse. It effortlessly handles the aggressive startup currents of heavy diesel trucks, marine engines, and specialized industrial machinery where traditional lithium batteries struggle.
⏳ Legendary 25,000+ Cycle Life: Retaining the incredible durability of the Yinlong family, this LTO cell is designed for 24/7 high-frequency use. A single installation is typically sufficient to cover the entire 20-30 year service life of the equipment it powers, offering the lowest Total Cost of Ownership (TCO) in the industry.
🛠️ Simplified Assembly with M12 Studs: Unlike standard cells requiring complex spot welding, the GREE Yinlong LTO 66160K 45Ah Cylindrical Battery features integrated M12 screw terminals. This allows for rapid, secure connection using only nuts and busbars, significantly reducing assembly time and maintenance complexity.
❄️ Extreme Temperature Resilience: Leveraging LTO chemistry, this 45Ah cell maintains exceptional charging and discharging performance in extreme environments from -50°C to 60°C, making it indispensable for high-altitude research and arctic industrial sensors.

Strategic Application GEOs:

The GREE Yinlong LTO 66160K 45Ah Cylindrical Battery is optimized for 2026 energy clusters in Automated Guided Vehicles (AGVs), Hybrid Heavy Machinery, and Grid-Stabilizing Energy Storage. Its unique “Zero-Risk” safety profile ensures no thermal runaway even under severe mechanical damage.

GREE Yinlong LTO 66160K 45Ah Cylindrical Battery | DLCPO

High-performance GREE Yinlong LTO 66160K 45Ah Cylindrical Battery | 25,000 Cycles & 10C High Discharge for industrial energy storage. DLCPO provides reliable LFP and LTO battery solutions with long cycle life and global certifications. Contact us for OEM/ODM service and wholesale price.

Product SKU: 66160K-45Ah

Product Brand: GREE Yinlong

Product Currency: USD

Product Price: 76

Price Valid Until: 2028-05-31

Product In-Stock: InStock

Editor's Rating:
4.99

🤝 Why Partner with DLCPO?

Tier-1 Grade A Cells: 100% authentic quality with intact factory QR codes for full lifecycle traceability.
Precision Cell Matching: Guaranteed consistency in Capacity, Voltage, and IR, supported by original manufacturer test reports.
Fresh-Batch Guarantee: Strictly zero-stock policy—all cells are sourced from the absolute latest production runs.
Custom Hardware Support: Laser-welded terminals and tailored busbar configurations to meet any project specification.
Global DDP Shipping: Hassle-free door-to-door logistics with all duties fully handled (excluding certain regions).

Product Tags: 45Ah Battery, Cylindrical LTO, DLCPO, GREE Yinlong, LTO 66160K

Product specs

Pro Tip: When calculating ROI, the Cycle Life and Internal Resistance consistency are the true drivers of your “Price per kWh” over the system’s lifetime. All our cells undergo strict factory matching before dispatch.

Parameter	Specification
Brand	GREE / Yinlong
Model	LTO66160K-45Ah
Nominal Capacity	45Ah
Nominal Voltage	2.3V
Internal Resistance	≤ 0.7mΩ
Dimensions	66mm (D) x 160mm (H)
Max Continuous Discharge	240A (approx 6C)
Max Pulse Discharge	400A (approx 10C)
Cycle Life	≥ 25,000 Cycles
Operating Temp	-40°C ~ 55°C

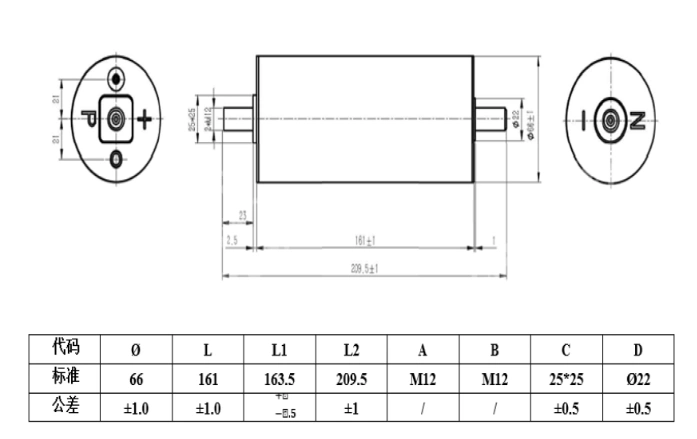

Drawing

Detailed physical blueprint for precise battery pack assembly and structural engineering.

Battery Applications

Solar & Renewable Energy

Residential and commercial ESS, off-grid solar systems, and micro-grids.

Electric Mobility (EV/AGV)

High-power cells for EVs, electric buses, forklifts, and automated guided vehicles.

Marine & Maritime Power

Reliable power for electric boats, yachts, and offshore energy storage.

Telecom & UPS Backup

Stable backup power for 5G base stations, data centers, and industrial UPS.

Safety Instructions & Usage Warnings

🔋 Standard Charging: Only use chargers specifically designed for LiFePO4/LTO chemistry. Do not exceed the maximum charge voltage and current specified in the datasheet.

🌡️ Temperature Range: Do not charge the battery in temperatures below 0°C (unless specified) or above 45°C. Discharge temperature must remain within -20°C to 60°C.

⚡ Short Circuit Prevention: Strictly avoid direct connection between the positive and negative terminals with any metal objects. Ensure terminals are insulated during assembly.

🛡️ BMS Requirement: These are raw cells. A high-quality Battery Management System (BMS) must be installed for over-charge, over-discharge, and thermal protection.

⚠️ Physical Protection: Do not puncture, crush, or drop the cells. If cells show leakage or deformation, stop using them immediately and contact DLCPO Support.

Lithium Battery Sourcing & Service FAQ

❓ Q1: Why should I choose DLCPO Power for my lithium battery projects?

💡 A: DLCPO Power is a professional, technology-driven distributor specialized in high-grade lithium cells. We are an authorized gateway to industry-leading brands including CALB, EVE, REPT, and GOTION. Unlike standard trading firms, we provide engineering-grade quality control, ensuring every cell is 100% tested and precision-matched for voltage and internal resistance before dispatch.

❓ Q2: Why don't you have battery stock in overseas warehouses?

💡 A: This is a deliberate strategic choice to protect your battery lifecycle. Batteries stored in overseas warehouses for months suffer from capacity degradation and voltage imbalance. At DLCPO, we operate on a “Zero Aged Stock” model. Every order is fulfilled via made-to-order production or allocated from the absolute latest factory batches. This guarantees you receive 100% fresh Grade A cells with peak chemical activity and perfectly matched performance.

❓ Q3: Can you provide customized terminals like M6 studs or connecting busbars?

💡 A: Yes, we provide full technical customization to simplify your assembly. Based on your project requirements, we can professionally process each batch by laser-welding specific terminals (such as standard M6 threaded studs) and providing perfectly matched connecting busbars. Our goal is to ensure your cells arrive “plug-and-play” ready for immediate pack integration.

❓ Q4: What is the standard ordering process and delivery terms (EXW/FOB/DDP)?

💡 A: We offer a streamlined B2B purchasing experience:

Consultation: Confirming cell models and technical specs via dlcpo@dlcpo.com.
Flexible Terms: We support EXW, FOB, and DDP shipping (available for most global regions, handling all customs and import taxes).
Fresh Allocation: Arranging the latest factory batch production.
Testing & Logistics: 100% matching test followed by UN38.3 compliant dangerous goods packaging and global dispatch.

❓ Q5: What support do you provide after the batteries are delivered?

💡 A: At DLCPO, we firmly believe that receiving payment and delivering goods is not the end of a transaction, but the true beginning of our service value. Our technical team provides continuous post-delivery support, including warranty assistance and BMS configuration guidance. We don’t just sell cells; we ensure your energy systems perform optimally for their entire service life.
