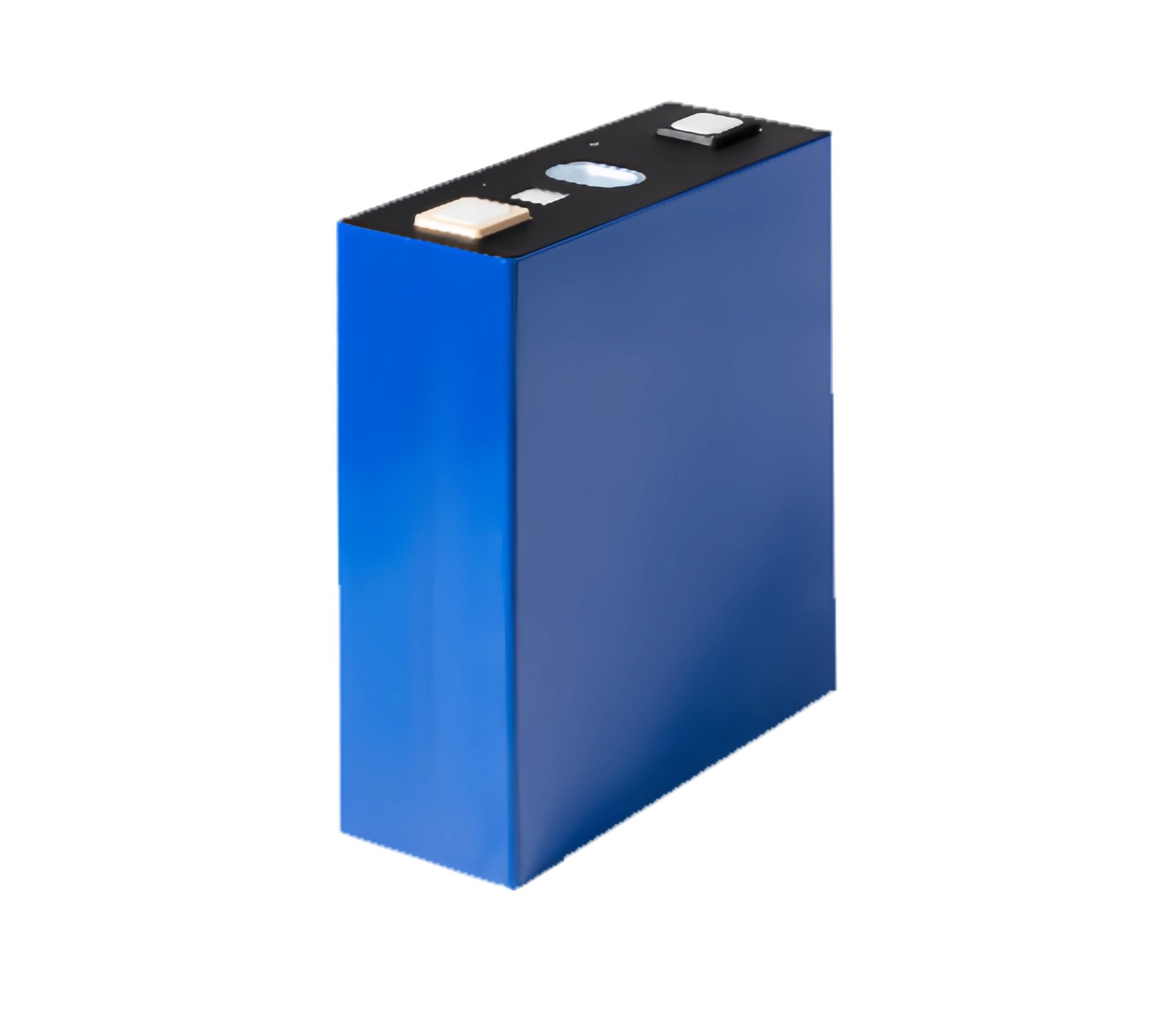

Ganfeng 280Ah 3.2V Grade A LiFePO4 Prismatic Battery Cell – 280Ah & 302Ah Series – 8000 Cycles Solar Storage or 175Wh/kg High-Density Power

Additional information

Capacity	280Ah

The Ganfeng 280Ah 302Ah LiFePO4 Battery Cell ESS BEV series represents the pinnacle of prismatic LFP engineering from a global leader in the lithium ecosystem. Utilizing the industry-standard 71 * 173 * 207 mm footprint, Ganfeng Lithium (GFB) provides three distinct specifications tailored to match your specific project needs—prioritizing either extreme longevity or maximum capacity.

Model Selection: Tailored for Storage & Mobility

📏 Unified Standard Form Factor: All versions of the Ganfeng 280Ah 302Ah LiFePO4 Battery Cell ESS BEV share the exact same physical dimensions. This allow system integrators to upgrade system capacity or cycle life without redesigning battery enclosures or busbar layouts.
⏳ 280Ah (The Storage Expert – 8,000 Cycles): Engineered for high-end residential and commercial energy storage, this model pushes the boundaries of durability. Rated for ≥8,000 cycles at 0.5P, it offers over 20 years of reliable service life, delivering the lowest Levelized Cost of Storage (LCOS).
🚀 302Ah (The Capacity King – 175 Wh/kg): The premium choice for high-performance EV conversions and space-constrained marine builds. By achieving a high energy density of 175 Wh/kg, it packs 22Ah more capacity into the same volume as the 280Ah model while supporting 1C charge/discharge rates.
⚡ 277Ah (The BEV Performance Version): Specifically optimized for electric vehicles, the 277Ah model balances fast turnaround with automotive-grade stability. Like the 302Ah version, it supports a sustained 1C discharge rate for high-torque demands.
🏅 Tier-1 Ganfeng Manufacturing & Free Sorting: As a global lithium leader, Ganfeng ensures strict consistency across all Grade A cells. To maximize your pack performance, DLCPO includes a free sorting service, ensuring each cell in your batch features matched internal resistance and voltage.

Ganfeng 280Ah 302Ah LiFePO4 Battery Cell ESS BEV | DLCPO

High-performance Ganfeng 280Ah 3.2V Grade A LiFePO4 Prismatic Battery Cell – 280Ah & 302Ah Series – 8000 Cycles Solar Storage or 175Wh/kg High-Density Power for industrial energy storage. DLCPO provides reliable LFP and LTO battery solutions with long cycle life and global certifications. Contact us for OEM/ODM service and wholesale price.

Product SKU: LFP71173207

Product Brand: GanFeng

Product Currency: USD

Product Price: 47

Price Valid Until: 2028-06-30

Product In-Stock: InStock

Editor's Rating:
4.99

🤝 Why Partner with DLCPO?

Tier-1 Grade A Cells: 100% authentic quality with intact factory QR codes for full lifecycle traceability.
Precision Cell Matching: Guaranteed consistency in Capacity, Voltage, and IR, supported by original manufacturer test reports.
Fresh-Batch Guarantee: Strictly zero-stock policy—all cells are sourced from the absolute latest production runs.
Custom Hardware Support: Laser-welded terminals and tailored busbar configurations to meet any project specification.
Global DDP Shipping: Hassle-free door-to-door logistics with all duties fully handled (excluding certain regions).

Product Tags: 280Ah ESS, 302Ah BEV, DLCPO, Ganfeng GFB, Prismatic LFP

Product specs

Pro Tip: When calculating ROI, the Cycle Life and Internal Resistance consistency are the true drivers of your “Price per kWh” over the system’s lifetime. All our cells undergo strict factory matching before dispatch.

Parameter	280Ah (ESS)	277Ah (BEV)	302Ah (BEV)
Application	Energy Storage	Electric Vehicle	Electric Vehicle
Nominal Capacity	280 Ah	277 Ah	302 Ah
Nominal Voltage	3.2 V
Charge/Discharge Rate	0.5P / 0.5P	1C / 1C	1C / 1C
Energy Density	160 Wh/kg	162 Wh/kg	175 Wh/kg
Cycle Life	8,000 Cycles	3,000 Cycles	3,000 Cycles
Dimensions (TWH)	71 * 173 * 207 mm
Shell Material	Aluminum
Sorting Service	Free (Included)

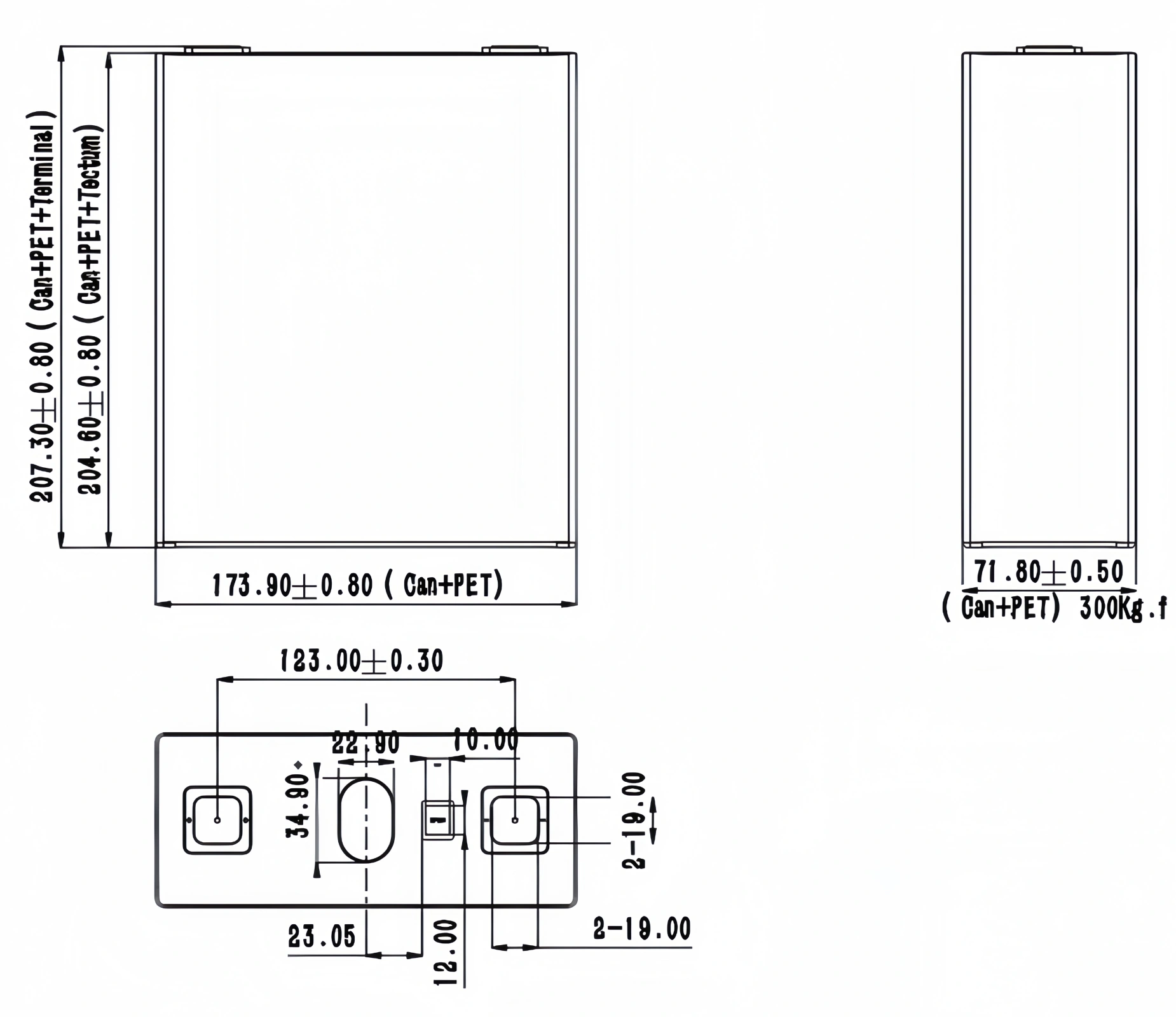

Drawing

Detailed physical blueprint for precise battery pack assembly and structural engineering.

Battery Applications

Solar & Renewable Energy

Residential and commercial ESS, off-grid solar systems, and micro-grids.

Electric Mobility (EV/AGV)

High-power cells for EVs, electric buses, forklifts, and automated guided vehicles.

Marine & Maritime Power

Reliable power for electric boats, yachts, and offshore energy storage.

Telecom & UPS Backup

Stable backup power for 5G base stations, data centers, and industrial UPS.

Safety Instructions & Usage Warnings

🔋 Standard Charging: Only use chargers specifically designed for LiFePO4/LTO chemistry. Do not exceed the maximum charge voltage and current specified in the datasheet.

🌡️ Temperature Range: Do not charge the battery in temperatures below 0°C (unless specified) or above 45°C. Discharge temperature must remain within -20°C to 60°C.

⚡ Short Circuit Prevention: Strictly avoid direct connection between the positive and negative terminals with any metal objects. Ensure terminals are insulated during assembly.

🛡️ BMS Requirement: These are raw cells. A high-quality Battery Management System (BMS) must be installed for over-charge, over-discharge, and thermal protection.

⚠️ Physical Protection: Do not puncture, crush, or drop the cells. If cells show leakage or deformation, stop using them immediately and contact DLCPO Support.

Lithium Battery Sourcing & Service FAQ

❓ Q1: Why should I choose DLCPO Power for my lithium battery projects?

💡 A: DLCPO Power is a professional, technology-driven distributor specialized in high-grade lithium cells. We are an authorized gateway to industry-leading brands including CALB, EVE, REPT, and GOTION. Unlike standard trading firms, we provide engineering-grade quality control, ensuring every cell is 100% tested and precision-matched for voltage and internal resistance before dispatch.

❓ Q2: Why don't you have battery stock in overseas warehouses?

💡 A: This is a deliberate strategic choice to protect your battery lifecycle. Batteries stored in overseas warehouses for months suffer from capacity degradation and voltage imbalance. At DLCPO, we operate on a “Zero Aged Stock” model. Every order is fulfilled via made-to-order production or allocated from the absolute latest factory batches. This guarantees you receive 100% fresh Grade A cells with peak chemical activity and perfectly matched performance.

❓ Q3: Can you provide customized terminals like M6 studs or connecting busbars?

💡 A: Yes, we provide full technical customization to simplify your assembly. Based on your project requirements, we can professionally process each batch by laser-welding specific terminals (such as standard M6 threaded studs) and providing perfectly matched connecting busbars. Our goal is to ensure your cells arrive “plug-and-play” ready for immediate pack integration.

❓ Q4: What is the standard ordering process and delivery terms (EXW/FOB/DDP)?

💡 A: We offer a streamlined B2B purchasing experience:

Consultation: Confirming cell models and technical specs via dlcpo@dlcpo.com.
Flexible Terms: We support EXW, FOB, and DDP shipping (available for most global regions, handling all customs and import taxes).
Fresh Allocation: Arranging the latest factory batch production.
Testing & Logistics: 100% matching test followed by UN38.3 compliant dangerous goods packaging and global dispatch.

❓ Q5: What support do you provide after the batteries are delivered?

💡 A: At DLCPO, we firmly believe that receiving payment and delivering goods is not the end of a transaction, but the true beginning of our service value. Our technical team provides continuous post-delivery support, including warranty assistance and BMS configuration guidance. We don’t just sell cells; we ensure your energy systems perform optimally for their entire service life.
