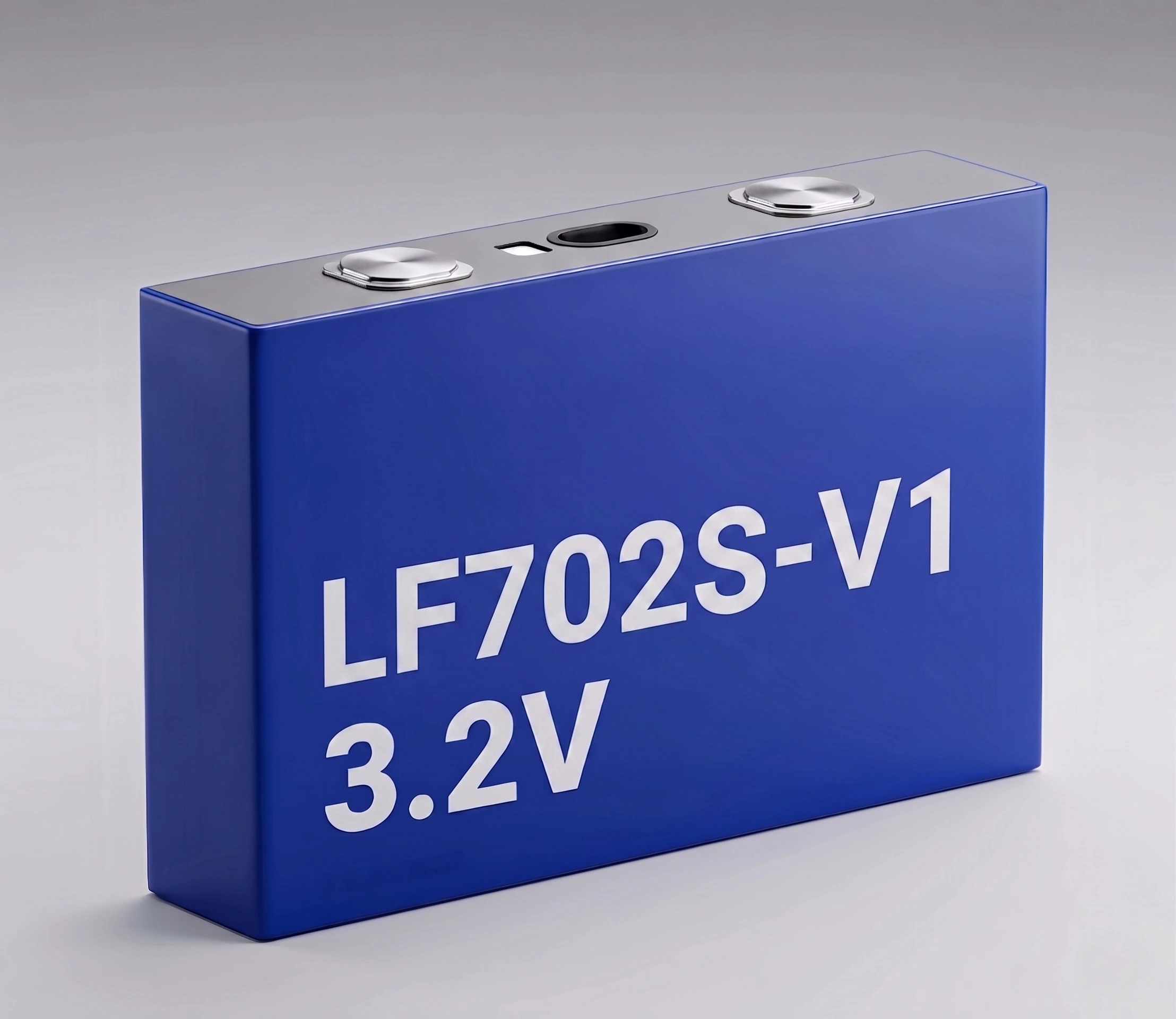

The newly unveiled EVE LF702S-V1 702Ah prismatic LFP cell represents the ultimate threshold in mega-capacity energy storage architectures. Delivering an extraordinary 2246.4Wh of single-cell nominal energy output, it allows project developers to restructure the layout density of modern utility-scale grid grids and high-voltage container arrays. Backed by elite B2B transparency, DLCPO provides a streamlined factory-direct supply corridor that redefines product freshness. We strictly reject aged warehouse stock or static shelf items; every consignment follows a meticulous built-to-order pipeline, guaranteeing you receive fresh cells with flawless capacity matching straight from the automated line.
Specially engineered to compress the Levelized Cost of Storage (LCOS) for international power station EPC firms, the EVE LF702S-V1 702Ah matrix halves total connection components count per container. This drastic component reduction significantly eliminates BMS monitoring complexity and interface cable losses. Operating with a low-internal-resistance chemical matrix, it delivers an astonishing performance profile of 10,000 deep cycles at 25°C (70% SOH) under standard 0.5P continuous power.
For engineering clusters managing highly scalable renewable grid arrays, these cells offer impeccable structural and volumetric density. Explore our specialized layout capabilities via DLCPO Industrial Custom LFP Battery Solutions.
Safety is the rigid baseline for commercial power station authorization. The cell integrates specialized multi-stage protective safety limits alongside precision mechanical pressure-relief vents to eliminate the risks of cascading thermal runaway propagation across multi-megawatt setups.
Every single fresh block is verified through brutal stress metrics (over-charge, over-discharge, crush, and external short circuit) to guarantee zero fire and zero explosion outcome. The entire production pedigree is fully compliant with the latest official GB/T 36276-2023 standard certification for electrical energy storage traction cells, removing regulatory compliance hurdles for global energy biddings.
By embedding a high-density 2246Wh Prismatic LFP Cell matrix, system integrators can deploy more total capacity within standard 20ft containerized cabinets. This optimizes volumetric density while drastically reducing structural steel footprint and busbar materials on site.
A fresh cell ensures that the chemical matrix hasn’t suffered premature capacity fading through warehouse neglect. Our factory-direct synchronization secures uniform state of health and identical internal parameters, which extends the overall life expectancy of the entire high-voltage pack array.
*Note: EVE LF702S-V1 solutions provided by DLCPO include fully matched technical logs. Continuous charging and pulse power must be governed by the system BMS based on precise temperature limitations to ensure maximum operational return on investment.
Pro Tip: When calculating ROI, the Cycle Life and Internal Resistance consistency are the true drivers of your “Price per kWh” over the system’s lifetime. All our cells undergo strict factory matching before dispatch.
| Parameter | Specification |
|---|---|
| Brand | EVE |
| Model Type | LF702S-V1 (Prismatic LFP Series) |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 702 Ah (at 0.5P/0.5P discharge, 25°C±2°C) |
| Nominal Voltage | 3.22 V |
| Operating Voltage Window | 2.5 V ~ 3.65 V (T > 0°C) | 2.0 V ~ 3.65 V (T ≤ 0°C) |
| Initial ACR (1kHz) | 0.10 ± 0.05 mΩ |
| Initial DCR (10s) | < 0.3 mΩ (at 50% SOC, 25°C) |
| Performance Rating | 0.5P Continuous Charge/Discharge Power |
| Dimensions (T*L*H) | 71.7 * 352.4 * 206.7 mm (Height 1 with Terminal) |
| Cell Weight | 11750 g ± 300 g (11.75 kg) |
| Energy Density Indicator | 2246.4 Wh (Total Single Cell Energy) |
| Cycle Life (25°C) | 10,000 Cycles (at 70% SOH, 0.5P Power) |
| Cycle Life (45°C) | 2,500 Cycles (80% SOH) | 4,000 Cycles (70% SOH) |
| Operating Temperature | Charge: 0~60°C | Discharge: -30~60°C |
| Testing Standards | GB/T 36276-2023 Compliance Verified |
| Sorting Service | Free (Included for elite group-matching consistency) |

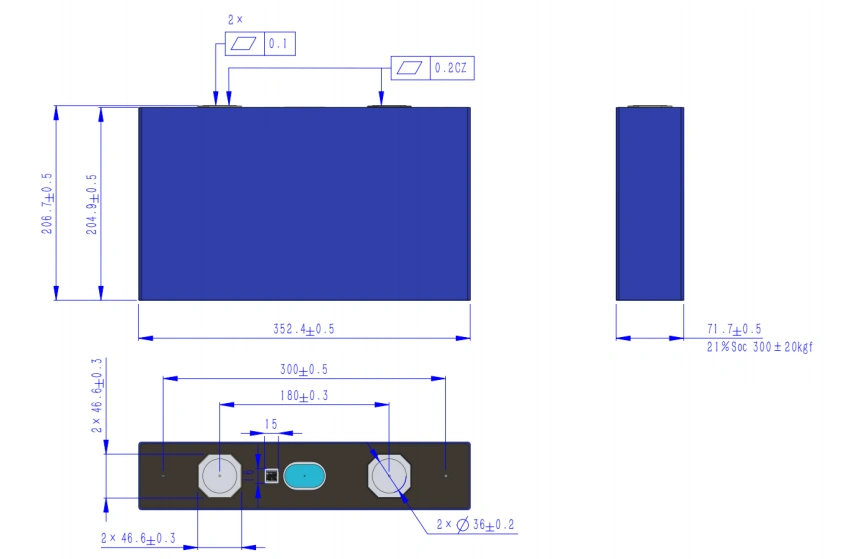

Detailed physical blueprint for precise battery pack assembly and structural engineering.
Residential and commercial ESS, off-grid solar systems, and micro-grids.
High-power cells for EVs, electric buses, forklifts, and automated guided vehicles.
Reliable power for electric boats, yachts, and offshore energy storage.
Stable backup power for 5G base stations, data centers, and industrial UPS.
🔋 Standard Charging: Only use chargers specifically designed for LiFePO4/LTO chemistry. Do not exceed the maximum charge voltage and current specified in the datasheet.
🌡️ Temperature Range: Do not charge the battery in temperatures below 0°C (unless specified) or above 45°C. Discharge temperature must remain within -20°C to 60°C.
⚡ Short Circuit Prevention: Strictly avoid direct connection between the positive and negative terminals with any metal objects. Ensure terminals are insulated during assembly.
🛡️ BMS Requirement: These are raw cells. A high-quality Battery Management System (BMS) must be installed for over-charge, over-discharge, and thermal protection.
⚠️ Physical Protection: Do not puncture, crush, or drop the cells. If cells show leakage or deformation, stop using them immediately and contact DLCPO Support.
💡 A: DLCPO Power is a professional, technology-driven distributor specialized in high-grade lithium cells. We are an authorized gateway to industry-leading brands including CALB, EVE, REPT, and GOTION. Unlike standard trading firms, we provide engineering-grade quality control, ensuring every cell is 100% tested and precision-matched for voltage and internal resistance before dispatch.
💡 A: This is a deliberate strategic choice to protect your battery lifecycle. Batteries stored in overseas warehouses for months suffer from capacity degradation and voltage imbalance. At DLCPO, we operate on a “Zero Aged Stock” model. Every order is fulfilled via made-to-order production or allocated from the absolute latest factory batches. This guarantees you receive 100% fresh Grade A cells with peak chemical activity and perfectly matched performance.
💡 A: Yes, we provide full technical customization to simplify your assembly. Based on your project requirements, we can professionally process each batch by laser-welding specific terminals (such as standard M6 threaded studs) and providing perfectly matched connecting busbars. Our goal is to ensure your cells arrive “plug-and-play” ready for immediate pack integration.
💡 A: We offer a streamlined B2B purchasing experience:
Consultation: Confirming cell models and technical specs via dlcpo@dlcpo.com.
Flexible Terms: We support EXW, FOB, and DDP shipping (available for most global regions, handling all customs and import taxes).
Fresh Allocation: Arranging the latest factory batch production.
Testing & Logistics: 100% matching test followed by UN38.3 compliant dangerous goods packaging and global dispatch.
💡 A: At DLCPO, we firmly believe that receiving payment and delivering goods is not the end of a transaction, but the true beginning of our service value. Our technical team provides continuous post-delivery support, including warranty assistance and BMS configuration guidance. We don’t just sell cells; we ensure your energy systems perform optimally for their entire service life.
