| Capacity |
|---|

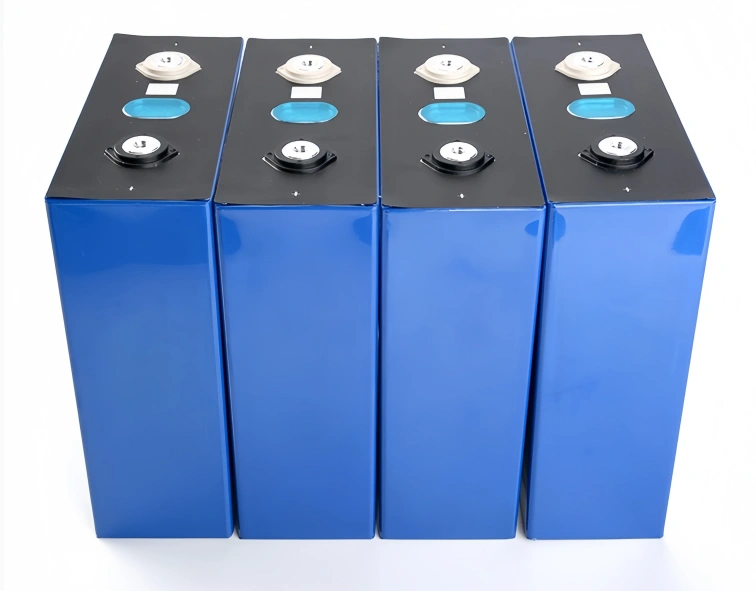

The newly launched EVE LF356L-V1 356.25Ah prismatic cell stands at the forefront of grid-scale energy storage innovation. Delivering a verified 1140Wh of nominal energy from a single ultra-compact cell platform, it represents the ideal blueprint for modern utility ESS and demanding commercial power microgrids. Aligned with strict B2B quality principles, DLCPO provides a reliable, direct factory-direct supply channel that prioritizes absolute product freshness. We reject aged warehouse stock entirely; every batch follows a precision built-to-order pipeline to ensure you receive fresh cells with optimal chemical health and flawless voltage grouping.
Engineered specifically to minimize the Levelized Cost of Storage (LCOS) for international power station EPCs and system integrators, this high-capacity cell eliminates the layout footprint and connection overhead caused by smaller legacy blocks. With its advanced multi-tab design, it achieves a market-leading operational life of ≥8,000 cycles at 25°C (70% SOH) under standard 0.5P continuous power.
For engineering groups executing high-voltage scalable pack integration, these cells seamlessly adapt to custom multi-serial configurations. Learn more about our engineering capabilities by exploring DLCPO Industrial Custom LFP Battery Pack Solutions.
Safety is the non-negotiable threshold for utility grid deployment. The cell features custom dual mechanical pressure-relief vents to perfectly mitigate thermal runaway propagation across multi-megawatt configurations.
Every single cell is certified to pass brutal multi-point safety tests (over-charge, over-discharge, crush, and external short circuit) with zero fire and zero explosion risks. The entire manufacturing pedigree is fully validated under the latest official GB/T 36276-2023 standard certification for electrical energy storage, clearing all regulatory compliance hurdles for procurement teams in North America, Europe, and Asia.
*Note: EVE LF356L-V1 solutions provided by DLCPO include comprehensive factory testing data logs. Power profiles are dynamically managed via the system BMS to guarantee exceptional return on investment for large-scale commercial bidding arrays.
Pro Tip: When calculating ROI, the Cycle Life and Internal Resistance consistency are the true drivers of your “Price per kWh” over the system’s lifetime. All our cells undergo strict factory matching before dispatch.
| Parameter | Specification |
|---|---|
| Brand | EVE |
| Model Type | LF356L-V1 (Prismatic Storage Series) |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 356.25 Ah (at 0.5P/0.5P, 25°C±2°C) |
| Nominal Voltage | 3.2 V |
| Operating Voltage | 2.5 V ~ 3.65 V (T > 0°C) | 2.0 V ~ 3.65 V (T ≤ 0°C) |
| AC Impedance (1kHz) | 0.15 mΩ ± 0.05 mΩ |
| Performance Rating | 570W Standard Power / 1140W Max Continuous |
| Dimensions (T*L*H) | 72.0 * 186.6 * 211.6 mm (Height 1 with Terminal) |
| Weight | 6220 g ± 150 g (6.22 kg) |
| Energy Density | 1140 Wh (Total Energy per Cell) |
| Cycle Life | ≥ 8,000 Cycles (at 25°C, 70% SOH) |
| Operating Temperature | Charge: 0~60°C | Discharge: -30~60°C |
| Sorting Service | Free (Included for elite group-matching consistency) |

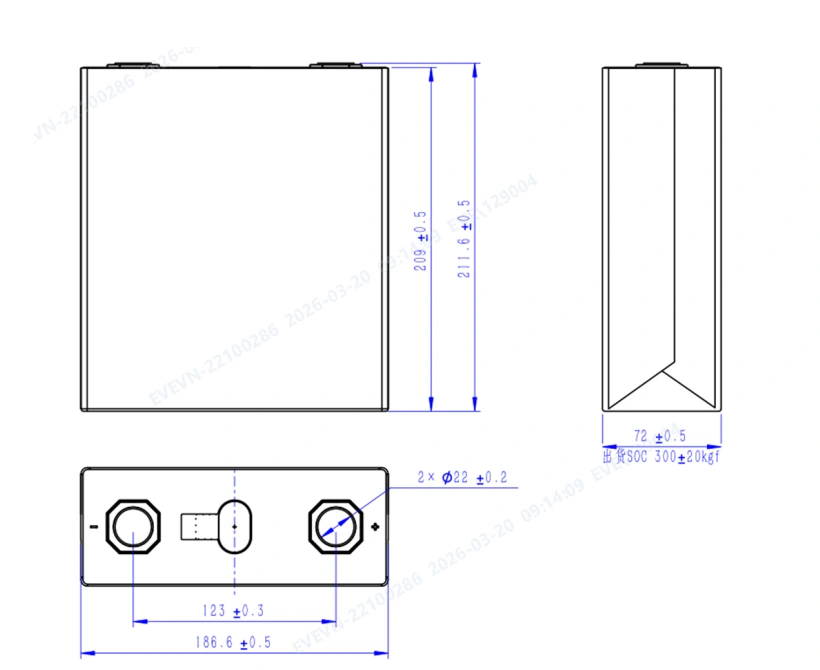

Detailed physical blueprint for precise battery pack assembly and structural engineering.
Residential and commercial ESS, off-grid solar systems, and micro-grids.
High-power cells for EVs, electric buses, forklifts, and automated guided vehicles.
Reliable power for electric boats, yachts, and offshore energy storage.
Stable backup power for 5G base stations, data centers, and industrial UPS.
🔋 Standard Charging: Only use chargers specifically designed for LiFePO4/LTO chemistry. Do not exceed the maximum charge voltage and current specified in the datasheet.
🌡️ Temperature Range: Do not charge the battery in temperatures below 0°C (unless specified) or above 45°C. Discharge temperature must remain within -20°C to 60°C.
⚡ Short Circuit Prevention: Strictly avoid direct connection between the positive and negative terminals with any metal objects. Ensure terminals are insulated during assembly.
🛡️ BMS Requirement: These are raw cells. A high-quality Battery Management System (BMS) must be installed for over-charge, over-discharge, and thermal protection.
⚠️ Physical Protection: Do not puncture, crush, or drop the cells. If cells show leakage or deformation, stop using them immediately and contact DLCPO Support.
💡 A: DLCPO Power is a professional, technology-driven distributor specialized in high-grade lithium cells. We are an authorized gateway to industry-leading brands including CALB, EVE, REPT, and GOTION. Unlike standard trading firms, we provide engineering-grade quality control, ensuring every cell is 100% tested and precision-matched for voltage and internal resistance before dispatch.
💡 A: This is a deliberate strategic choice to protect your battery lifecycle. Batteries stored in overseas warehouses for months suffer from capacity degradation and voltage imbalance. At DLCPO, we operate on a “Zero Aged Stock” model. Every order is fulfilled via made-to-order production or allocated from the absolute latest factory batches. This guarantees you receive 100% fresh Grade A cells with peak chemical activity and perfectly matched performance.
💡 A: Yes, we provide full technical customization to simplify your assembly. Based on your project requirements, we can professionally process each batch by laser-welding specific terminals (such as standard M6 threaded studs) and providing perfectly matched connecting busbars. Our goal is to ensure your cells arrive “plug-and-play” ready for immediate pack integration.
💡 A: We offer a streamlined B2B purchasing experience:
Consultation: Confirming cell models and technical specs via dlcpo@dlcpo.com.
Flexible Terms: We support EXW, FOB, and DDP shipping (available for most global regions, handling all customs and import taxes).
Fresh Allocation: Arranging the latest factory batch production.
Testing & Logistics: 100% matching test followed by UN38.3 compliant dangerous goods packaging and global dispatch.
💡 A: At DLCPO, we firmly believe that receiving payment and delivering goods is not the end of a transaction, but the true beginning of our service value. Our technical team provides continuous post-delivery support, including warranty assistance and BMS configuration guidance. We don’t just sell cells; we ensure your energy systems perform optimally for their entire service life.
Explore More 356.25Ah Options
