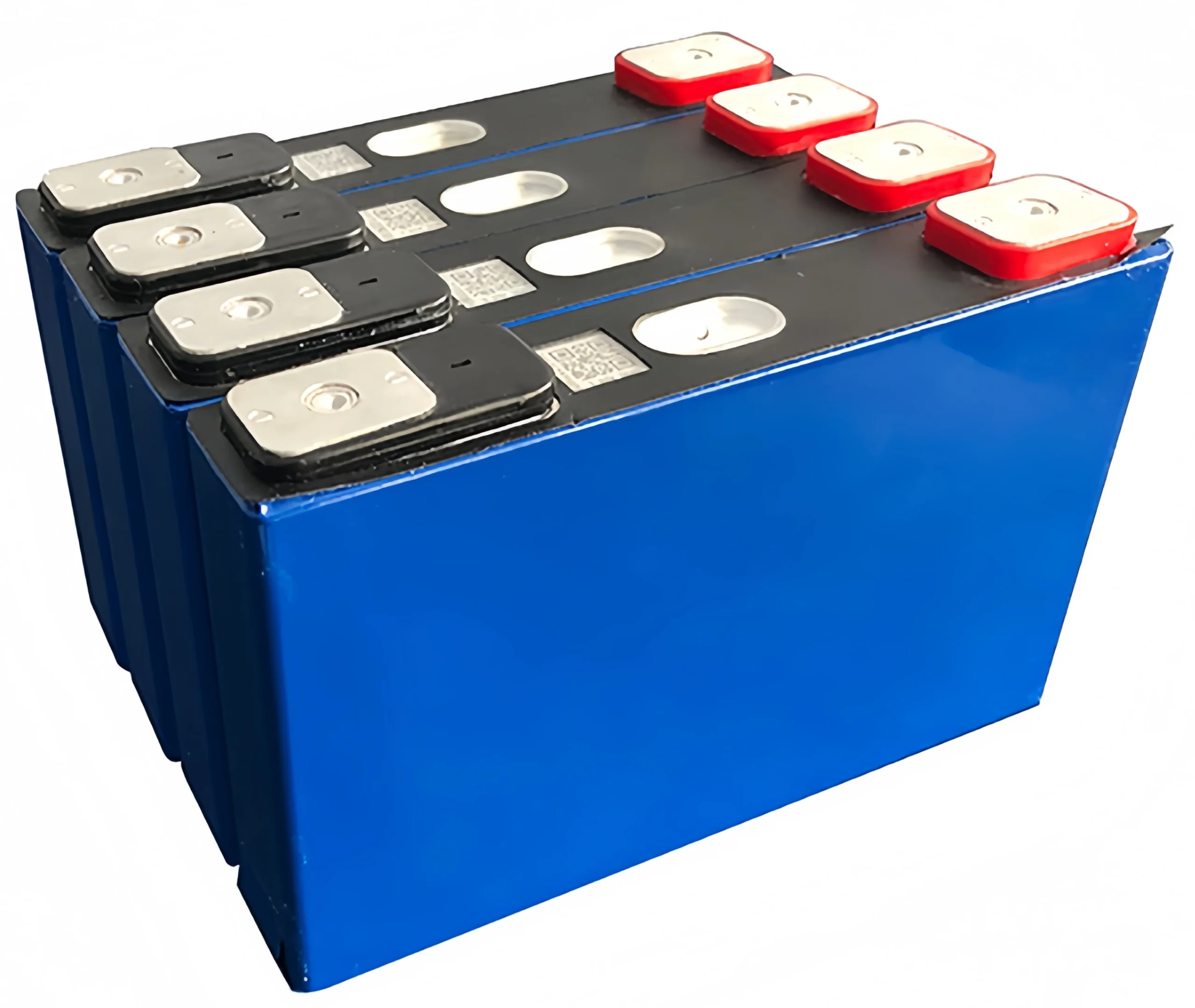

The CATL 50Ah NCM Battery Cell Prismatic Ternary is a premium energy solution engineered for extreme efficiency and power-to-weight ratio. Manufactured by CATL, the global pioneer in Tier-1 lithium technology, this high-performance cell utilizes a precise blend of Nickel, Cobalt, and Manganese (NCM). Unlike standard LiFePO4 cells, this advanced chemistry delivers a higher nominal voltage (3.65V-3.7V) and significantly greater energy density, making it the preferred choice for applications where weight and space are critical constraints.
High-performance CATL 50Ah 3.7V Grade A NCM Prismatic Battery Cell – High Power 3C Discharge – Lightweight Lithium Ternary for Electric Motorcycles & Racing Karts for industrial energy storage. DLCPO provides reliable LFP and LTO battery solutions with long cycle life and global certifications. Contact us for OEM/ODM service and wholesale price.
Product SKU: 50Ah
Product Brand: CATL
Product Currency: USD
Product Price: 37
Price Valid Until: 2028-05-31
Product In-Stock: InStock
Pro Tip: When calculating ROI, the Cycle Life and Internal Resistance consistency are the true drivers of your “Price per kWh” over the system’s lifetime. All our cells undergo strict factory matching before dispatch.
| Parameter | Specification |
|---|---|
| Brand | CATL |
| Model | 50Ah (NCM Prismatic) |
| Chemistry | NCM (Lithium Ternary) |
| Nominal Capacity | 50Ah |
| Nominal Voltage | 3.65V |
| Operating Voltage | 2.75V ~ 4.2V |
| Internal Resistance | ≤ 0.8mΩ |
| Max. Continuous Discharge | 150A (3C) |
| Dimensions (H*W*T) | 97mm * 148mm * 27mm |
| Weight | 0.86kg ± 0.05kg |

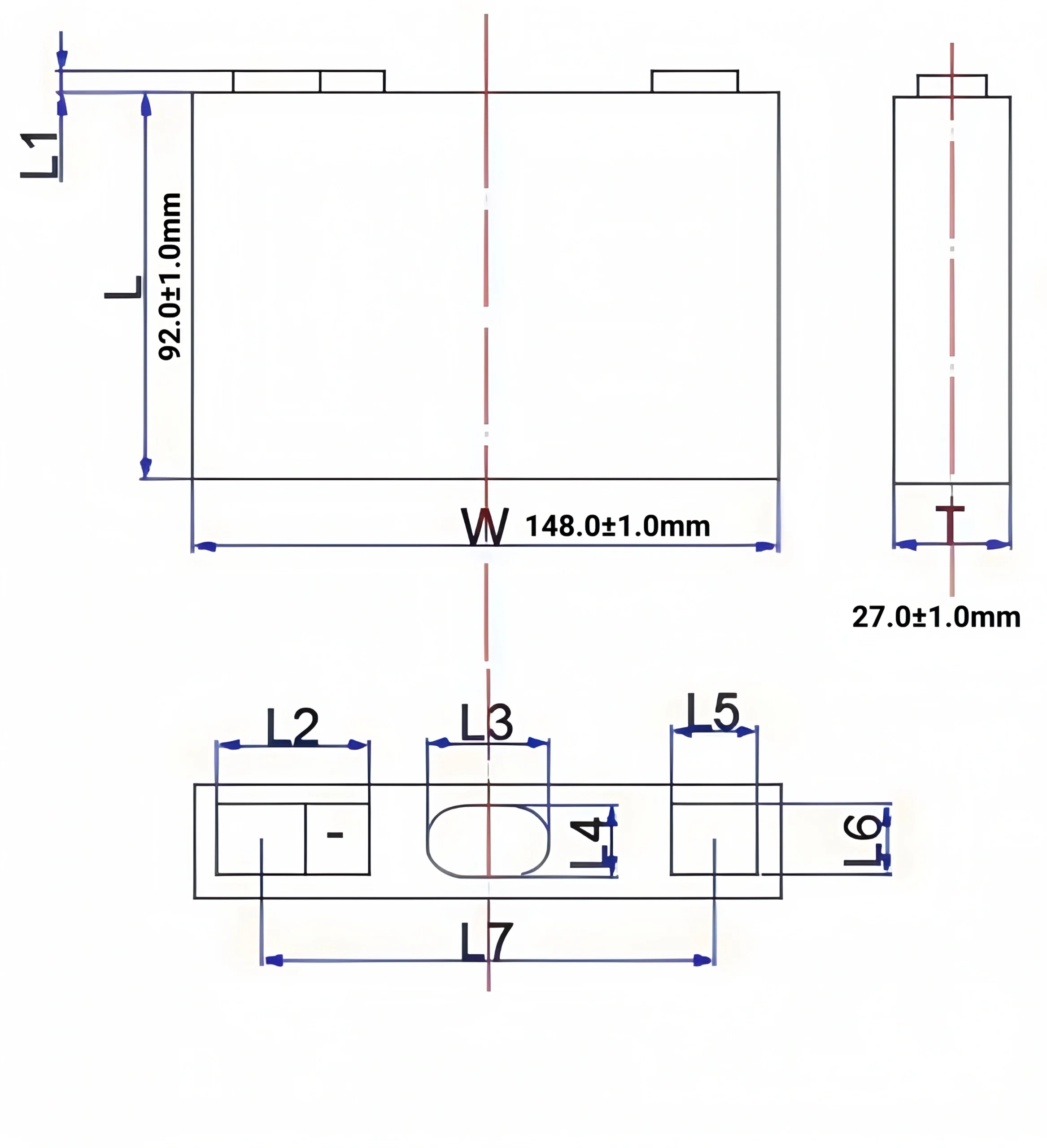

Detailed physical blueprint for precise battery pack assembly and structural engineering.
Residential and commercial ESS, off-grid solar systems, and micro-grids.
High-power cells for EVs, electric buses, forklifts, and automated guided vehicles.
Reliable power for electric boats, yachts, and offshore energy storage.
Stable backup power for 5G base stations, data centers, and industrial UPS.
🔋 Standard Charging: Only use chargers specifically designed for LiFePO4/LTO chemistry. Do not exceed the maximum charge voltage and current specified in the datasheet.
🌡️ Temperature Range: Do not charge the battery in temperatures below 0°C (unless specified) or above 45°C. Discharge temperature must remain within -20°C to 60°C.
⚡ Short Circuit Prevention: Strictly avoid direct connection between the positive and negative terminals with any metal objects. Ensure terminals are insulated during assembly.
🛡️ BMS Requirement: These are raw cells. A high-quality Battery Management System (BMS) must be installed for over-charge, over-discharge, and thermal protection.
⚠️ Physical Protection: Do not puncture, crush, or drop the cells. If cells show leakage or deformation, stop using them immediately and contact DLCPO Support.
💡 A: DLCPO Power is a professional, technology-driven distributor specialized in high-grade lithium cells. We are an authorized gateway to industry-leading brands including CALB, EVE, REPT, and GOTION. Unlike standard trading firms, we provide engineering-grade quality control, ensuring every cell is 100% tested and precision-matched for voltage and internal resistance before dispatch.
💡 A: This is a deliberate strategic choice to protect your battery lifecycle. Batteries stored in overseas warehouses for months suffer from capacity degradation and voltage imbalance. At DLCPO, we operate on a “Zero Aged Stock” model. Every order is fulfilled via made-to-order production or allocated from the absolute latest factory batches. This guarantees you receive 100% fresh Grade A cells with peak chemical activity and perfectly matched performance.
💡 A: Yes, we provide full technical customization to simplify your assembly. Based on your project requirements, we can professionally process each batch by laser-welding specific terminals (such as standard M6 threaded studs) and providing perfectly matched connecting busbars. Our goal is to ensure your cells arrive “plug-and-play” ready for immediate pack integration.
