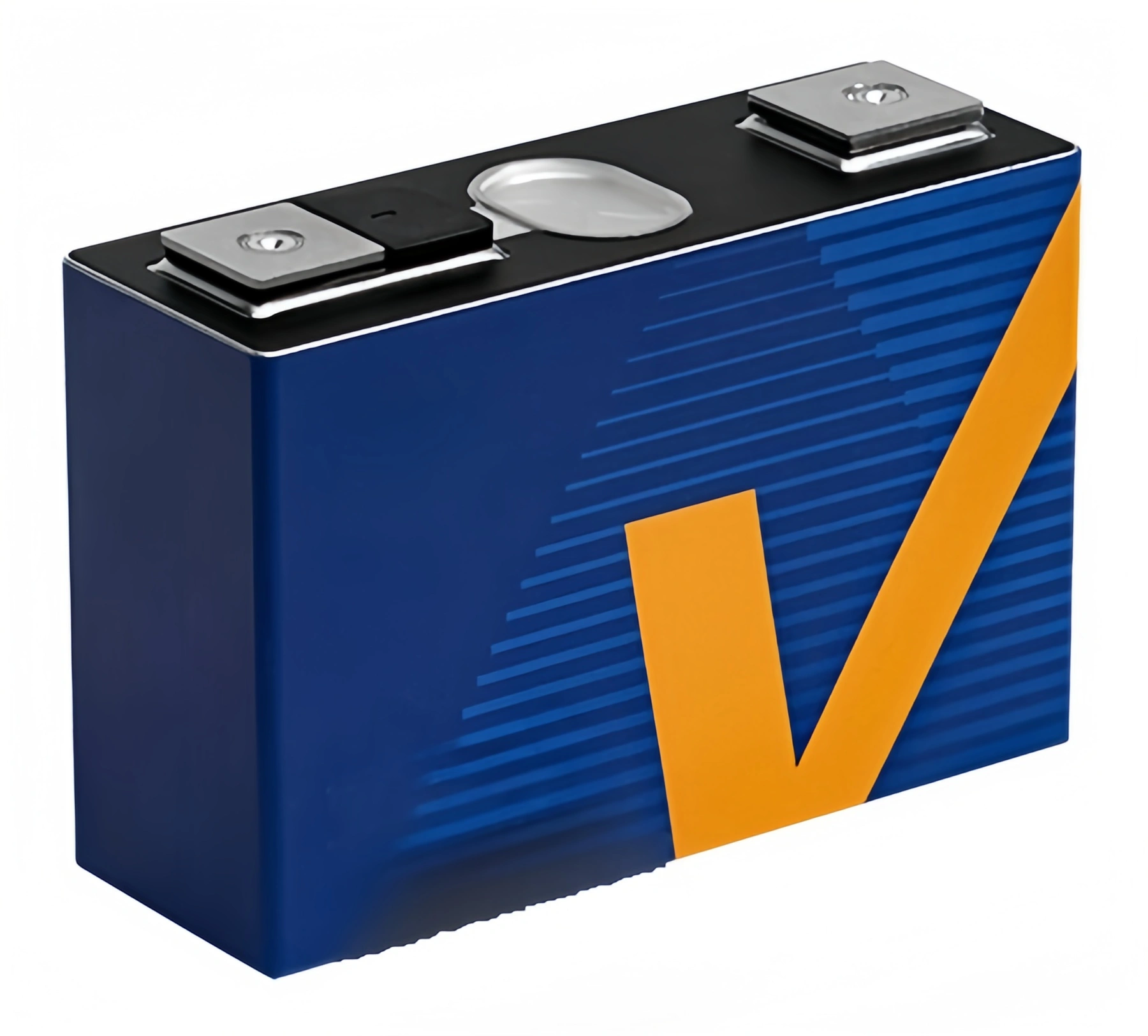

SVOLT MEB-134Ah: Powering the Standard
The SVOLT MEB-134Ah is a precision-engineered prismatic cell designed to align with the MEB (Modular Electric Drive) platform dimensions. Measuring 44mm×220mm×112mm, it offers a specific form factor that allows for seamless integration into standard 220mm-class battery modules widely used in the electric vehicle industry.
2.2C High-Rate Discharge: This cell is not limited to static storage. With a continuous discharge rating of 2.2C, it can deliver approximately 295Amps of sustained current. This makes it an ideal choice for propulsion systems in EVs and PHEVs requiring rapid acceleration.
Optimized Dimensions ($220\text{mm}$ Length): Unlike standard VDA cells ($148\text{mm}$ length), the $220\text{mm}$ length of the MEB-134Ah allows for higher capacity per cell and fewer connections in wide-format battery packs, simplifying assembly and improving volumetric energy density.
Safety & Longevity: Built with SVOLT’s advanced LiFePO4 chemistry, it offers a cycle life of 3,000 cycles. This provides a significantly longer service life and higher thermal stability compared to NCM cells of similar dimensions.
✅ Authentic Grade A Quality: We supply 100% genuine SVOLT MEB-134Ah cells directly from the production batches. Each cell is verified for capacity and ultra-low internal resistance (≤0.35mΩ) to ensure top-tier performance.
🎯 Precision Module Matching: Building a professional module requires balance. DLCPO provides a Free Sorting Service, grouping cells by voltage and impedance so you can assemble a perfectly balanced pack right out of the box.
🌐 Specialized Global Logistics: We are experts in the complex logistics of shipping large-format lithium batteries. Our DDP (Delivered Duty Paid) service to the USA, Europe, and Brazil manages all customs and dangerous goods protocols for a hassle-free delivery.
It generally refers to the “Modular Electric Drive Matrix” standard. For this specific cell, it signifies compatibility with the 220mm length dimension common to battery modules used in this high-performance ecosystem.
A: Only if the NCM cells share the same physical dimensions (44 × 220×112mm) AND you update your BMS. Remember that LFP voltage (3.2V) is lower than NCM (3.7V), so you may need more cells in series to achieve the same total pack voltage.
At a 2.2C rating, the MEB-134Ah can safely discharge at roughly 295A continuously, provided your system has appropriate cooling and thermal management in place.
The SVOLT MEB-134Ah is a specialized LiFePO4 prismatic cell designed for the MEB platform standard. With dimensions of 44x220x112mm and a powerful 2.2C discharge rating, it offers a perfect balance of safety, power, and compatibility for modern electric vehicle modules.
| Parameter | Specification |
|---|---|
| Brand | SVOLT |
| Model Type | MEB-134Ah 2.2C |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 134 Ah |
| Nominal Voltage | 3.2 V |
| Operating Voltage | 2.0V ~ 3.65V |
| AC Impedance (1kHz) | ≤ 0.35 mΩ |
| Performance Rating | 2.2C Continuous Discharge |

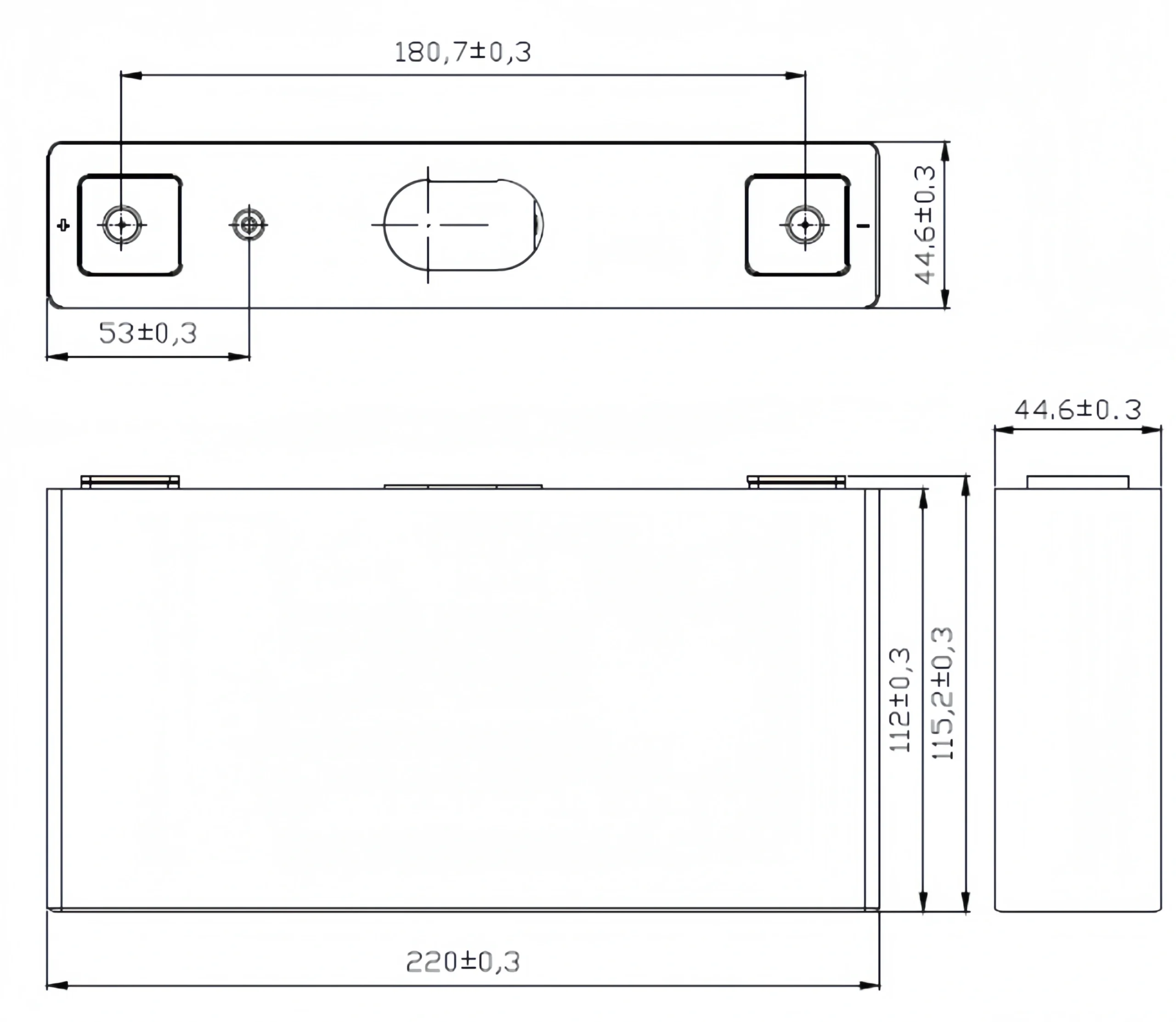

| Dimensions (T*W*H) | 44 * 220 * 112 mm |
| Weight | 2420g ± 30g |
| Cycle Life | ≥ 3,000 Cycles |
| Operating Temperature | Charge: 0~45°C | Discharge: -20~50°C |
| Sorting Service | Free (Included) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: This cell uses a specific MEB size (220mm long). Ensure your module hardware is compatible. 2.2C high-power rating requires robust busbar connections.
