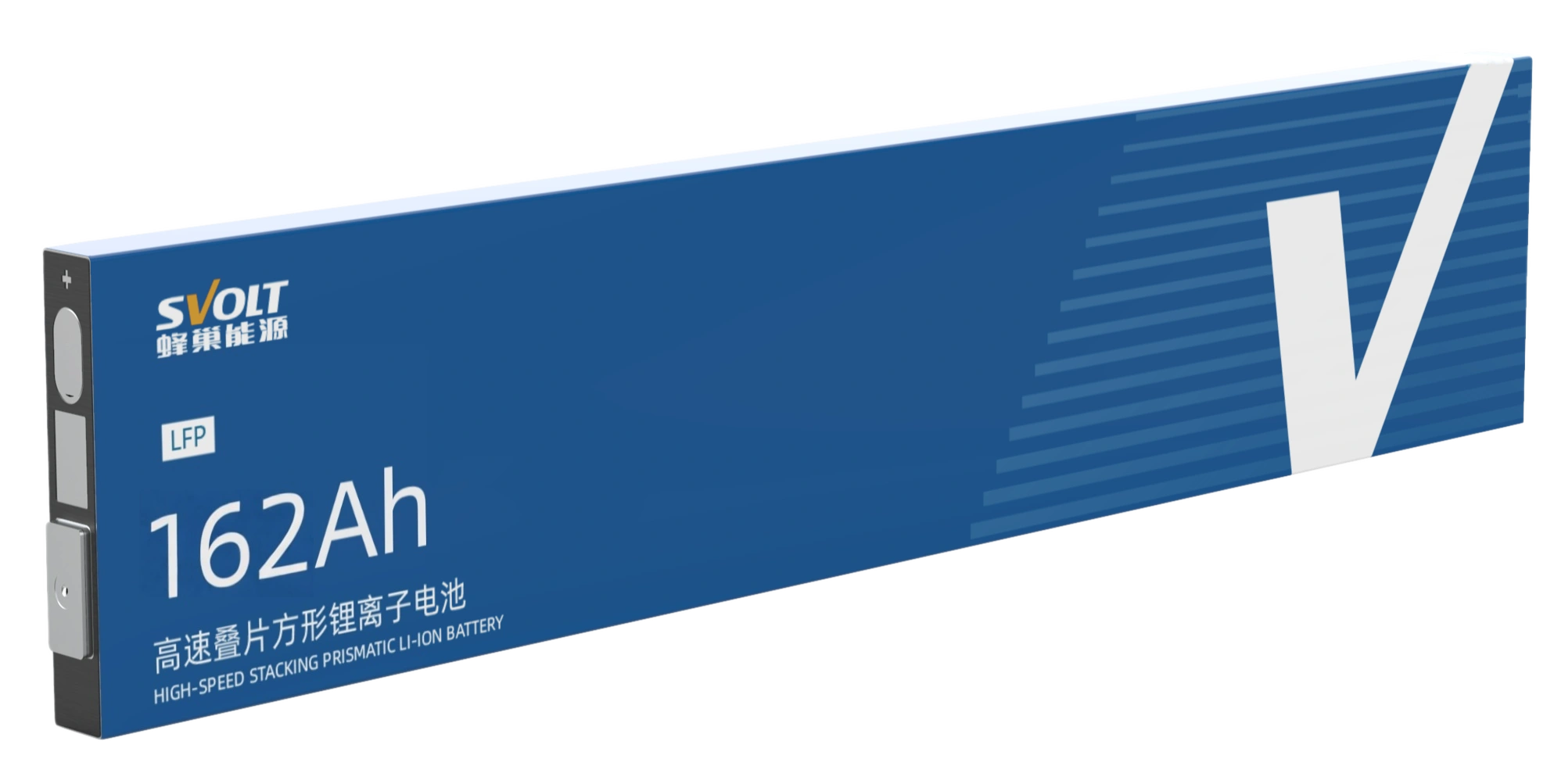

SVOLT L600-162Ah: The Pinnacle of Blade Battery Efficiency The SVOLT L600-162Ah is a state-of-the-art Blade Battery cell that redefines energy density through advanced High-Speed Stacking Technology. Manufactured by SVOLT Energy, this 162Ah LiFePO4 cell is engineered for high-performance integration, offering superior mechanical strength and cooling efficiency. Its unique elongated “Long Blade” architecture allows system integrators to eliminate bulky modules, achieving higher system-level energy density.
📐 Ultra-Slim 18.2mm Profile: The remarkably thin design enables extremely compact battery pack builds, perfect for under-chassis EV integration and sleek, wall-mounted energy storage walls.
🛡️ Superior Thermal Safety: The large surface area of the 574mm length significantly improves heat dissipation, ensuring stable performance even under heavy loads in large-scale installations.
⚡ Advanced Stacking Architecture: The high-speed stacking process minimizes internal stress and heat buildup compared to wound cells, resulting in exceptional cycle life and enhanced safety.
💎 Verified Grade A Quality: DLCPO ensures every cell is freshly produced with original factory QR codes, guaranteeing zero chemical aging and full traceable history for professional B2B projects.
✅ Verified Direct-from-Factory Freshness: We supply 100% genuine SVOLT cells sourced directly from the production line, ensuring your project receives cells with the highest chemical activity.
🎯 Precision Technical Grouping: Our engineering team performs rigorous cell matching by voltage and internal resistance for every B2B order, delivering perfectly balanced strings for maximum reliability.
🌐 Reliable Global B2B Logistics: DLCPO specializes in secure DDP shipping for large-format lithium cells to the USA, EU, and Brazil, managing all safety and customs compliance for industrial projects.
The primary advantage is the extreme space efficiency. With a length of 574mm and a thickness of only 18.2mm, these cells allow for “Cell-to-Pack” (CTP) designs. This eliminates up to 40% of the non-active structural parts found in traditional module-based packs, significantly increasing the overall energy density of the final system.
SVOLT’s high-speed stacking process creates an internal structure that is more resistant to the physical expansion and contraction that occurs during charging cycles. This lead to a more uniform distribution of current and temperature across the entire surface of the cell, which leads to better safety and longer capacity retention over time.
The elongated blade shape provides a much larger surface-area-to-volume ratio compared to thick prismatic cells. This allows for faster heat dissipation and more effective cooling strategies in high-power applications, ensuring the 162Ah cell maintains an optimal temperature even during rapid charge or discharge events.
The SVOLT L600-162Ah is a flagship “3C Fast Charge” Blade Battery. Engineered for 800V high-voltage EV platforms, it boasts an industry-leading energy density of >190Wh/kg and the capability to charge from 10-80% in just 15 minutes.
| Parameter | Specification |
|---|---|
| Brand | SVOLT |
| Model Type | L600-162Ah (3C Fast Charge) |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 162 Ah |
| Rated Voltage | 3.21 V (at 1/3C) |
| Voltage Range | 2.0V ~ 3.65V |
| Charging Time (10-80%) | 15 Minutes (3C Rate) |
| Performance Rating | 3C Continuous Discharge |

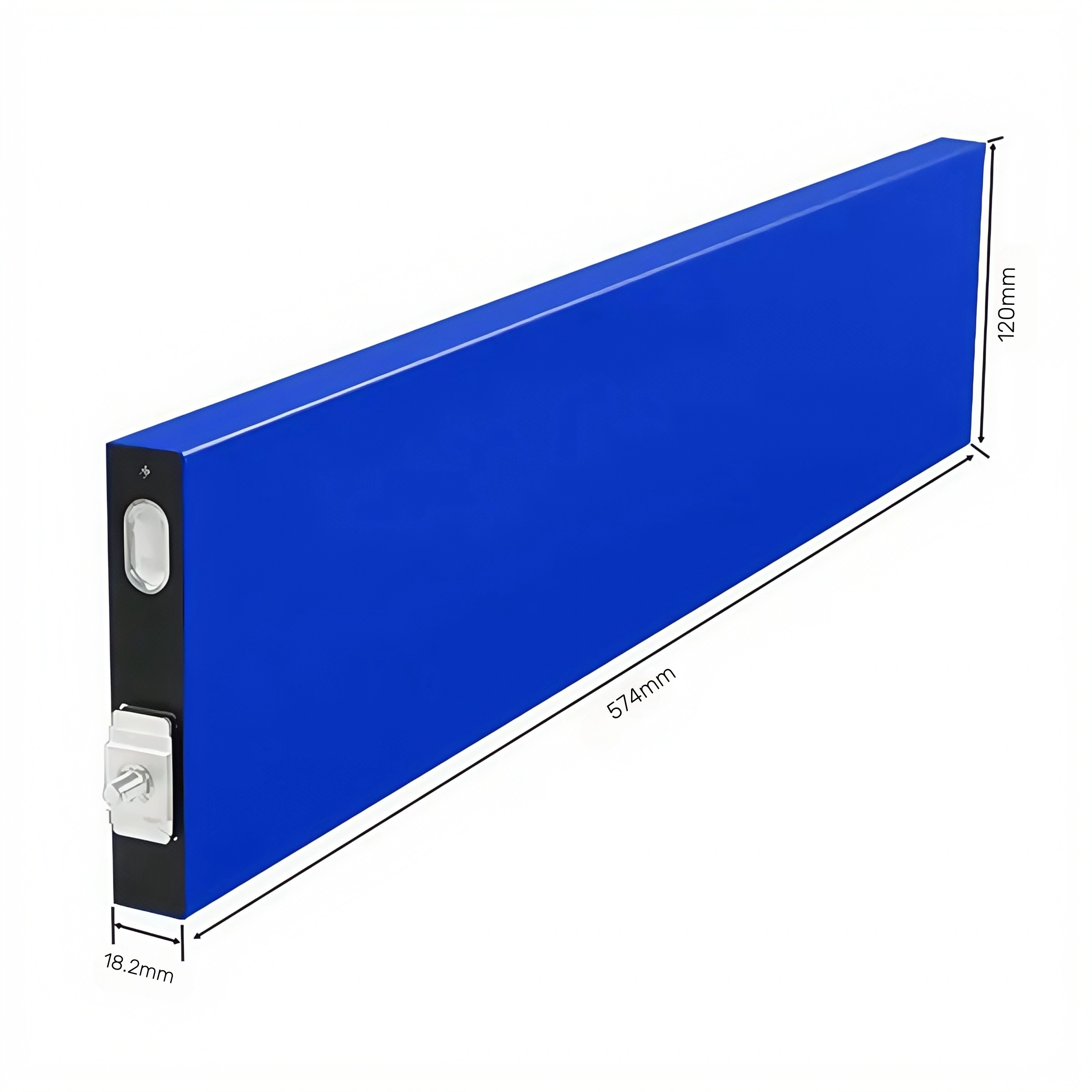

| Dimensions (T*L*H) | 18.2 * 574 * 120 mm |
| Weight | Approx. 2.74kg |
| Energy Density | > 190 Wh/kg |
| Cycle Life | ≥ 2,000 Cycles (3~100% SOC) |
| Sorting Service | Free (Included) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: This is a 3C Fast Charge cell. Requires liquid cooling or advanced thermal management for continuous high-rate operation. Handle 574mm length with care.
