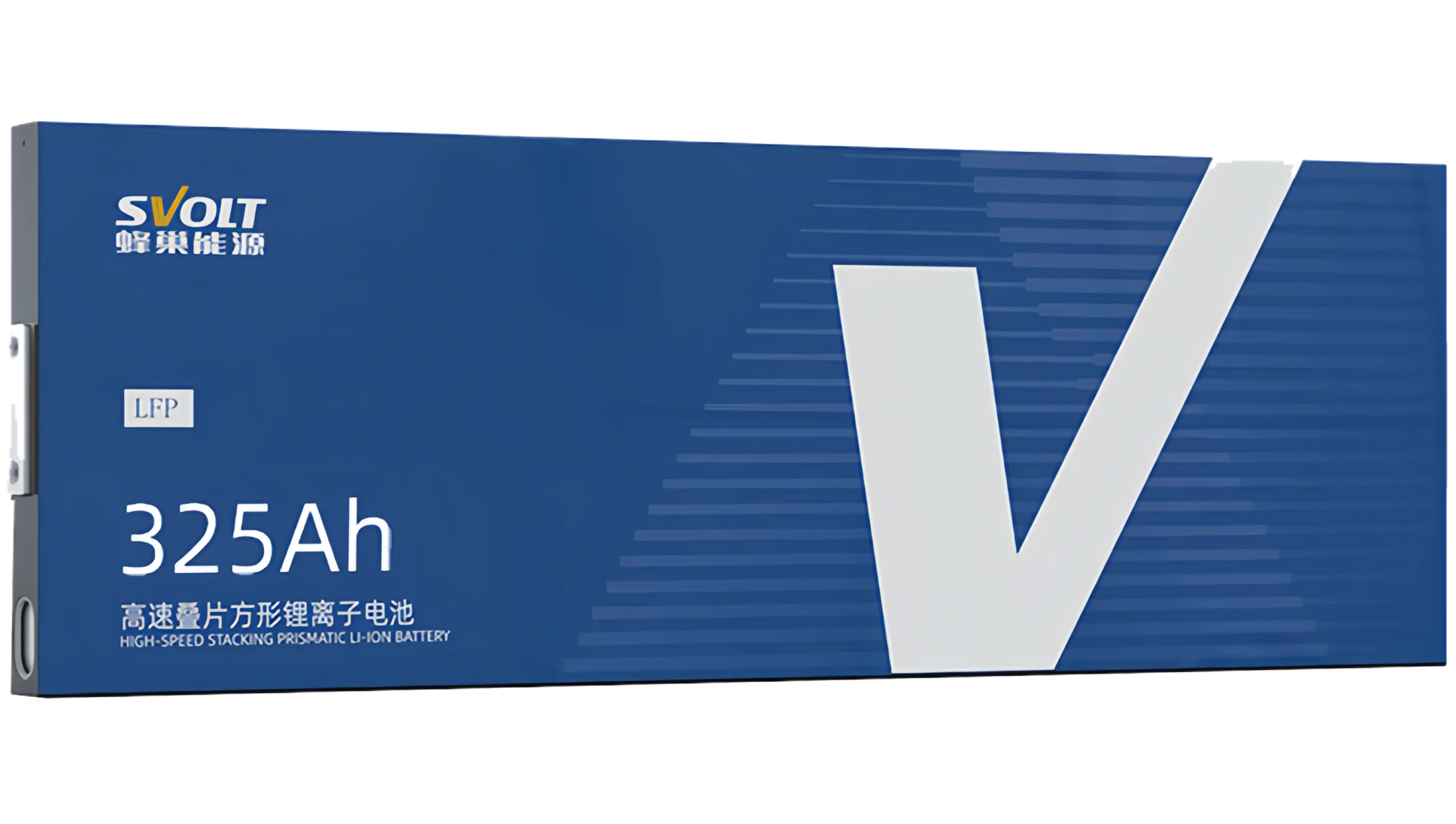

SVOLT L500-325Ah 2.2C: Power Meets Capacity
The SVOLT L500-325Ah is a technological marvel designed for the high-performance segment of the energy market. It utilizes the same physical form factor ($26 \times 500 \times 215\text{ mm}$) as standard storage cells but features a completely different internal architecture optimized for high-current delivery and lower resistance.
Discharge Rate (2.2C vs 0.5C): While storage models are designed for steady discharge, the 325Ah model is built to sprint. Rated for 2.2C, it delivers the massive current surges required for EV acceleration and industrial heavy lifting.
Ultra-Low Impedance (≤0.20Ω): To handle high currents without overheating, this cell features an exceptionally low internal resistance of ≤0.20Ω. This ensures high efficiency even under extreme loads.
Cycle Life (6,500 vs 15,000): Optimization for high power comes with a trade-off. The 325Ah cell offers a respectable 6,500+ cycles, which is excellent for traction/EV use, whereas the 350Ah version is optimized for extreme 20-year static storage.
✅ Expert Selection: We accurately distinguish between the “Power” and “Storage” versions of the L500 series. DLCPO ensures you receive the exact model suited for your application, whether you need burst power or long-term longevity.
🎯 Precision Sorting: High-power packs require impeccable balance. We provide a Free Sorting Service, matching cells by voltage and internal resistance to ensure safety and consistent performance in your high-current battery strings.
🌐 Global Heavy Freight: We specialize in the complex logistics of shipping large blade batteries. DLCPO offers comprehensive DDP (Delivered Duty Paid) shipping to the USA, Europe, and Brazil, managing all Class 9 dangerous goods protocols.
No. Although they look identical in size, their internal chemistry, resistance, and discharge curves are different. Mixing them will lead to severe imbalance and potential system failure.
Rated at 2.2C, the L500-325Ah can theoretically support continuous discharge currents of up to 715 Amps, provided appropriate thermal management and cooling are applied to the battery system.
Yes, it will perform excellently, but it may be considered “overkill” in terms of power performance. If your application does not require 2.2C discharge, the SVOLT L500-350Ah is usually a more cost-effective choice for stationary residential storage.
The SVOLT L500-325Ah is the “High Power” version of the L500 Blade series. While sharing the same dimensions as the 350Ah storage cell, this 2.2C rated cell offers ultra-low impedance (≤0.2mΩ) and high discharge capability, making it perfect for traction and high-performance energy storage.
| Parameter | Specification |
|---|---|
| Brand | SVOLT |
| Model Type | L500-325Ah 2.2C (High Power) |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 325 Ah |
| Nominal Voltage | 3.2 V |
| Operating Voltage | 2.0V ~ 3.65V |
| AC Impedance (1kHz) | ≤ 0.20 mΩ |
| Performance Rating | 2.2C Continuous Discharge |

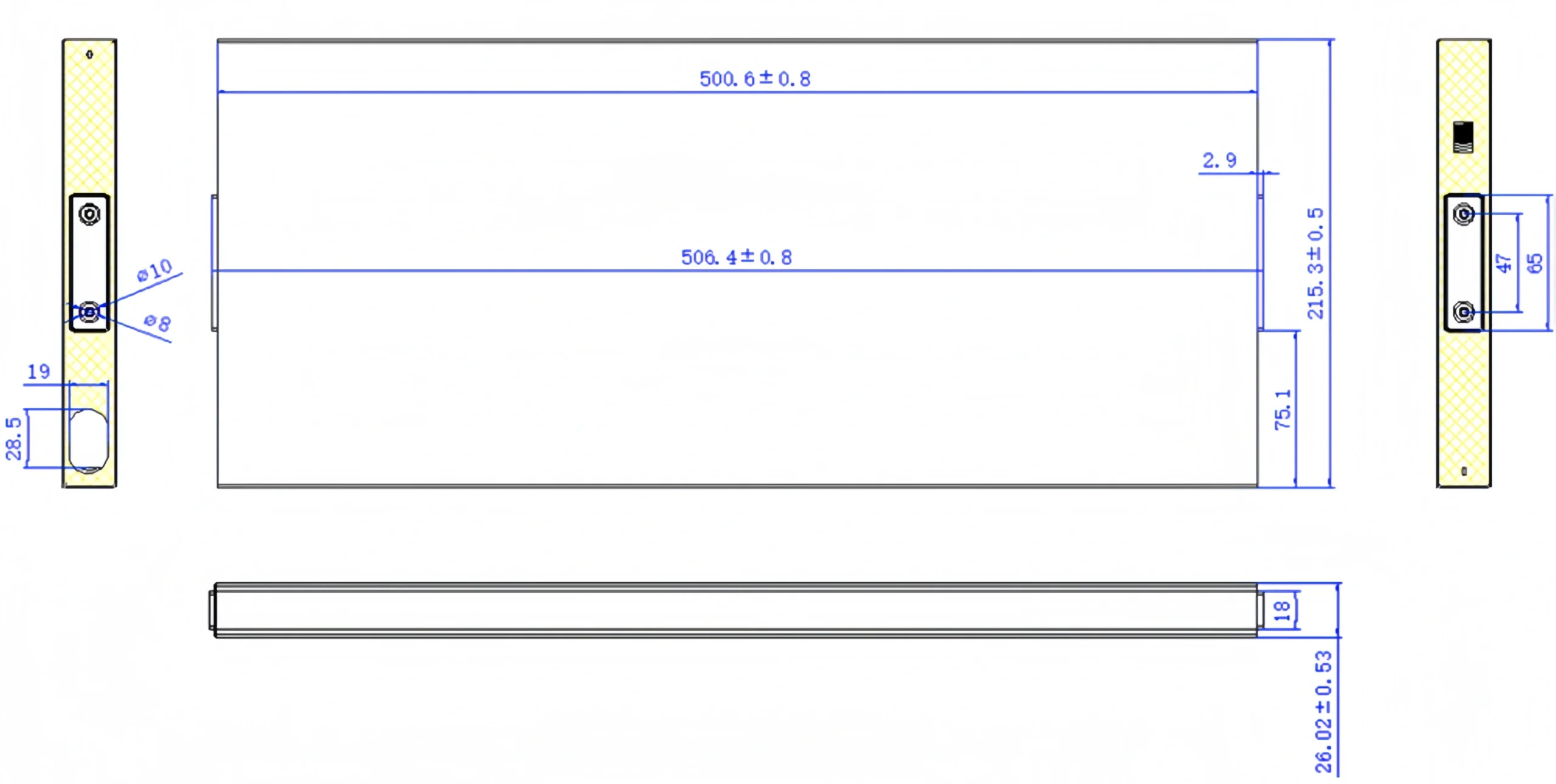

| Dimensions (T*L*H) | 26 * 500 * 215 mm |
| Weight | 6340g ± 80g |
| Cycle Life | ≥ 6,500 Cycles |
| Operating Temperature | Charge: 0~45°C | Discharge: -20~50°C |
| Shell Material | Aluminum |
| Sorting Service | Free (Included) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: This is the High Power (2.2C) version of the L500. Ensure busbars and BMS can handle currents >600A. Requires compression fixtures.
