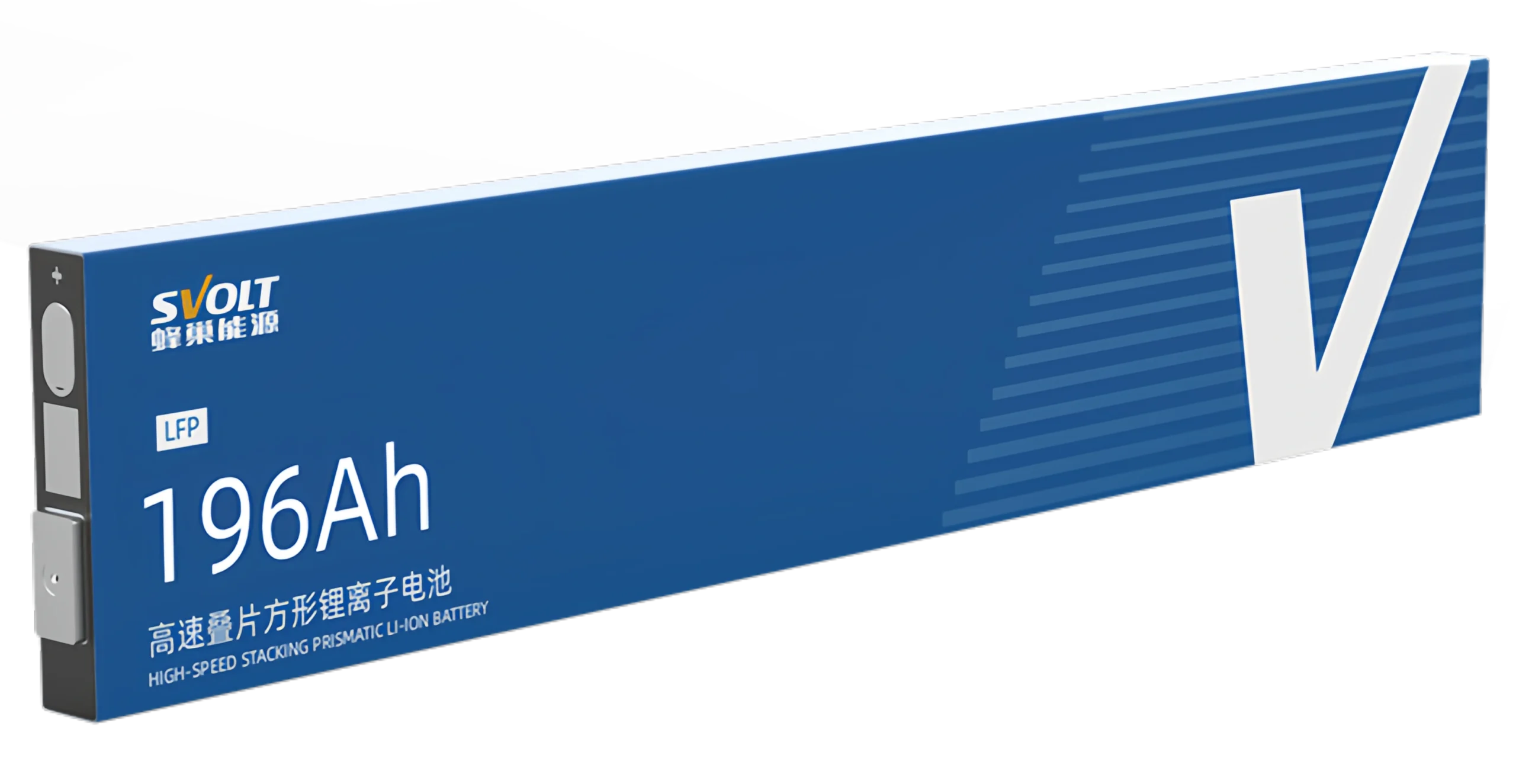

SVOLT 196Ah: The Heavyweight Champion of Blade Batteries
The SVOLT 196Ah Blade Battery is a powerhouse cell that bridges the gap between high capacity and high power. By thickening the standard blade profile slightly to 21.5mm, SVOLT has packed nearly 200Ah into a single structural unit, while maintaining a ferocious 2.2C discharge capability.
Massive Capacity & Power: Most high-rate cells have low capacity; this cell offers the best of both worlds: 196Ah of energy and 2.2C of power. This allows a single cell to deliver over 430 Amps of continuous current, making it perfect for heavy EVs and performance applications.
800V System Ready: Designed for the latest electric vehicle architectures, this cell is optimized for 400V and 800V systems. Its low internal impedance (≤0.45 mΩ) ensures minimal voltage drop and heat generation even in high-voltage series configurations.
All-Weather Reliability: With a discharge operating range down to -30℃, this cell ensures your vehicle or system starts and runs even in freezing winter conditions, a critical advantage over standard LFP cells.
✅ Verified Performance: We supply genuine Grade A SVOLT cells. For high-power applications like this, cell consistency is non-negotiable, and we verify every shipment to ensure specs match the datasheet.
🎯 Precision Matching: To handle 430A currents safely, your pack must be balanced. We include a Free Sorting Service, matching cells by voltage and internal resistance to ensure uniform performance across your entire battery bank.
🌐 Expert Logistics: Shipping large, high-energy blade batteries requires specialized handling. Our DDP (Delivered Duty Paid) service to the USA, Europe, and Brazil ensures your cells arrive safely, compliantly, and without hidden fees.

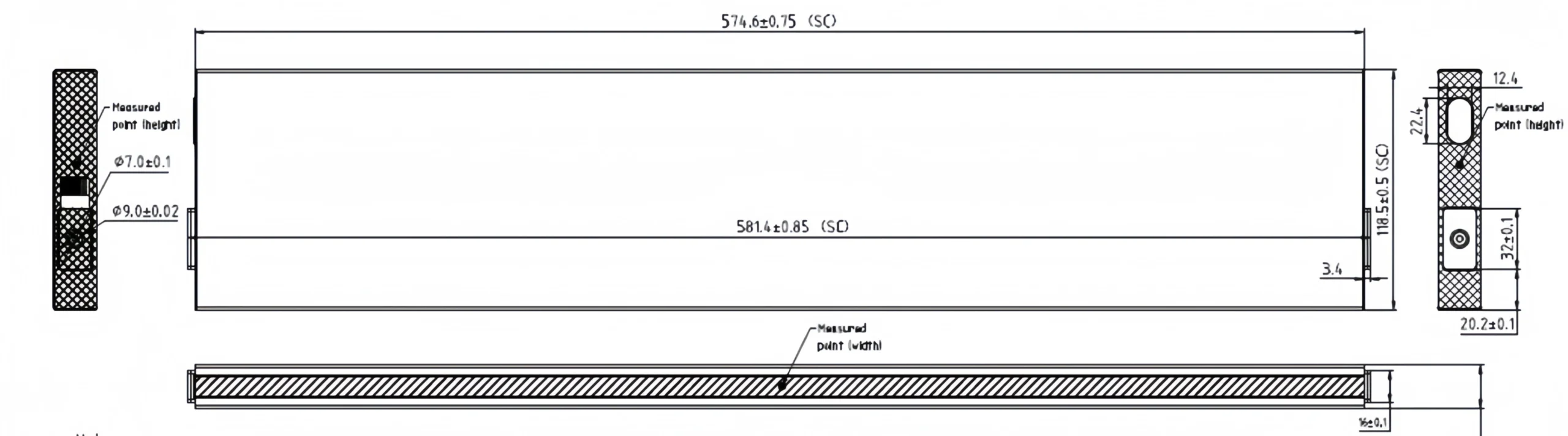

It measures 581mm in length, 118mm in height, and 21.5mm in thickness. It is slightly thicker than the ultra-thin 147Ah model to accommodate the extra capacity while remaining compatible with standard blade racks.
Yes. While it is “over-qualified” due to its 2.2C power capability, its large 196Ah capacity and long blade form factor make it an excellent choice for building compact, wall-mounted energy storage systems for high-load residential or C&I sites.
It achieves an impressive 162Wh/kg, which is very high for a LiFePO4 cell. This high density helps to keep the overall weight of your battery pack down, improving vehicle range or reducing the structural load on storage racks.
The SVOLT 196Ah Blade Battery is a high-capacity, high-power LiFePO4 cell. With a 2.2C discharge rating and a robust 196Ah capacity in a 574mm blade format, it is engineered for next-generation 400V and 800V electric vehicle platforms requiring long range and fast acceleration.
| Parameter | Specification |
|---|---|
| Brand | SVOLT |
| Model Type | 196Ah 2.2C Blade Battery |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 196 Ah |
| Nominal Voltage | 3.2 V |
| Operating Voltage | 2.5V ~ 3.65V |
| AC Impedance (1kHz) | ≤ 0.45 mΩ |
| Performance Rating | 2.2C High Power |
| Dimensions (T*L*H) | 21.5 * 581 * 118 mm |
| Weight | 3380g ± 50g |
| Energy Density | 162 Wh/kg |
| Cycle Life | ≥ 2,000 Cycles |
| Operating Temperature | Charge: 0~45°C | Discharge: -30~50°C |
| Sorting Service | Free (Included) |
When the cell have potentially dangerous, proper protection must be
taken during operation and maintenance. Improper operation of the charge
and discharge test described in this product standard may result in
serious personal injury and property loss! Proper tools and protective
equipment must be used to operate the cell. Cell maintenance must be
performed by a person with battery expertise and safety training. Failure
to comply with the above warnings can lead to multiple disasters.
Notice: High Power Cell (2.2C). Capable of ~430A continuous discharge. Requires robust busbars and active cooling management. Handle 574mm length with care.
