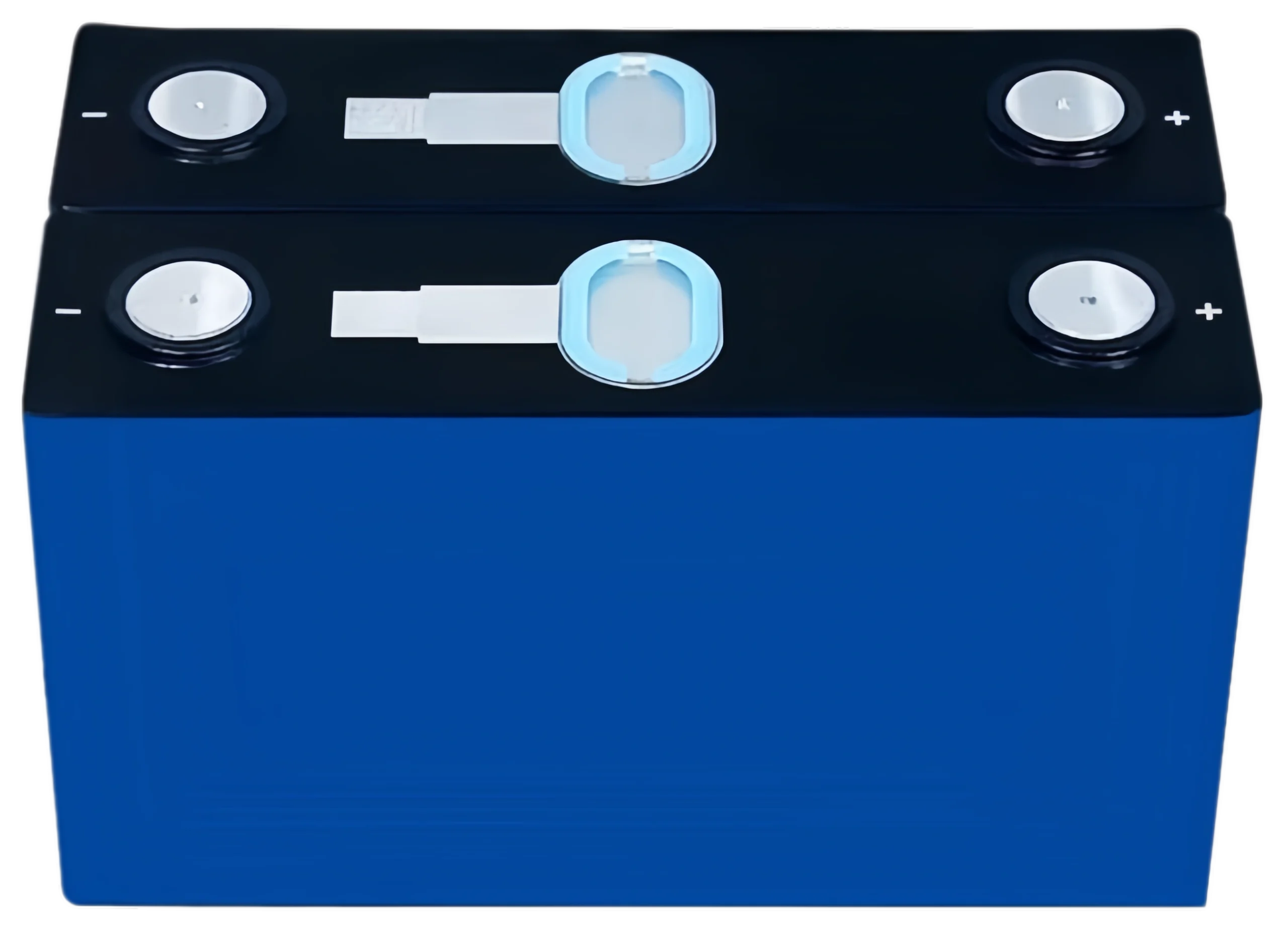

REPT CB58-132.5Ah: The Specialist for Compact High-Density Storage The REPT CB58-132.5Ah is a high-performance LiFePO4 prismatic cell engineered by REPT BATTERO. With its unique wide-and-low form factor, this 132.5Ah cell delivers an exceptional energy-to-volume ratio. It is the premier choice for system integrators building professional energy storage walls, compact electric propulsion units, and rugged industrial backup power stations.
📐 Low-Profile Architecture: Standing at just 115.0mm tall with a generous 220.3mm width, the CB58 is designed for slim battery pack enclosures where vertical clearance is limited but lateral space is available.
🛡️ Industrial Safety Profile: Engineered with a robust prismatic structure and a high-sensitivity explosion-proof vent, ensuring stable performance in high-vibration commercial and motive environments.
💎 Verified Grade A Quality: DLCPO ensures every cell is freshly produced with original factory QR codes, guaranteeing consistent voltage and low internal resistance for maximum system longevity.
✅ Authentic Factory-Direct Freshness: We supply 100% genuine REPT cells sourced directly from the production line, ensuring no chemical aging and full traceable history.
🎯 Precision Technical Matching: Our engineering team performs professional voltage and impedance matching for every B2B order, delivering perfectly balanced cell strings ready for assembly.
🌐 Expert Global Logistics: DLCPO manages the entire logistics chain, providing specialized DDP shipping services to the USA, EU, and Brazil with full customs and safety compliance.
The standout feature is its flattened aspect ratio. With a width of 220.3mm and a total height of only 115.0mm, it is significantly shorter than standard 100Ah-150Ah models. This allows for ultra-compact battery rack designs or mounting in shallow compartments where standard-height cells simply cannot fit.
Yes. The CB58 features a wide 169.0mm pole center distance, providing ample space for high-conductivity busbars. This wide spacing helps in superior heat dissipation and makes the assembly of 48V or high-voltage battery strings much more efficient for industrial installers.
We do not sell “shelf-aged” inventory. Every REPT 132.5Ah cell is verified by its original factory QR code for chemical traceability. Before any shipment, we perform precise OCV (Open Circuit Voltage) and IR (Internal Resistance) testing to ensure every cell in your order is perfectly matched.
The REPT CB58-132.5Ah is a specialized high-power LiFePO4 cell. Featuring a unique “long and low” form factor (220mm width, 113mm height) and a powerful 2C (265A) continuous discharge rating, it is engineered for custom EV modules and high-performance traction applications.
| Parameter | Specification |
|---|---|
| Brand | REPT BATTERO |
| Model Number | CB58-132.5Ah |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 132.5 Ah |
| Nominal Voltage | 3.2 V |
| Work Voltage Range | 2.5V ~ 3.65V |
| Internal Resistance | ≤ 0.50 mΩ |
| Standard Discharge | 44.2A (1/3C) |
| Continuous Discharge | 265A (2C) |

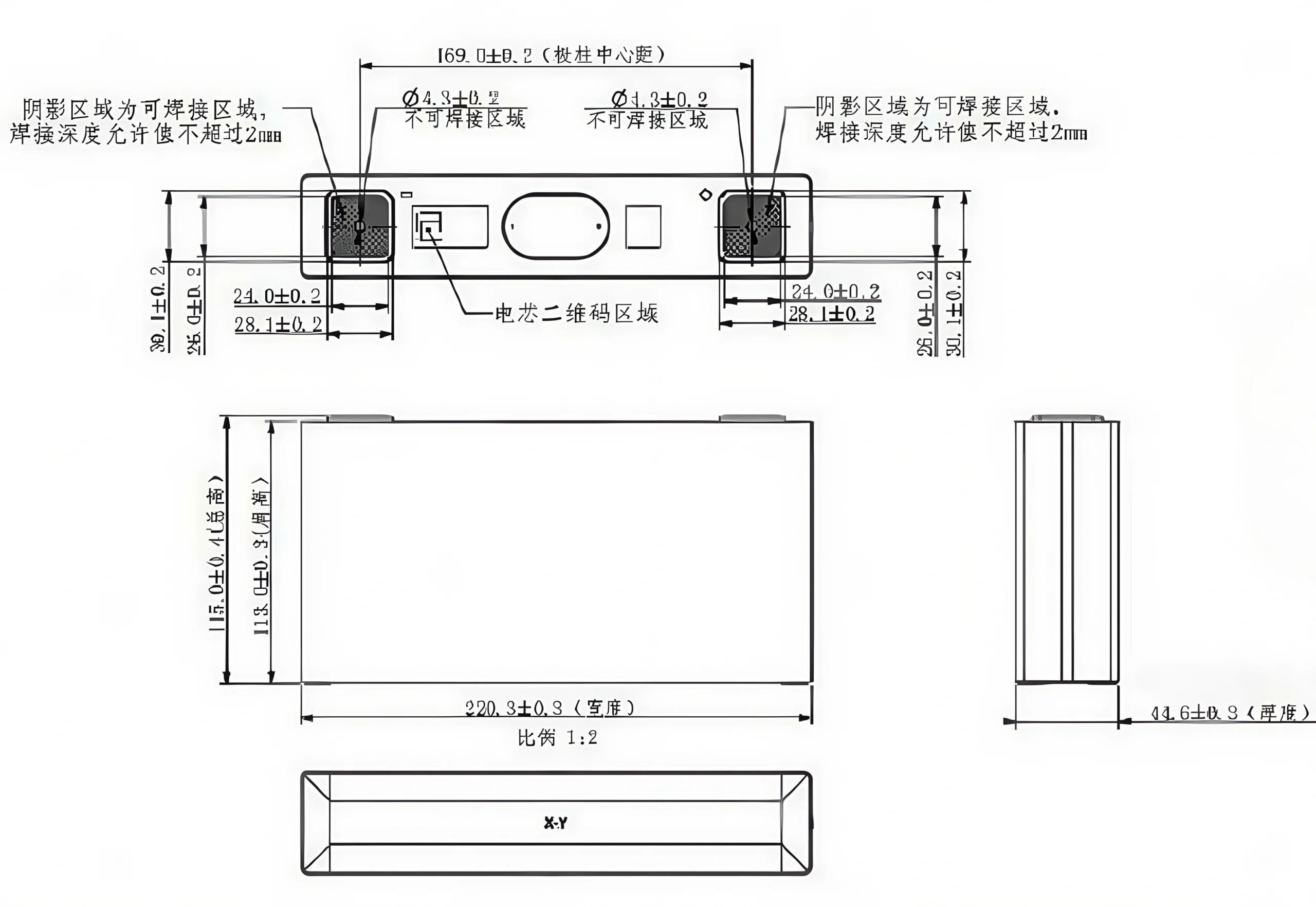

| Dimensions (W*T*H) | 220.3 * 44.8 * 113 mm |
| Weight | 2.40kg ± 0.1kg |
| Cycle Life | ≥ 2,500 Cycles |
| Sorting Service | Free (Included) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately
Notice: High-power cell (2C/265A). Ensure busbars are rated for >300A. Dimensions are unique (220mm wide, 113mm high); verify fitment before ordering.
