REPT CB56 3.2V 100Ah Grade A LiFePO4 Prismatic Battery Cell for Industrial & Solar Energy Storage

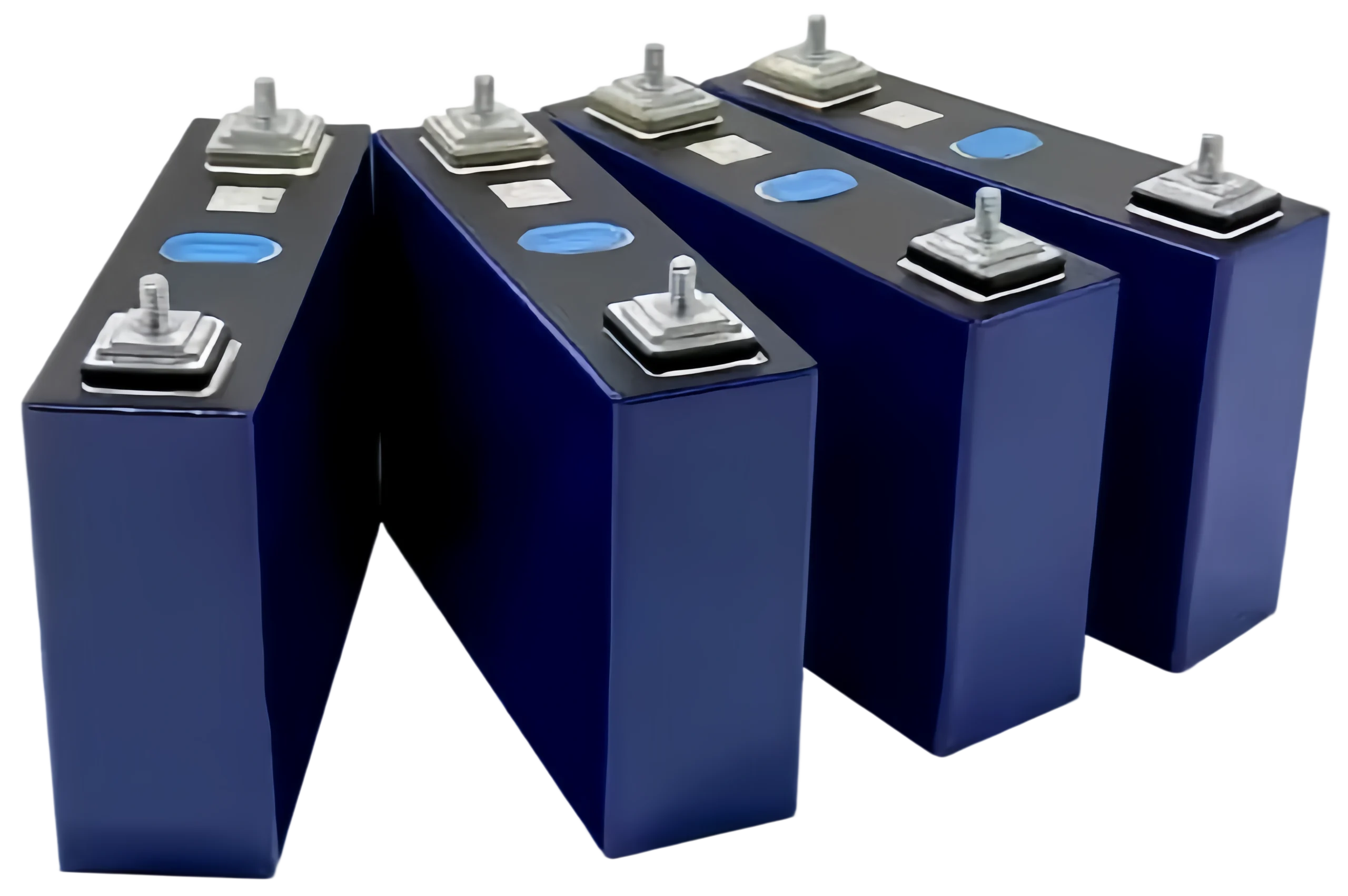

Top view of REPT CB56 100Ah LiFePO4 cells with high-quality laser-welded M6 studs, explosion-proof vents, and traceable factory QR codes.

REPT CB56-100Ah: The 6,000 Cycle Powerhouse

The REPT CB56-100Ah is a revolutionary Lithium Iron Phosphate (LiFePO4) cell from REPT BATTERO (a subsidiary of the global giant Tsingshan Group). By leveraging advanced electrode technology, REPT has created a cell that bridges the gap between long-life energy storage and high-power delivery.

Advanced Technical Advantages

Industry-Leading Lifespan: Rated for ≥6,000 cycles, the CB56 is designed to outlast the competition. In a daily-use solar system, this translates to over 15 years of serviceable life.
High-Power Discharge: Unlike typical 100Ah storage cells limited to 100A output, the CB56 datasheet specifies a Continuous Discharging Current of 300A (3C). This exceptional capability allows it to handle sudden power spikes from air conditioners or heavy tools without voltage sag.
Compact & Efficient: With an internal resistance of ≤0.4mΩ and a weight of just 1.91kg, it offers high energy density and cool operation, making it perfect for enclosed battery spaces.

Why Partner with DLCPO?

Genuine REPT Quality: We supply authentic Grade A cells directly from REPT production lines. Every cell features intact QR codes for full traceability.
Precision Testing: We verify the voltage and internal resistance of every cell before shipment to ensure your battery bank is perfectly matched from day one.
Global Logistics: DLCPO specializes in DDP (Delivered Duty Paid) shipping solutions for lithium batteries to the USA, Europe, and Brazil, ensuring a hassle-free delivery experience.

❓ Q:1: Is this cell suitable for a 12V system?

💡 A:

A: Yes. Connecting 4 cells in series creates a 12.8V 100Ah pack capable of delivering high power (up to 300A continuous), making it superior to standard 100Ah drop-in replacements.

❓ Q:2: What is the recommended charge current?

💡 A:

A: While it can handle fast charging, we recommend a standard charge current of 0.5C (50A) to maximize the battery’s 6,000+ cycle lifespan.

❓ Q:3: How does REPT compare to other brands?

💡 A:

A: REPT is a Tier-1 manufacturer backed by the world’s largest nickel and stainless steel producer (Tsingshan). Their “Wending” technology often provides better volume utilization and cycle life than generic competitors.

Main technical specifications

Product Overview:

The REPT CB56-100Ah is a premium deep-cycle LiFePO4 prismatic cell. Offering an impressive 6,000+ cycle life and 3C (300A) continuous discharge capability, it redefines performance for 100Ah energy storage applications.

Parameter	Specification
Brand	REPT BATTERO
Model Number	CB56-100Ah
Cathode Material	LiFePO4 (LFP)
Nominal Capacity	100 Ah
Work Voltage Range	2.5 V ~ 3.65 V
Internal Resistance	≤ 0.4 mΩ
Standard Discharge	100A (1C)
Max. Cont. Discharge	300A (3C)
Dimensions (WTH)	148.4 * 52.32 * 119 mm
Weight	1.91kg ± 0.15kg
Cycle Life	≥ 6,000 Cycles
Sorting Service	Free (Included)

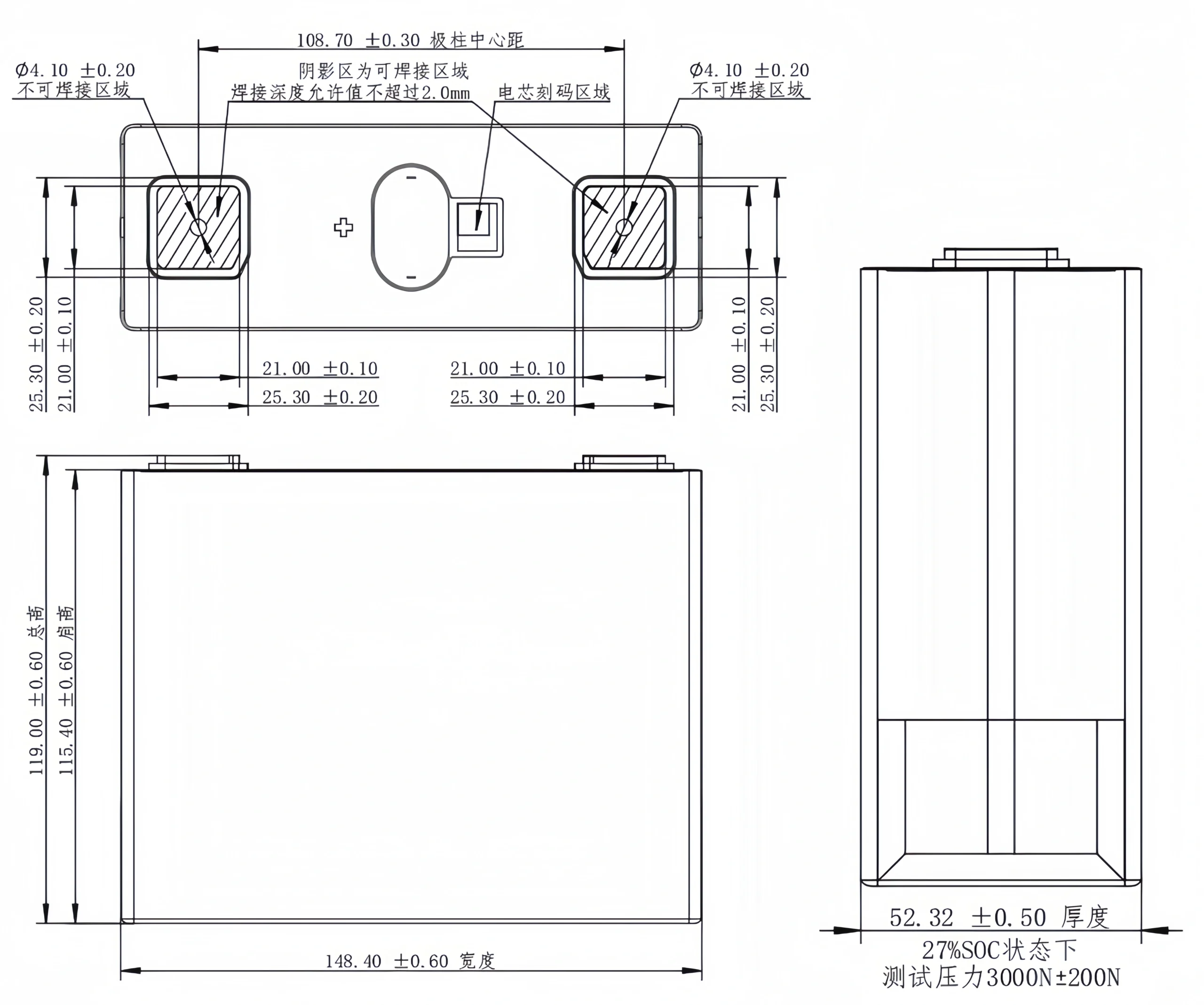

Drawing

Applications

Residential ESS: 6,000+ cycle life makes it a “install and forget” solution for home solar batteries.
RVs & Campers: Compact size (148x52x119mm) fits standard battery boxes while providing high currents.
High-Power Equipment: Unique 300A (3C) discharge capability handles heavy inverter surges easily.
Marine: Robust deep-cycle performance ideal for trolling motors and boat house banks.

Warnings & Cautions

Stop charging cells if charging isn’t completed within the specified time.

Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.

Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately

Notice: While this cell supports 300A continuous discharge, ensure your BMS and wiring are rated for such high currents. For maximum cycle life (6000+), we recommend charging/discharging at 0.5C.
