REPT CB54173145EA-150Ah: Compact Power for Next-Gen Storage The REPT CB54173145EA is a high-performance 150Ah LiFePO4 cell designed for high-density modular energy storage. Manufactured by REPT BATTERO, this prismatic cell delivers a stable 3.2V output with an emphasis on space optimization and long-term structural integrity. It is the premier choice for system integrators focused on high-efficiency solar ESS and industrial backup power.
📐 Compact Low-Profile Design: Standing at just 148.31mm tall, the CB54173145EA allows for much more flexible vertical stacking in compact battery cabinets compared to standard height cells.
🛡️ Superior Structural Safety: Engineered to withstand a structural test pressure of 3000N, ensuring reliability in high-vibration commercial and motive environments.
💎 Verified Grade A Quality: DLCPO ensures every cell is freshly produced with its original factory QR code, guaranteeing zero chemical aging and consistent internal resistance for maximum system life.
✅ Authentic Factory-Direct Freshness: We provide 100% genuine REPT cells sourced directly from the production line, ensuring no chemical aging and full traceable history.
🎯 Precision Technical Matching: Our engineering team performs professional voltage and impedance matching for every B2B order, delivering balanced cell strings ready for professional assembly.
🌐 Expert Global Logistics: DLCPO manages the entire logistics chain, providing specialized DDP shipping services to the USA, EU, and Brazil with full customs compliance.
The standout feature is its height. With a total height of only 148.31mm, it is significantly shorter than standard 200Ah-300Ah cells. This allows for ultra-compact 150Ah battery packs that can fit into shallow cabinets or specialized portable power enclosures where height is restricted.
Yes. The structural design and consistent Grade A electrical parameters of the REPT 150Ah cell make it ideal for high-voltage strings. The robust aluminum casing and reliable internal architecture ensure safety even in large-scale commercial series-parallel configurations.
The 3000N structural test pressure indicates exceptional mechanical durability. For industrial or mobile storage projects, this ensures the cells can maintain their physical and chemical integrity under the physical stresses of long-term compression and vibration.
The REPT CB54173145EA-150Ah is a versatile 150Ah LiFePO4 cell with a unique compact height (145mm). Featuring a powerful 1C (150A) continuous discharge capability, it is specifically designed for applications where vertical space is limited and high power output is required.
| Parameter | Specification |
|---|---|
| Brand | REPT BATTERO |
| Model Number | CB54173145EA-150Ah |
| Cathode Material | LiFePO4 (LFP) |
| Nominal Capacity | 150 Ah |
| Nominal Voltage | 3.2 V |
| Work Voltage Range | 2.5V ~ 3.65V |
| Internal Resistance | ≤ 0.50 mΩ |
| Standard Discharge | 50A (0.33C) |
| Continuous Discharge | 150A (1C) |

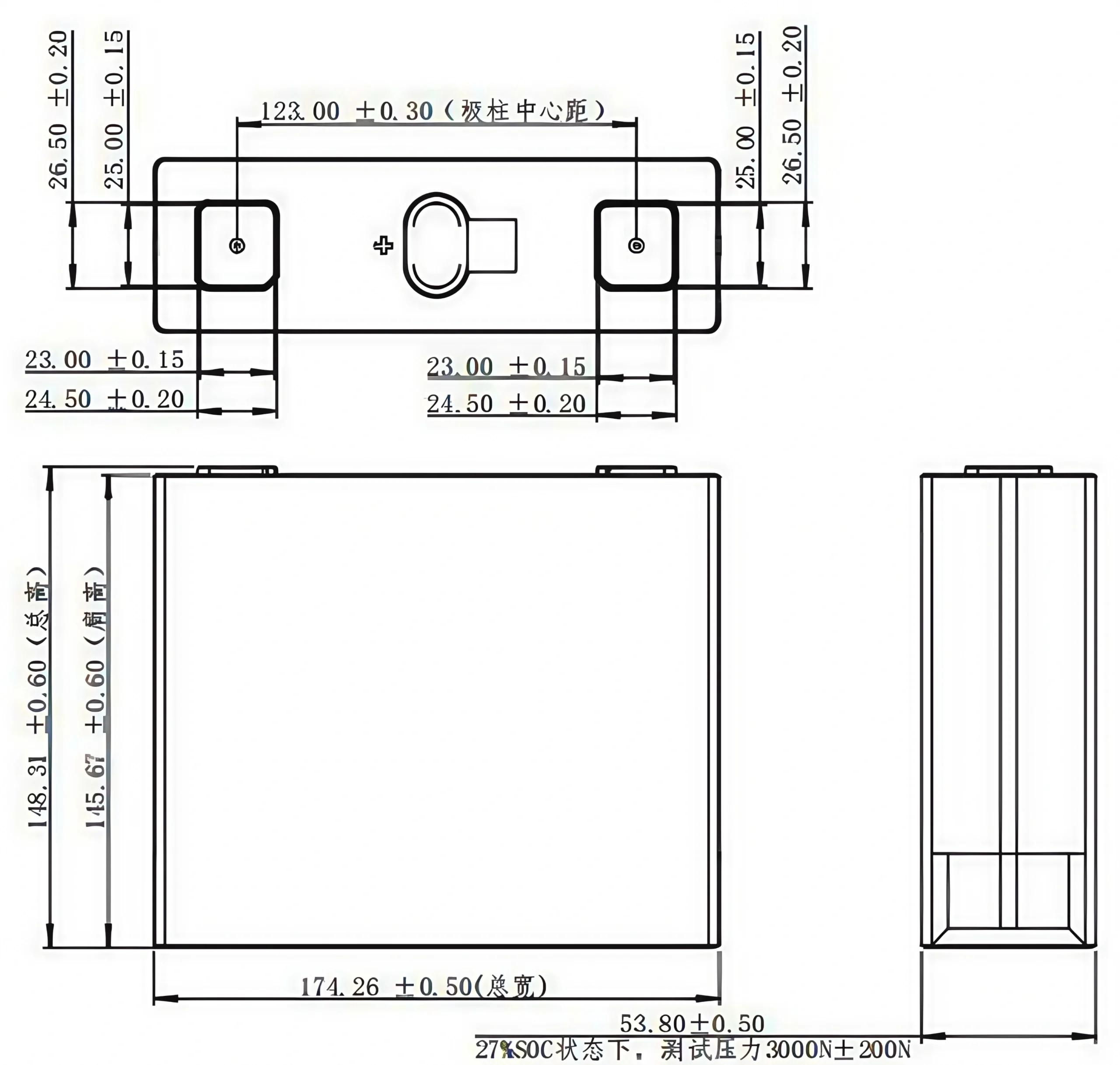

| Dimensions (W*T*H) | 174.26 * 53.8 * 145.67 mm |
| Weight | 2.87kg ± 0.15kg |
| Cycle Life | ≥ 2,500 Cycles |
| Sorting Service | Free (Included) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately
Notice: This cell has a unique height (145.67mm). Verify your enclosure dimensions. Supports 150A continuous discharge; ensure busbars are sized correctly.
