Lishen LP37173207 150Ah 3.2V Grade A LiFePO4 Prismatic Battery Cell LP37173207 – Slim 37mm High-Density Core for RV, Marine & Solar Storage

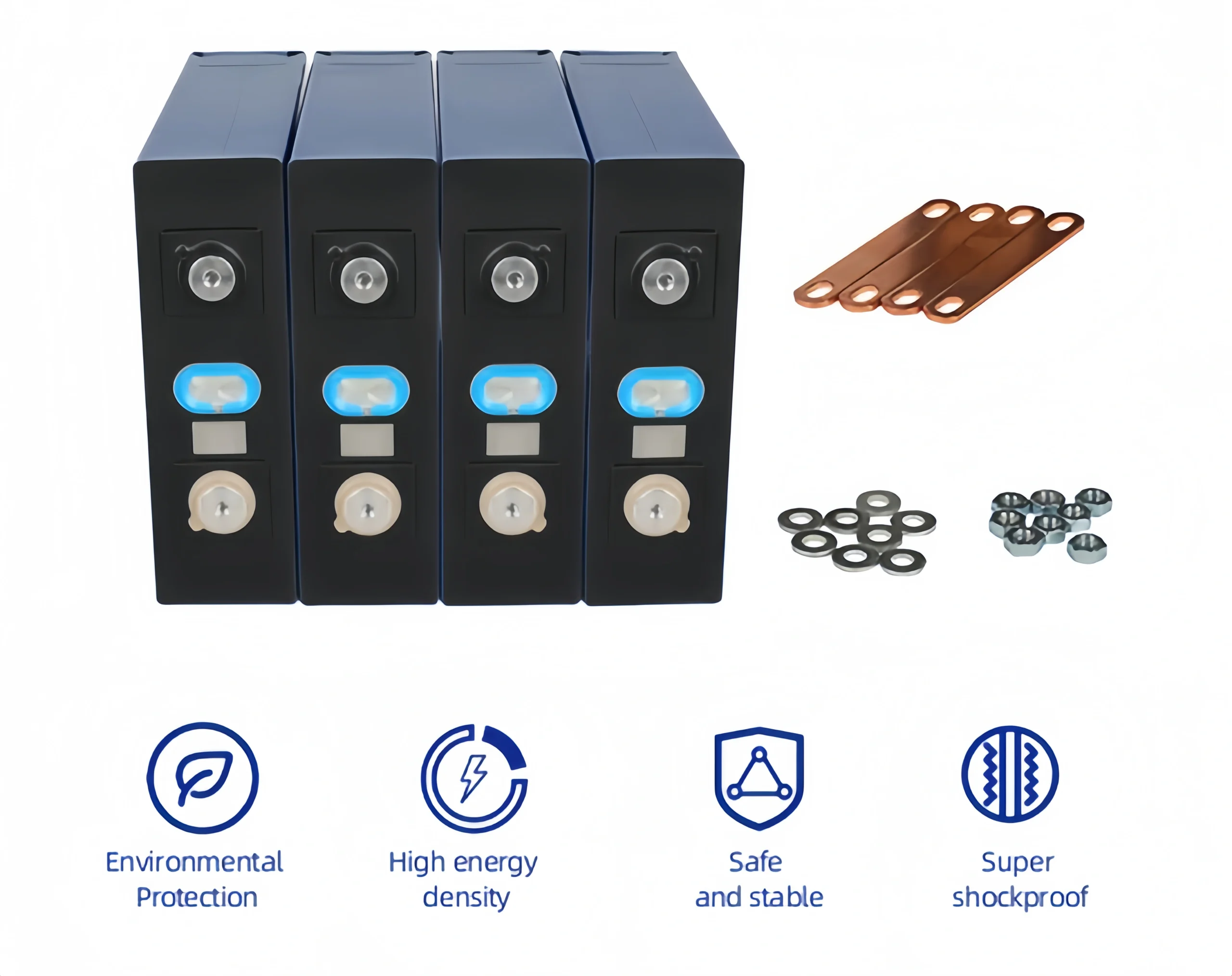

Four blue Grade A Lishen 150Ah LiFePO4 prismatic cells displayed with high-quality copper busbars, washers, and nuts for professional battery bank assembly.

Lishen LP37173207 150Ah: Automotive-Grade Power for Modern Energy Storage The Lishen LP37173207-150Ah is a high-performance Lithium Iron Phosphate (LiFePO4) cell engineered for maximum reliability. Manufactured by Lishen, a global pioneer in lithium-ion technology, this Grade A prismatic cell is specifically designed to meet the rigorous demands of both electric vehicle propulsion and high-density stationary energy storage.

🚀 Advanced Technical Performance

⚡ Exceptional Efficiency: With an ultra-low internal resistance of under 0.5 mΩ, the LP37173207 minimizes energy loss during high-load charge/discharge cycles, ensuring cooler operation and higher system efficiency.
⚡ Standardized Slim Profile: Featuring a substantial 150Ah capacity in a standardized aluminum prismatic shell (approx. 174mm x 37mm x 207mm), it allows for high-density battery bank construction without unnecessary bulk.
⚡ Long-Term Reliability: Engineered for over 3,000 full cycles, these cells provide a decade or more of daily service in RV and solar environments with minimal capacity degradation.

🤝 Why Partner with DLCPO?

✅ Verified Grade A Inventory: We supply 100% original Lishen cells with verified factory QR codes. Every unit undergoes rigorous voltage and resistance consistency testing before shipping.
🎯 Transparent Data: DLCPO maintains full traceability for every batch. You receive authentic automotive-grade inventory directly from trusted production batches with no relabeling.
🌐 Expert Global Logistics: We specialize in professional DDP (Delivered Duty Paid) shipping to Brazil, the USA, and Europe. We handle all customs formalities and lithium battery safety protocols, delivering directly to your door.

❓ Q:Q: What is the main benefit of the 150Ah capacity over standard 100Ah cells?

💡 A:

It offers a “sweet spot” in energy density—you get 50% more run-time while maintaining a manageable weight of only 2.9kg. Its slim 37mm profile ensures it can fit into narrow spaces where standard 200Ah or 280Ah cells are too thick or heavy.

❓ Q:Can I use this for my 48V home solar system?

💡 A:

Absolutely. A 16S configuration (16 cells in series) will provide a high-performance 51.2V 150Ah battery pack, offering approximately 7.6 kWh of usable energy storage. This setup is perfect for residential off-grid systems or backup power.

❓ Q:What is the peak discharge rate of this cell?

💡 A:

The cell supports a stable 1.0C (150A) continuous discharge. This provides the necessary current for high-surge appliances like air conditioners in RVs or marine induction cooktops without causing significant voltage drop. ⚡

Main technical specifications

Product Overview:

The Lishen LP37173207 is a high-performance 150Ah LiFePO4 prismatic power cell. Designed for automotive-grade reliability, it features wide operating temperature ranges and includes free sorting service to ensure pack consistency.

Parameter	Specification
Brand	Lishen
Model Number	LP37173207-150Ah
Nominal Capacity	150 Ah
Nominal Voltage	3.2 V
Charging Voltage	3.65 V
Discharge End Voltage	2.0 V
AC Impedance (1kHz)	≤ 0.5 mΩ
Standard Charge/Discharge	0.5 CA
Max. Discharge Current	1.0 CA (150A)
Dimensions	173 * 71 * 207 mm
Weight	2900g ± 50g
Cycle Life	≥ 3,000 Cycles
Max Operating Temp	Charge: 0~45°C \| Discharge: -20~60°C
Sorting Service	Free (Included)

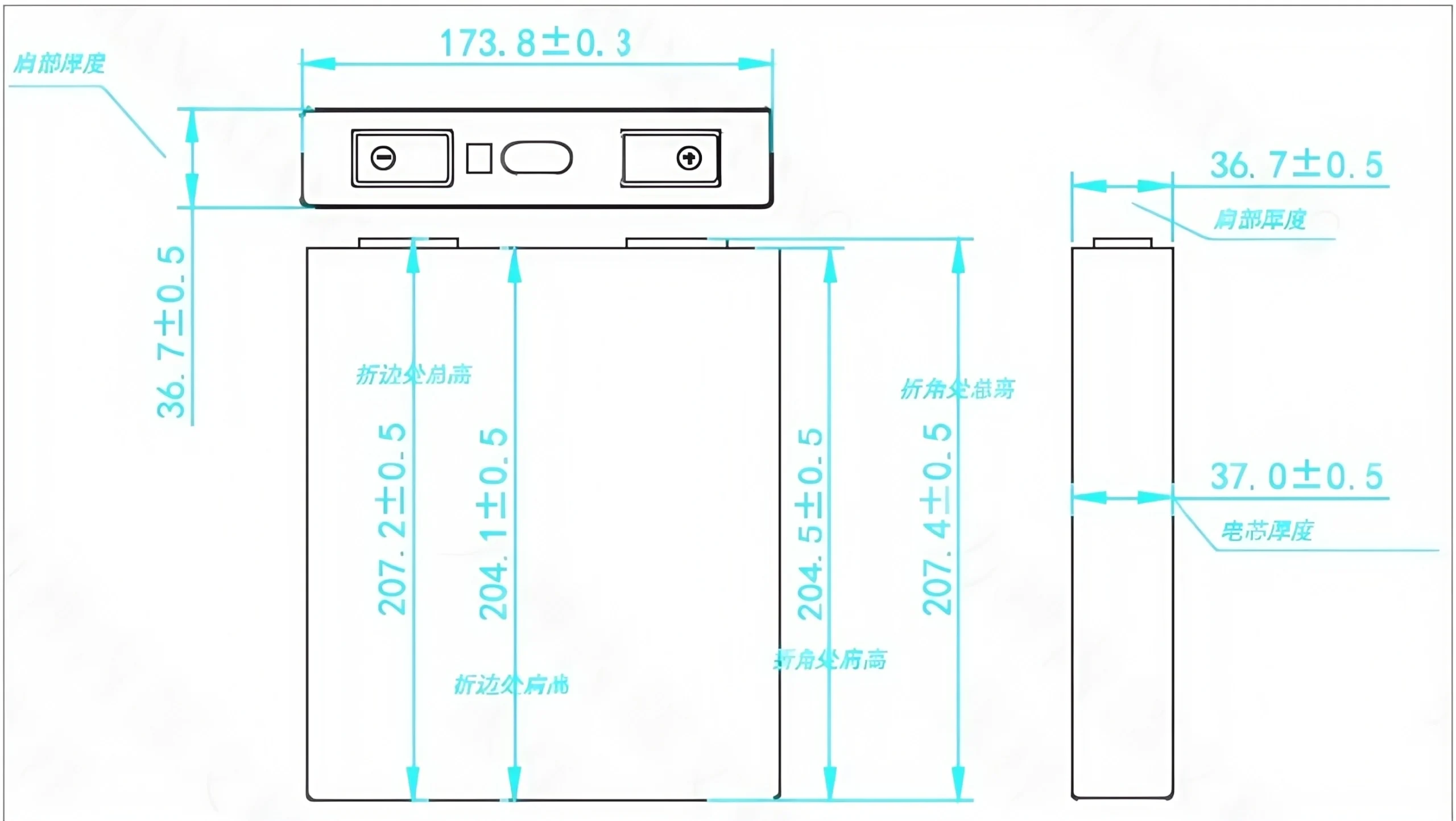

Drawing

Applications

Solar Energy Storage: High reliability for building 12V/24V/48V home battery banks.
Electric Mobility: Suitable for electric forklifts, golf carts, and light EV modules.
RV & Marine: Compact 150Ah size provides excellent energy density for off-grid living.
Industrial UPS: Stable 1C discharge (150A) for reliable emergency backup power.

Warnings & Cautions

Avoid overheat in any circumstances. Don’t modify or disassemble the battery. It will be dangerous, and may cause ignition, heating, leakage or explosion.
Don’t put cells in overheat circumstances or disposed in fire ,don’t put cells under the sunshine.
Don’t short-circuit positive(+) and negative(-) terminals. Keep away from metal or other conductive materials. Jumbling the batteries of direct contact with positive(+) and negative(-) terminals or other conductive materials may cause short-circuit and may even cause fire and explosion.
Don’t reverse the positive (+) and negative (-) terminals.
Don’t put cells in water or other conductive liquids or let cells absorb a moisture.
Don’t impact cells excessively.
Don’t solder the battery directly. Excessive heating may cause deformation of the battery components such as the gasket, which may lead to the battery swelling, leakage, explosion, or ignition.
Don’t use abnormal cell which has damages by shipping stress, drop, short or something else, and which gives off electrolyte odor.
Don’t contact cans directly or with other conductive materials during the using process.
Keep away form static circumstances during storage and using.
Don’t use cells together with other one-shot batteries and secondary batteries. Don’t use cells together with different packages, types and brands.
Stop using and process the cells accordingly when the following circumstances happened：getting hot sharply, smelling, changing colors, deformation or others.
If there is leaked electrolyte from batteries, please scrub it away with fresh water to avoid any skin discomfort. 14.Notice: Maintain operating voltage within 2.5V to 3.65V. Ensure charging occurs above 0°C to prevent lithium plating. Use professional busbars to handle 150A discharge currents safely.
