Higee 120Ah 3.2V Grade A LiFePO4 Prismatic Battery Cell – 7500 Cycles Ultra-Long Life – 170mm Low-Profile Design for Golf Carts & RV ESS

Single blue Grade A Higee 120Ah LiFePO4 prismatic battery cell with original factory label and 7,500 cycle life rating for premium energy storage.

Higee 120Ah: The Long-Life Champion

The Higee (Haibase) HJLFP48173170E-120Ah stands out in the global market for one major reason: Longevity. With a cycle life rating of $\ge 7,500$ cycles, this Grade A prismatic cell is engineered to last nearly twice as long as standard LiFePO4 cells, ensuring your investment delivers reliable power for over 20 years of potential service life.

🚀 Why Choose the Higee 120Ah?

  • ⚡ Incredible 7,500 Cycle Life: While most cells offer 3,000-4,000 cycles, Higee’s advanced chemistry pushes the boundary. For a solar system cycling once a day, this translates to decades of reliable performance.

  • ⚡ Perfect Golf Cart Fit (170mm Height): At just 170mm tall, this cell is significantly shorter than standard 200mm+ prismatic cells. It fits easily into the battery trays of golf carts and utility vehicles without requiring seat modifications or lift kits.

  • ⚡ Compact & Lightweight Efficiency: Measuring just 48mm thick and weighing only 2.86kg, these cells allow you to build a powerful, lightweight battery pack (e.g., a 48V 120Ah pack weighing under 46kg) that is easy to handle and install.

🤝 Why Partner with DLCPO?

  • ✅ Authentic Specifications: We guarantee this is the genuine 120Ah model with the 7500-cycle rating. DLCPO verifies every specification against the official datasheet (HJLFP48173170E-120Ah) so you get exactly what you order.

  • 🎯 Professional Matching Service: To ensure your long-life pack stays balanced, we provide a Free Sorting Service. Every cell is matched by voltage and internal resistance (≤0.3 mΩ) so they age evenly together.

  • 🌐 Hassle-Free Global Logistics: We handle the complex logistics of shipping lithium batteries. Our DDP (Delivered Duty Paid) service to the USA, Europe, and Brazil covers all dangerous goods fees and customs duties, delivering straight to your facility.

❓ Q:Is this a 120Ah or 280Ah size cell?
💡 A:

This is the 120Ah model. Note that Higee also makes a 280Ah cell, but it is much thicker (72mm). This 120Ah cell is slim at 48mm, designed for space-efficient builds.

💡 A:

Yes, it is an excellent choice. The compact size allows you to fit more capacity into small compartments or under-floor storage, and the 7500 cycle life means you may never need to replace your house battery again.

💡 A:

For optimal lifespan (to reach that 7500 cycle target), we recommend charging at 0.5C (60A) or less. While the cell can handle higher rates if necessary, slower charging preserves the electrode structure for the long haul. 🚀

Main technical specifications

Product Overview:

The Higee (Haibase) 120Ah is a compact, long-life LiFePO4 cell. Distinguished by its impressive 7,500+ cycle life rating, it packs 120Ah of capacity into a slim 48mm x 170mm form factor, making it an ideal choice for durable golf cart packs and residential energy storage.

Parameter Specification
Brand Higee (Haibase/Highstar)
Model Type HJLFP48173170E-120Ah
Chemistry LiFePO4 (LFP)
Nominal Capacity 120 Ah
Nominal Voltage 3.2 V
Operating Voltage 2.5V ~ 3.65V
AC Impedance (1kHz) ≤ 0.3 mΩ
Dimensions (T*W*H) 48 * 173 * 170 mm
Weight ≤ 2.86 kg
Cycle Life ≥ 7,500 Cycles
Operating Temperature Charge: 0~45°C | Discharge: -20~50°C
Shell Material Aluminum
Sorting Service Free (Included)

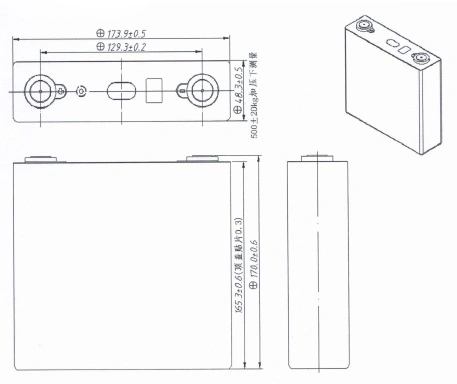

Drawing

Applications

  1. Golf Carts: The 170mm height is perfect for fitting under seats, and 7500 cycles means it could outlast the cart itself.
  2. Residential Solar: Extreme cycle life (7500+) provides maximum ROI for daily-use home battery banks.
  3. RV & Marine: Compact size (48x170mm) allows flexible installation in tight lockers.
  4. Telecom Backup: High reliability and long calendar life for critical infrastructure.

Warnings & Cautions

  1. Avoid overheat in any circumstances. Don’t modify or disassemble the battery. It will be dangerous, and may cause ignition, heating, leakage or explosion.
  2. Don’t put cells in overheat circumstances or disposed in fire ,don’t put cells under the sunshine.
  3. Don’t short-circuit positive(+) and negative(-) terminals. Keep away from metal or other conductive materials. Jumbling the batteries of direct contact with positive(+) and negative(-) terminals or other conductive materials may cause short-circuit and may even cause fire and explosion.
  4. Don’t reverse the positive (+) and negative (-) terminals.
  5. Don’t put cells in water or other conductive liquids or let cells absorb a moisture.
  6. Don’t impact cells excessively.
  7. Don’t solder the battery directly. Excessive heating may cause deformation of the battery components such as the gasket, which may lead to the battery swelling, leakage, explosion, or ignition.
  8. Don’t use abnormal cell which has damages by shipping stress, drop, short or something else, and which gives off electrolyte odor.
  9. Don’t contact cans directly or with other conductive materials during the using process.
  10. Keep away form static circumstances during storage and using.
  11. Don’t use cells together with other one-shot batteries and secondary batteries. Don’t use cells together with different packages, types and brands.
  12. Stop using and process the cells accordingly when the following circumstances happened：getting hot sharply, smelling, changing colors, deformation or others.
  13. If there is leaked electrolyte from batteries, please scrub it away with fresh water to avoid any skin discomfort.
  14. Notice: 120Ah Compact Cell. Dimensions: 48mm (T) x 170mm (H). Ideal for long-life applications (≥7500 cycles).
