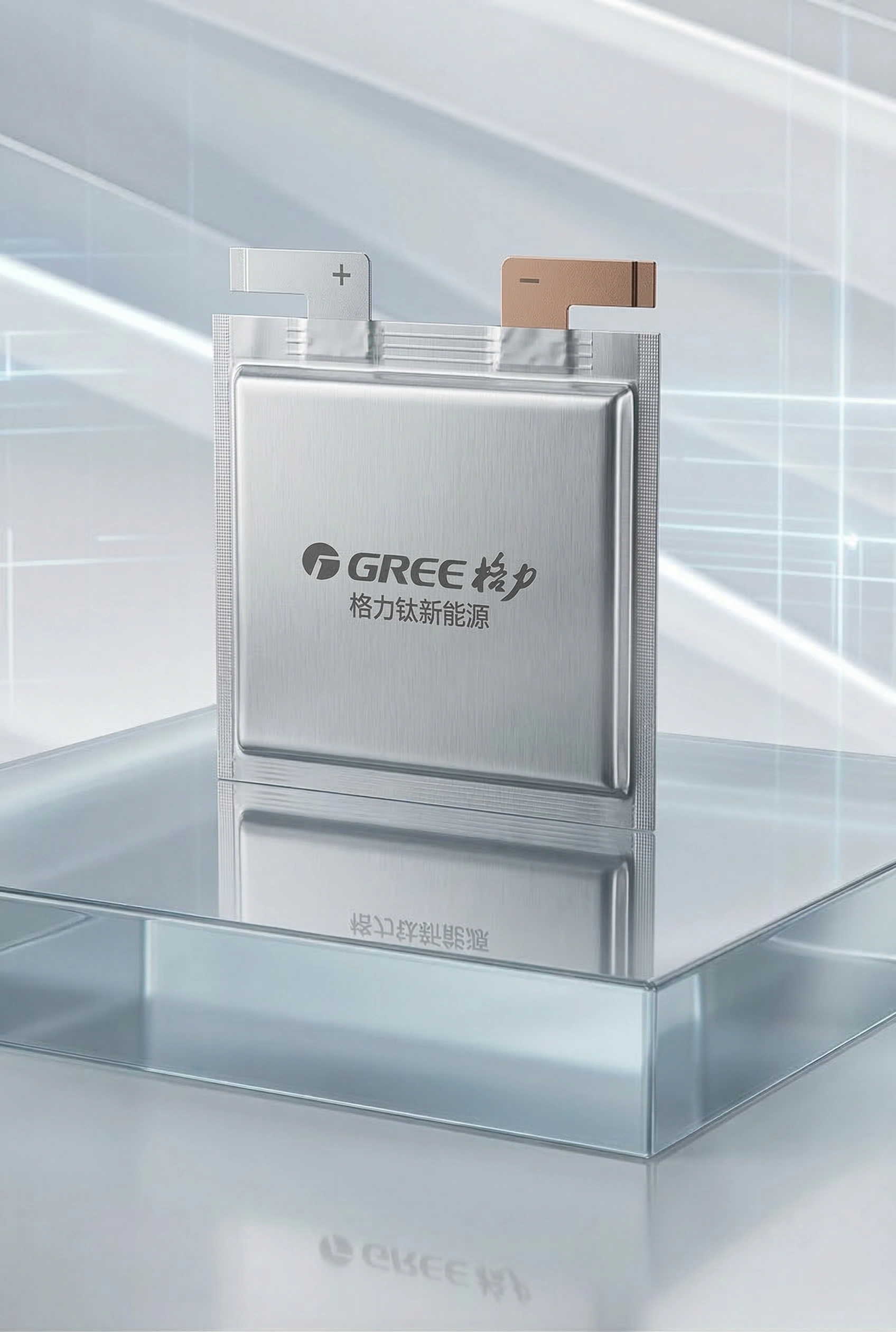

GREE 70Ah LTO: Maximum Power in a Lightweight Package The GREE 70Ah LTO Pouch Cell is designed for professionals who demand maximum power density and absolute safety. Utilizing Lithium Titanate Oxide (LTO) chemistry, this cell solves the most common lithium limitations: it can be charged in minutes, operates at -50°C, and is virtually non-explosive, making it the premier choice for mission-critical industrial and transportation energy systems.
⚡ 10C High-Rate Discharge: Engineered for high-load cycles, this cell supports a continuous 10C discharge and up to 700A burst current. This makes it exceptionally capable for heavy-duty starting and high-speed energy buffer applications.
⚡ Ultra-Slim 13mm Profile: At just 12.6mm thick, this pouch cell is significantly thinner and lighter than aluminum-cased prismatic alternatives. It allows for creative vertical stacking and innovative packing in slim enclosures.
⚡ Extreme Environmental Resilience: While standard LiFePO4 cells fail in freezing temperatures, LTO thrives. This GREE core maintains high performance in extreme cold, ensuring your system stays online where others freeze.
✅ Professional Tab Welding Service: Foil tabs can be difficult to manage. DLCPO provides professional custom welding, converting raw tabs into sturdy screw terminals or pre-welded modules to match your assembly needs perfectly.
🎯 Source Transparency: We correctly identify every cell as a genuine Gree Titanium (Gree Group) product. You receive the true automotive-tier quality used in GREE’s own electric bus fleets.
🌐 Expert Global Logistics: Shipping high-power LTO batteries requires specialized Class 9 handling. DLCPO handles all complex DDP shipping protocols to the USA, Europe, and Brazil, delivering safe and compliant energy directly to your door.
Choose LTO if your project requires extreme cycle life (20,000+ cycles), ultra-fast charging (under 10 minutes), or operation in temperatures below -30°C. LTO is also the safest lithium chemistry available, with no thermal runaway risk during puncture or crushing.
No. The raw tabs are made of thin foil and cannot be bolted directly. However, DLCPO specializes in laser-welded terminal conversions. We can add M6/M8 studs or copper plates for you, making assembly as easy as a prismatic cell.

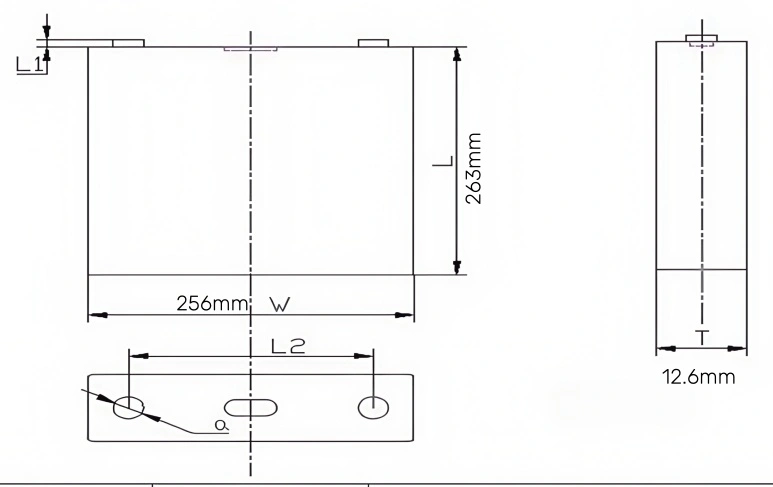

The cell body measures 256mm wide, 263mm long, and 12.6mm thick. Please note that the flexible tabs extend beyond the 263mm length; we recommend allowing extra space for terminal routing and insulation in your design. 📐
Product Overview:
The GREE (Yinlong) 70Ah Pouch Cell (Model: ITP130258264PE70Ah) offers superior energy density and flexibility compared to prismatic cells. Its soft pack design allows for lighter weight and higher discharge rates.
| Feature | Details |
| Brand | GREE / Yinlong |
| Model Number | ITP130258264PE70Ah |
| Type | LTO Pouch Cell (Soft Pack) |
| Nominal Capacity | 70Ah |
| Nominal Voltage | 2.3V |
| Internal Resistance | ≤ 0.6mΩ (Ultra-low) |
| Discharge Rate | Continuous 6C / Peak 10C+ |
| Dimensions | 13mm x 258mm x 264mm (T*W*H) |
| Terminals | Laser Welding Tabs (Aluminum/Copper) |
High-Performance Applications:
Custom Battery Packs: Ideal for irregular spaces where rigid prismatic cells won’t fit.
Electric Racing: Go-karts, motorcycles, and drones requiring high burst power (10C).
Car Audio: Provides massive instant current to amplifiers without voltage sag.
Portable Power: Lighter weight makes it suitable for man-portable heavy-duty power banks.
Handle with Care: Pouch cells are soft. Do not puncture, bend, or apply excessive pressure to the cell body.
Terminals: The tabs are fragile. Avoid repeated bending.
Assembly: Requires proper compression fixture and laser welding/soldering skills.
