Gotion 30Ah (LFP20100140A): The Lightweight Powerhouse The Gotion High-Tech LFP20100140A-30Ah represents a breakthrough in Lithium Iron Phosphate (LiFePO4) engineering. While most LFP cells prioritize weight over performance, this power-grade cell achieves a staggering 175Wh/kg energy density, rivaling many NMC chemistries while maintaining the legendary safety and long cycle life of the LFP platform.
⚡ 3C Continuous Performance: Designed for demanding power cycles, it supports 3C (90A) continuous discharge, providing instant acceleration and high torque for light electric vehicles without voltage sag.
⚡ Rapid 3C Charging: The 3C charge capability allows you to recharge from 10% to 80% in approximately 15-20 minutes, significantly reducing downtime for industrial AGVs and mobile robots.
❄️ All-Weather Resilience: Engineered to operate where others fail, the Gotion 30Ah maintains discharge reliability in extreme cold down to -30°C.
✅ Verified Grade A Quality: We supply 100% original Gotion High-Tech cells with verified QR codes. Every batch is tested for internal resistance (≤0.8 mΩ) to ensure your pack stays balanced.
🎯 Matched for Density: In lightweight applications, pack balance is vital. We provide precision-matched cells to ensure your custom battery pack performs at peak efficiency from day one.
🌐 Specialized Logistics Expertise: DLCPO specializes in secure DDP (Delivered Duty Paid) shipping for high-energy density cells to Brazil, USA, and Europe, managing all Class 9 dangerous goods protocols.
Yes. At only 610g and 175Wh/kg, it is one of the lightest 30Ah prismatic cells available, making it far superior to standard LFP for portable, airborne, or mobile robotic applications.
The cell supports 3C (90A) continuously. For very short pulse durations, it can handle even higher currents; please ensure your BMS and wiring are sized accordingly to handle this high-rate output.

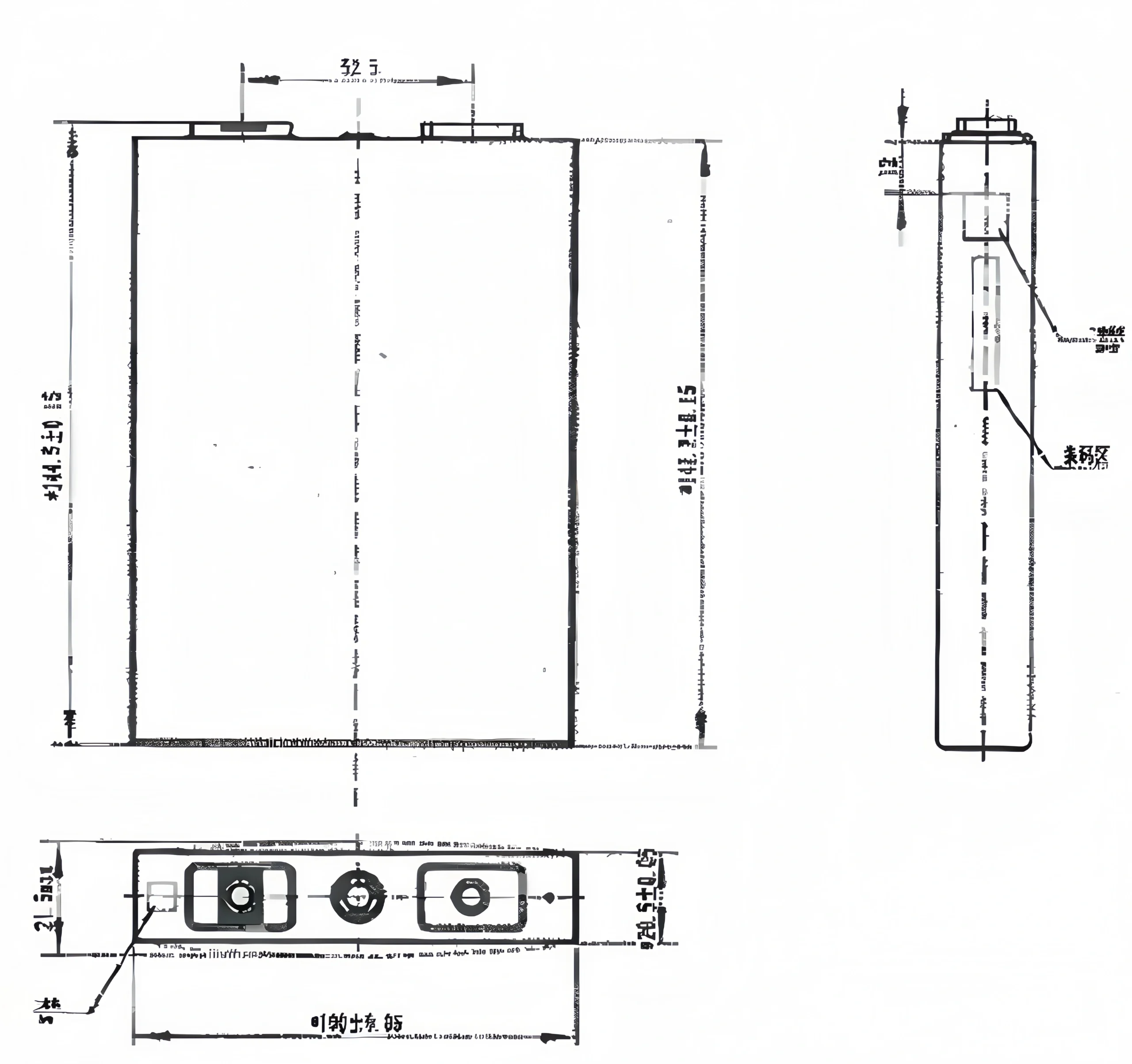

Each cell measures approximately 21.5mm (T) x 100mm (W) x 144.5mm (H). The aluminum shell provides excellent heat dissipation and physical protection, allowing for very tight, dense stacking in custom enclosures. 🚀

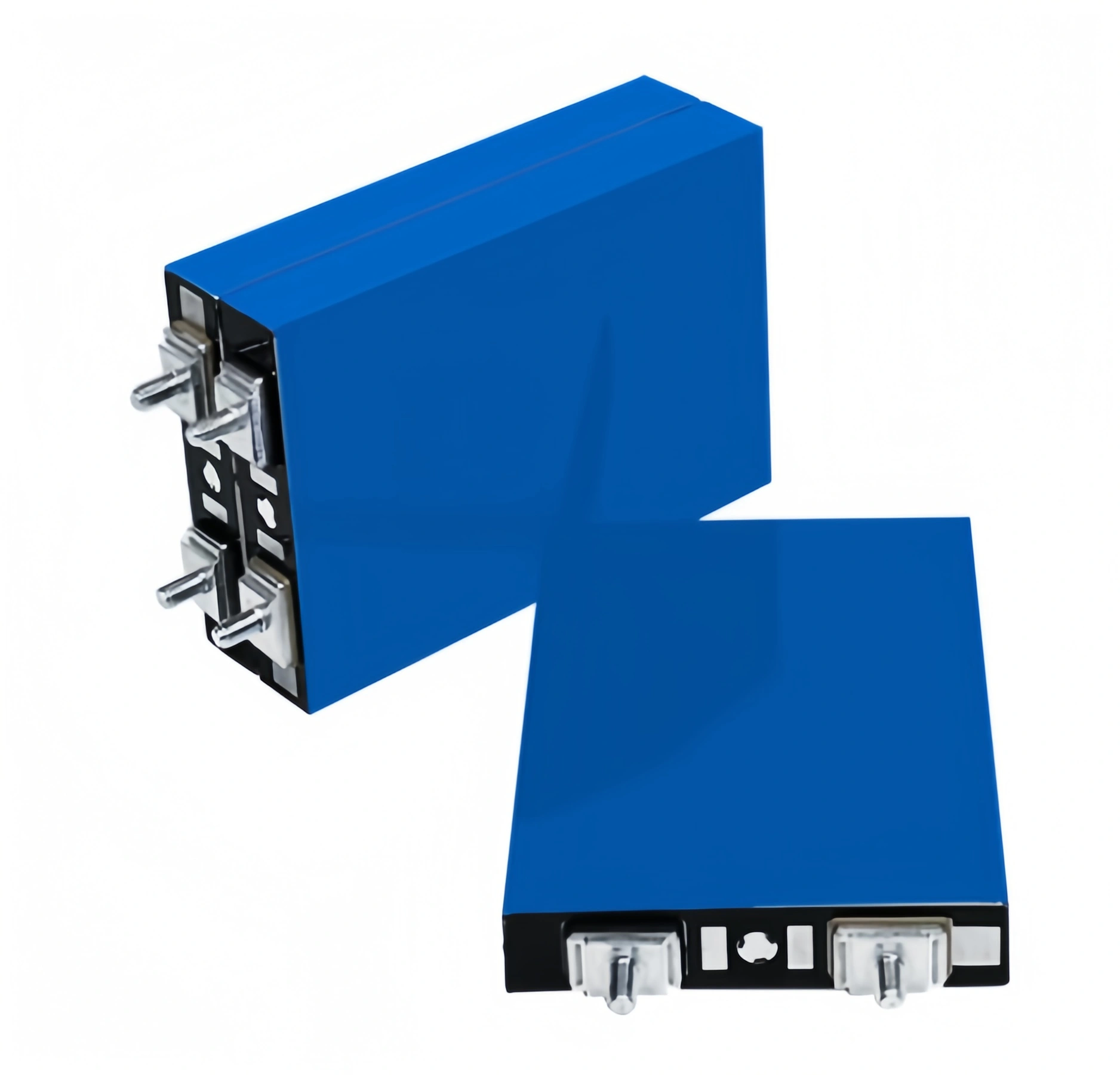

The Gotion LFP20100140A is an ultra-lightweight, high-power 30Ah LiFePO4 prismatic cell. Featuring a remarkable energy density of ≥175Wh/kg and 3C fast charge/discharge capability, it is engineered for high-performance electric mobility and portable energy systems requiring extreme power-to-weight ratios.
| Parameter | Specification |
|---|---|
| Brand | Gotion High-Tech |
| Model Number | LFP20100140A |
| Nominal Capacity | 30.0 Ah |
| Nominal Voltage | 3.2 V |
| Internal Resistance | ≤ 0.8mΩ |
| Continuous Charge/Discharge | 3.0C (90A) |
| Energy Density | ≥ 175 Wh/kg |
| Dimensions (T*W*H) | 21 * 100 * 145 mm |
| Weight | 610g ± 15g |
| Discharge Temperature | -30°C ~ 60°C |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately
Notice: This is a high-power cell. Ensure busbars and connections are rated for 90A+ continuous current. Do not charge below 0°C without heating.
