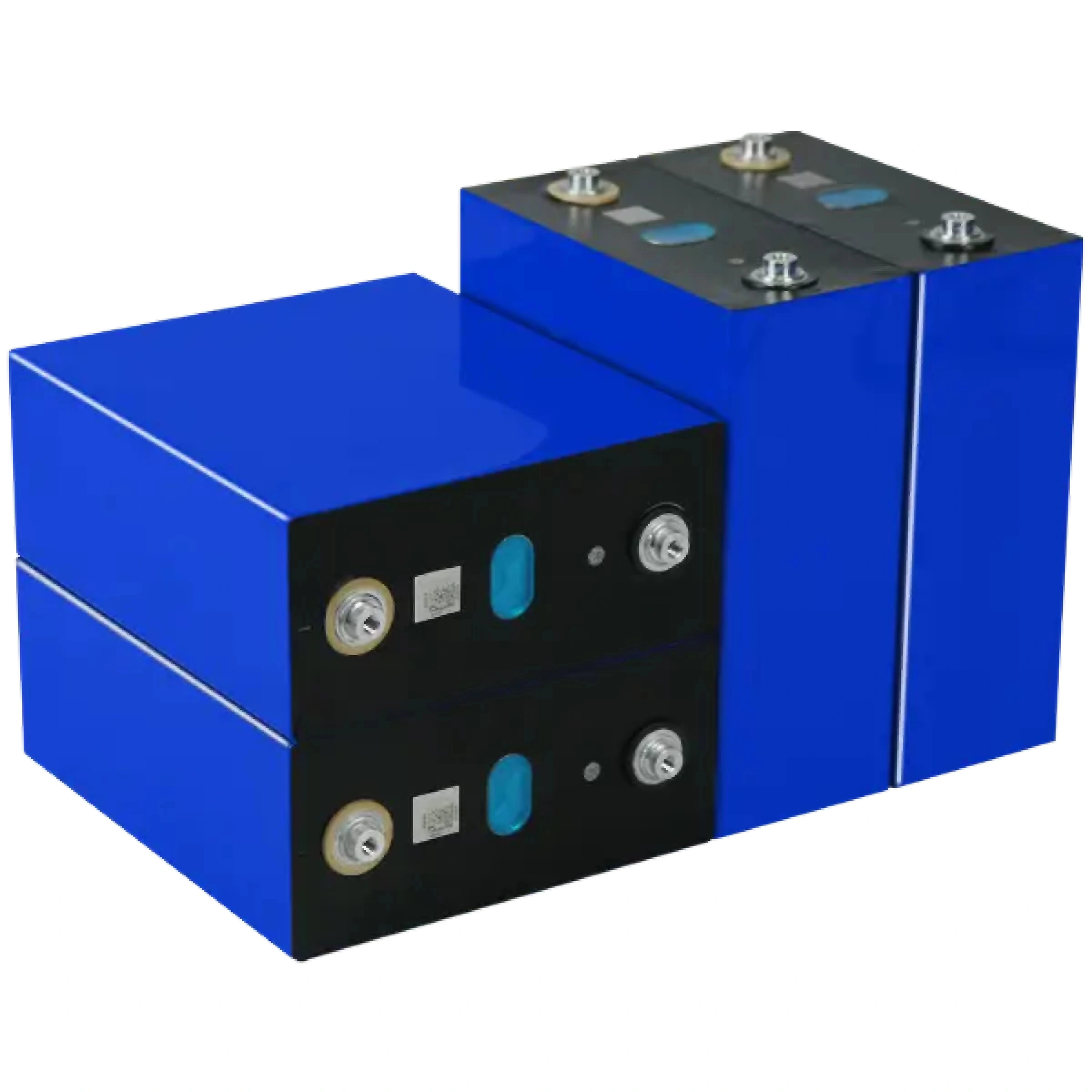

Gotion 340Ah: The New Benchmark for High-Capacity Power
The Gotion High-Tech IFP81175200A-340Ah represents the pinnacle of high-capacity Lithium Iron Phosphate (LiFePO4) engineering. While standard cells focus only on energy storage, this power-grade cell is designed for both massive storage and rapid energy delivery, making it the preferred choice for heavy industrial machinery and high-performance electric vehicle conversions.
⚡ Superior Energy Density: With a nominal energy of 1088Wh per cell, you can build massive battery banks with fewer parallel connections, significantly reducing the system’s complexity and points of failure.
❄️ Unmatched Cold Resilience: Unlike typical LFP batteries that struggle in winter, the IFP81175200A is rated for reliable discharging at temperatures as low as -30°C, ensuring uptime in the harshest climates.
🏎️ Automotive-Grade Reliability: Manufactured in Gotion’s fully automated facilities, these cells feature an ultra-low internal resistance of ≤0.35mΩ, minimizing heat generation even during high-load 5C pulse discharge operations.
✅ Factory Direct Grade A: We supply strictly 100% brand new, Grade A cells with original factory QR codes intact. Every unit is tested for capacity and internal resistance consistency before shipping.
🎯 Data Transparency: DLCPO provides full access to factory birth data and production batch information, ensuring you receive authentic, fresh-stock cells.
🌐 Specialized Global Logistics: We specialize in secure DDP (Delivered Duty Paid) shipping to the USA, Europe, and Brazil, managing all dangerous goods (DG) protocols and customs clearance for a worry-free delivery.
It is rated for ≥4,000 cycles at 1C/1C charge and discharge rates. In a typical solar storage environment with moderate usage, the service life can easily exceed 10-15 years.
The operational range is 2.0V to 3.65V. The 2.0V cutoff is specifically designed to allow for safe energy extraction during extreme low-temperature operations (-30°C) without damaging the cell’s chemistry.
A standard 16S configuration (48.0V) of these cells provides a massive 17.4kWh of storage. This is nearly double the capacity of standard 100Ah/200Ah setups in a very similar physical footprint. 🔋
The Gotion IFP81175200A-340Ah is a premium traction-grade LiFePO4 prismatic cell. Engineered for high-demand electric vehicles and large-scale energy storage, it delivers a massive 1088Wh of energy per cell with a robust 4,000+ cycle life and exceptional low-temperature discharge performance.
| Parameter | Specification |
|---|---|
| Brand | Gotion High-Tech |
| Model Number | IFP81175200A-340Ah |
| Nominal Capacity | 340Ah |
| Nominal Voltage | 3.2V |
| Operational Voltage | 2.0V ~ 3.65V |
| Internal Resistance (1kHz) | ≤ 0.35mΩ |
| Weight | 6.07kg ± 0.1kg |

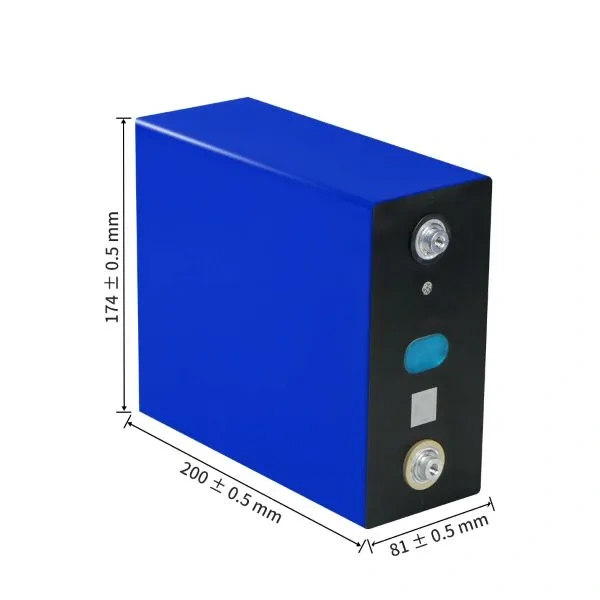

| Dimensions (L*W*H) | 174 * 81 * 200 mm |
| Cycle Performance | ≥ 4,000 Cycles |
| Discharge Temperature | -30°C ~ 60°C |
📢 IMPORTANT NOTICE BEFORE USE
🟢 DO: Pre-Installation Check! Ensure a comprehensive examination before installation.
Inspect Each Cell: Check the physical condition of each cell and ensure no accessories are missing. Visually inspect for any signs of damage, swelling, or leakage. Do not use any cell with a pierced, leaking, broken, cracked, or visibly damaged casing.
Clean Terminals and Connections: Keep terminals, bus bars, and wire lugs clean and free from corrosion, dirt, or any buildup to minimize resistance between the DC terminal and cable connections.
Test Voltage and Capacity: Use a multimeter to test the voltage and internal resistance of each cell. For capacity testing, utilize a battery analyzer or specialized tester on each individual cell.
Balance Cells Before Assembly: Always charge the cells to full voltage before first use. We recommend using chargers specifically designed for LiFePO4 cells. Proper initial charging and balancing of the entire pack is crucial for maximizing lifespan.
🚫 DON’T:
Avoid Immediate Discharge: Never discharge cells immediately after delivery.
Do Not Mix Cells: Avoid mixing cells from different manufacturing series, even if they are the same type and capacity, and do not mix old and new cells. Always use cells from the same manufacturing series and delivery batch for each battery.
Check Terminal Connections: Do not operate with loose terminal connections.
We are committed to your satisfaction! If you are not completely satisfied upon receiving your cells, or if you suspect any integrity issues, please contact our support team immediately at dclpo@dlcpo.com for assistance.
👍 Your Trusted LiFePO4 Battery Supplier
🔋 Genuine LiFePO4 Prismatic Cells: Battery Finds rigorously tests and sources only the highest quality LiFePO4 prismatic cells from Tier 1 manufacturers.
⚡️ Consistent Voltage, Capacity, and Internal Resistance: We adhere to strict selection criteria, ensuring our LiFePO4 cells meet the highest standards for performance, longevity, and safety. Our LFP batteries are made from top-grade materials and undergo rigorous testing.
💰 Budget-Friendly Options for DIYers: We select the best quality LFP cells from original manufacturers and offer them at competitive prices without compromising quality.
🌏 Global Warehousing: With locations in the US, Canada, Europe, and China, we provide local stock for the most popular LFP models, ensuring the fastest delivery times for our customers.
Notice: Cell weighs 6.07kg; ensure structural support handles the weight. Always use a high-quality BMS to monitor the 2.0V lower voltage limit during cold discharge.
