The EVE LF150 occupies the “Goldilocks zone” of lithium batteries. It offers significantly more capacity than the standard 100Ah cells (50% more run time) without the bulk and weight of the massive 280Ah cells. Based on Lithium Iron Phosphate (LiFePO4) chemistry, it is one of the safest and longest-lasting battery technologies available.
A: One EVE LF150 cell contains approximately 480Wh of energy (3.2V * 150Ah).
A: Yes. You need 16 cells connected in series (16S) to create a 48V (51.2V nominal) battery pack with 7.68kWh of capacity.
A: Yes, DLCPO includes busbars and nuts with every purchase. If you have specific requirements (e.g., flexible busbars), please let us know.
The EVE LF150 is a versatile 150Ah LiFePO4 prismatic cell. Offering a perfect balance between capacity and size, it features ultra-low internal resistance (≤0.4mΩ) and a robust cycle life of 4,000 times. Capable of handling high current surges (Max 3C), it is suitable for both energy storage and traction applications.
| Parameter | Specification |
|---|---|
| Brand | EVE |
| Model Number | LF150 |
| Nominal Capacity | 150Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 480Wh |
| Initial Internal Resistance | ≤ 0.4mΩ |
| Standard Charge/Discharge | 0.5C (75A) |
| Max. Discharge Rate | 3C (450A) |
| Cycle Life (25°C) | 4,000 Cycles |
| Storage Temperature | 0°C ~ 35°C |

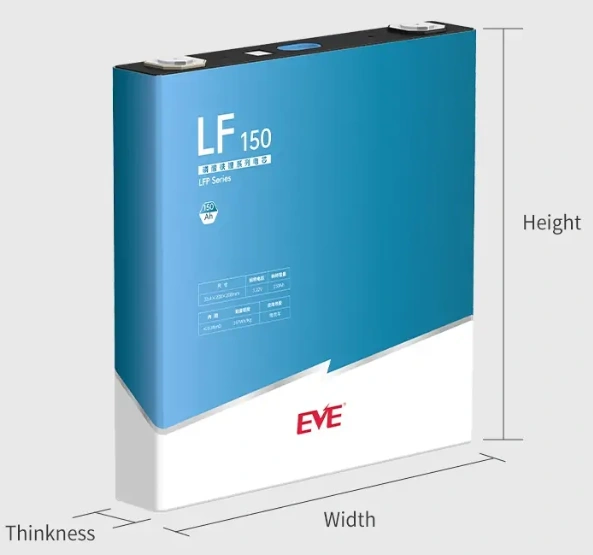

| Dimensions (W*T*H) | 200.7 x 33.25 x 207.0 mm |
| Weight | 2830 ± 84 g |
It is strictly forbidden to immerse the battery in water. When it is not in use, it should be placed in a cool and dry environment
It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.
Please use a special charger for lithium-ion batteries when charging
During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery
Do not throw the battery in the fire or heater
It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit
It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.
It is forbidden to knock or throw, step on, or bend the battery.
It is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects
It is forbidden to use or place the battery under high temperature (under hot sunlight), otherwise it may cause the battery to overheat or fail to function and shorten its life.
It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage the battery safety protection device and bring hidden dangers of safety.
If the battery leaks and the electrolyte splashes on the skin or clothes, immediately wash the affected area with running water. If the battery leaks and the electrolyte enters the open parts of the human body such as the eyes, mouth, nose, etc., immediately rinse the eyes with a large amount of water and send to a doctor for treatment immediately, otherwise it will cause serious harm to the human body.
If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.
Notice: Always compress cells to ensure rated cycle life. Standard charge/discharge is 0.5C for maximum longevity.
