The EVE LF105 is a specialized Lithium Iron Phosphate (LiFePO4) prismatic cell that has taken the light EV market by storm. While it works perfectly for solar storage, its true strength lies in its power delivery. It supports a Continuous Discharge Rate of 3C (315 Amps), making it significantly more powerful than standard 105Ah storage cells.
A: Yes, it is excellent. A 16S (48V) pack of EVE LF105 cells gives you ~5kWh of capacity and can deliver over 300A of continuous current, which is more than enough for stock and modified carts.
A: Each cell weighs approximately 1.98kg. A full 48V pack (16 cells) weighs only ~32kg, drastically reducing the weight of your vehicle compared to lead-acid.
A: Each cell weighs approximately 1.98kg. A full 48V pack (16 cells) weighs only ~32kg, drastically reducing the weight of your vehicle compared to lead-acid.
The EVE LF105 is a professional-grade 105Ah LiFePO4 prismatic cell engineered for high-demand traction and storage applications. Supporting an impressive 3C continuous discharge (315A), it is the premier choice for electric forklifts, AGVs, golf carts, and heavy-duty robotic systems requiring high current surges and long-term stability.
| Parameter | Specification |
|---|---|
| Brand | EVE |
| Model Number | LF105 |
| Nominal Capacity | 105Ah |
| Nominal Voltage | 3.2V |
| Operating Voltage | 2.5V ~ 3.65V |
| Internal Resistance | 0.32 ± 0.05 mΩ |
| Max. Continuous Discharge | 3C (315A) |

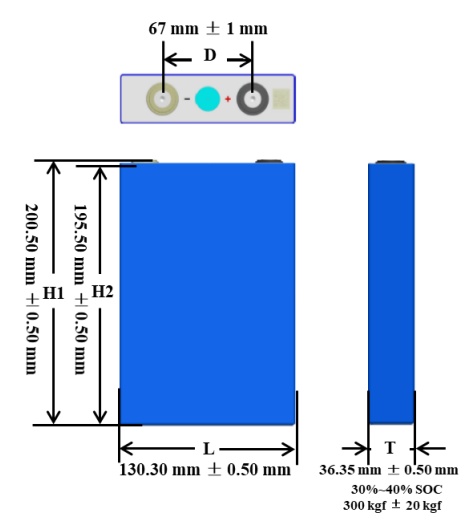

| Dimensions (L*T*H1) | 130.30 x 36.35 x 200.50 mm |
| Body Height (H2) | 195.50 ± 0.50 mm |
| Terminal Center Distance (D) | 67 ± 1 mm |
| Pre-tightening Force | 300 kgf ± 20 kgf |
| Storage/Shipping SOC | 30% ~ 40% |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: This is a high-power cell. Ensure your busbars and BMS can handle the 3C (315A) discharge current if utilizing full power.
