EVE LF105 3.2V 105Ah LiFePO4 Prismatic Battery Cell – Traction Grade

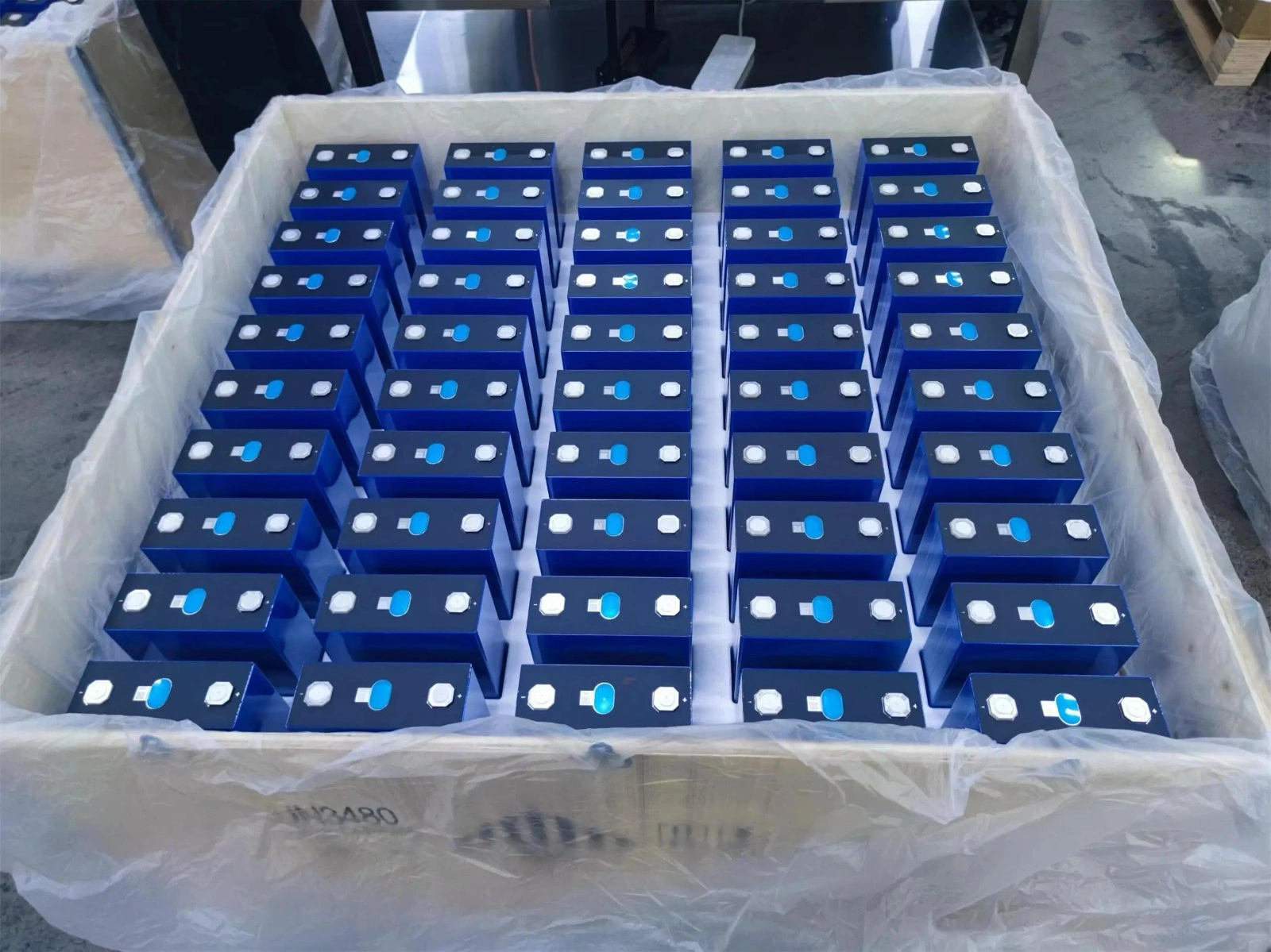

A fresh production batch of original EVE LF105 3.2V 105Ah Grade A LiFePO4 cells, produced to order and arranged in professional packaging to ensure 100% chemical activity upon arrival.

EVE LF105 (105Ah): The Traction Powerhouse

The EVE LF105 is distinct from standard solar storage batteries. It is a High-Rate Discharge LiFePO4 prismatic cell designed for motion. While standard 100Ah cells limit you to 100A output, the LF105 delivers a robust 3C Continuous Discharge (315A), giving it the muscle needed for electric vehicles.

Key Features

3C Power Output: This cell can sustain a continuous current of 315 Amps. For a 48V golf cart pack, this means you have ample power for climbing hills or carrying heavy loads without voltage sag.
Compact Footprint: Measuring just 36.7mm thick, 16 of these cells can easily fit into standard battery trays, allowing for a seamless lead-acid to lithium conversion.
Traction Grade Lifespan: Rated for ≥2,500 cycles at 80% DOD under dynamic load conditions, ensuring years of reliable service in demanding EV environments.

Why Buy from DLCPO?

Authenticity: We supply 100% genuine EVE LF105 cells. We verify every cell to ensure it is not a re-wrapped lower-grade product.
Matched for EV Packs: High-power applications require perfect cell balance. We test internal resistance (≤0.5mΩ) and voltage to provide matched sets.
Assembly Accessories: We include thick copper busbars and nuts to handle the high current. Custom laser-welded studs (M6) are available upon request.

❓ Q:❓Q: Why is this better for golf carts than LF100LA?

💡 A:

A: The LF100LA is great for storage (1C max), but the LF105 is built for power (3C max). The LF105 provides better acceleration and hill-climbing performance.

❓ Q:❓Q: Can I use this for solar storage too?

💡 A:

A: Yes, absolutely. It will work perfectly for solar, but its premium features are best utilized in high-power applications.

❓ Q:❓Q: What is the weight of one cell?

💡 A:

A: Each cell weighs approximately 1.98kg. A full 48V pack (16 cells) is under 32kg, drastically lighter than lead-acid batteries.

Main technical specifications

Product Overview:

The EVE LF105 is a specialized high-power 105Ah LiFePO4 prismatic cell. Engineered for traction applications, it supports a continuous discharge rate of 3C (315A), making it the industry standard for powering golf carts, utility vehicles, and marine propulsion systems.

Parameter	Specification
Brand	EVE
Model Number	LF105
Nominal Capacity	105Ah
Nominal Voltage	3.2V
AC Impedance (1kHz)	≤ 0.5mΩ
Max. Continuous Charge	1C (105A)
Max. Continuous Discharge	3C (315A)
Dimensions (TWH)	36.7 * 130.3 * 200.5 mm
Weight	1.98kg ± 0.1kg
Cycle Life (80% DOD)	≥ 2,500 Cycles

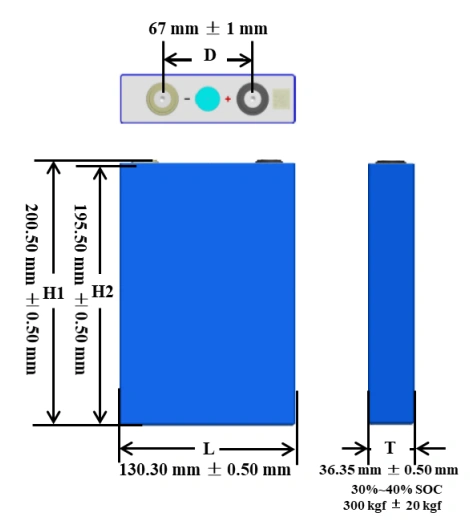

Drawing

Applications

Golf Carts: The 3C (315A) discharge capability ensures your cart has enough torque for steep hills and rapid acceleration.
Electric Forklifts: Capable of handling the heavy current spikes required by hydraulic lifting motors.
Marine Propulsion: Reliable power for electric outboards and trolling motors.
AGV (Automated Guided Vehicles): Compact and powerful energy source for 24/7 industrial robots.

Warnings & Cautions

Stop charging cells if charging isn’t completed within the specified time.

Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.

Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.

Notice: This cell is capable of high current output (315A). Ensure your busbars and BMS are rated accordingly to prevent overheating.
