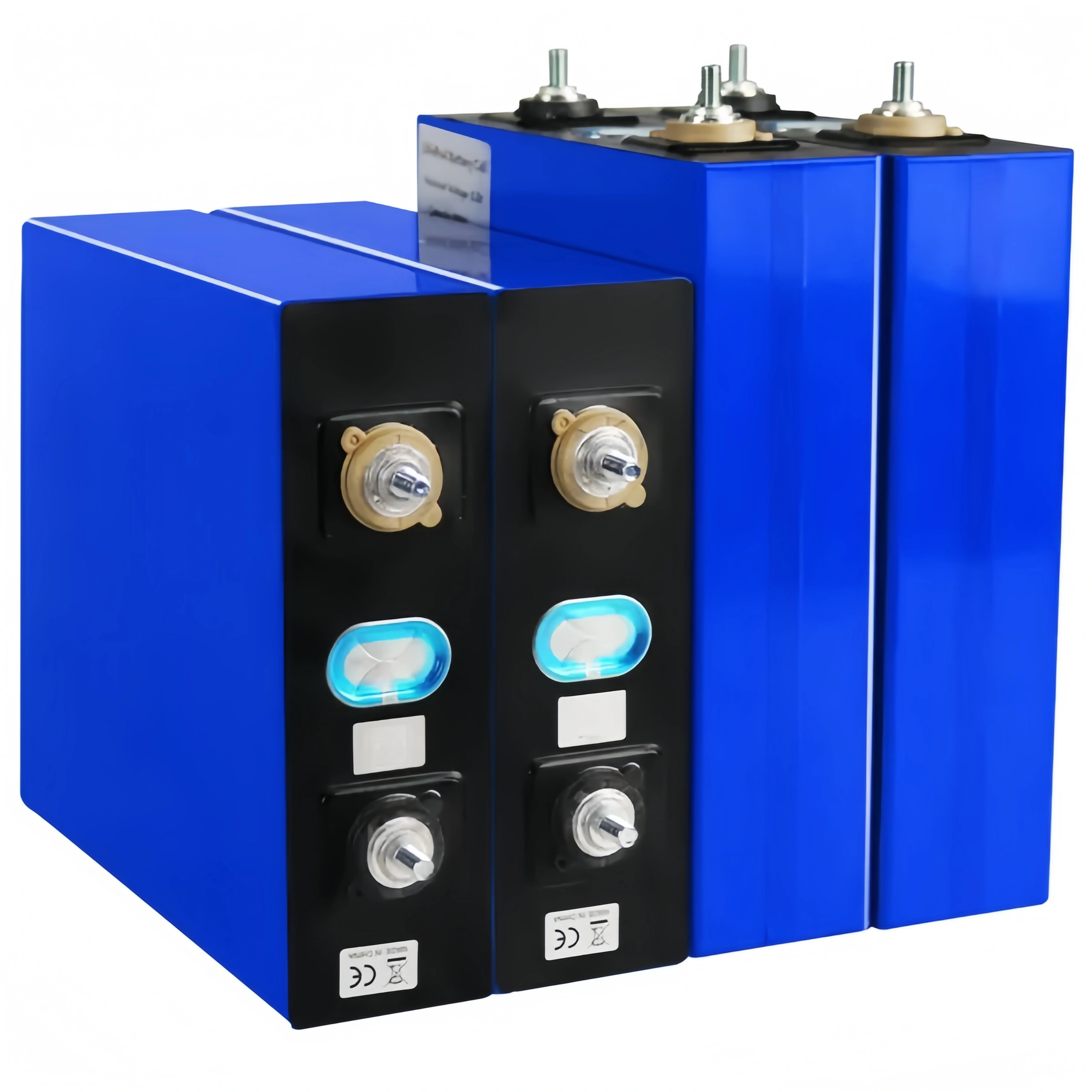

CATL 176Ah: The Hidden Gem of the VDA Platform The CATL 176Ah 3.2V prismatic cell is built on the industry-standard VDA platform. Measuring 53mm x 173mm x 200mm, it shares the exact same physical footprint as the popular 202Ah and 228Ah cells, but at a lighter weight (3.82kg) and often at a much more competitive price point. It is the premier choice for professionals who understand that actual performance often exceeds the labeled specifications.
Under-Promised, Over-Delivered: While rated at 176Ah, these cells are famous for their conservative rating. Many batches test significantly higher, often approaching 200Ah, providing a massive increase in value for your money.
Standardized VDA Size: Its standardized dimensions make it a perfect drop-in option for battery boxes designed for VDA modules. This allows system integrators to build flexible capacity packs without changing hardware or fixtures.
High Durability & Efficiency: Engineered for longevity, the 176Ah cell offers a cycle life of 6,000 cycles or more. With an ultra-low internal resistance of ≤0.28 mΩ, energy loss during high-load charging and discharging is minimized.
✅ Correct Brand Promise: We strictly supply genuine CATL (Contemporary Amperex Technology Co. Limited) products. Beware of “CALT” typos in the market; DLCPO ensures you get the real Tier-1 brand every time.
🎯 Professional Batch Matching: We don’t just ship boxes. DLCPO performs rigorous voltage and internal resistance testing for every order to ensure you receive a matched, balanced batch for your battery string.
🌐 Specialized Global Logistics: We are experts in shipping heavy lithium batteries to Brazil and worldwide. Our professional DDP (Delivered Duty Paid) service handles all complex customs clearance and UN3480 regulations for a worry-free delivery.
To achieve the maximum cycle life, we recommend operating the cells within a 10% to 90% SOC window at a 0.5C charge/discharge rate at 25°C. These cells are specifically engineered with optimized electrolyte additives that minimize lithium plating, ensuring long-term capacity retention in utility-scale storage. 🚀
For stable electrical conductivity and to prevent terminal damage, we recommend a torque of 6 to 8 Nm. Always use a calibrated torque wrench and ensure the busbars are clean to maintain the ultra-low internal resistance of 0.17 ± 0.05 mΩ. 📐
While primarily designed for stationary ESS, their robust aluminum casing and laser-welded terminals provide excellent structural integrity. For mobile use, ensure the battery rack provides consistent compression (approx. 300 ± 20 kgf) to prevent internal tab fatigue. ⚡
The CATL 176Ah LiFePO4 prismatic cell features standard VDA dimensions (53.5mm thickness), making it compatible with various EV modules. Known for its robust performance, it offers a rated cycle life of 6,000+ times and often exceeds its nominal capacity in actual testing.
| Parameter | Specification |
|---|---|
| Brand | CATL |
| Model | 176Ah (VDA Prismatic) |
| Nominal Capacity | 176Ah (Actual >180Ah) |
| Nominal Voltage | 3.2V |
| Operating Voltage | 2.5V ~ 3.65V |
| Internal Resistance | ≤ 0.28 ± 0.05mΩ |

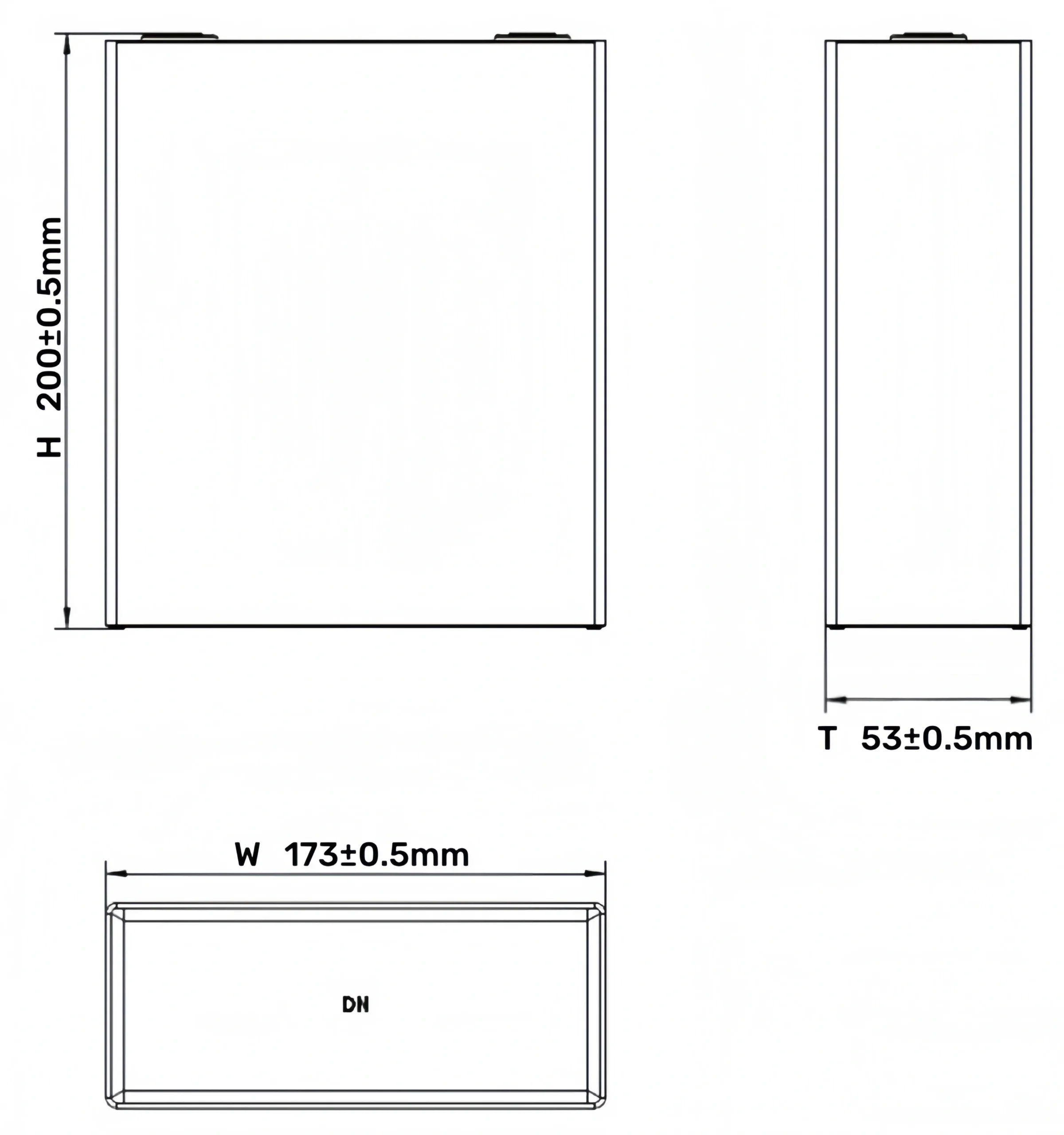

| Dimensions (T*W*H) | 53.5 * 173 * 200 mm |
| Weight | 3.82kg ± 0.1kg |
| Cycle Life | ≥ 6,000 Cycles |
| Charging Temperature | 0°C ~ 45°C |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: This is a genuine CATL product (not CALT). Always compress cells (approx. 300kgf) to ensure rated cycle life.
