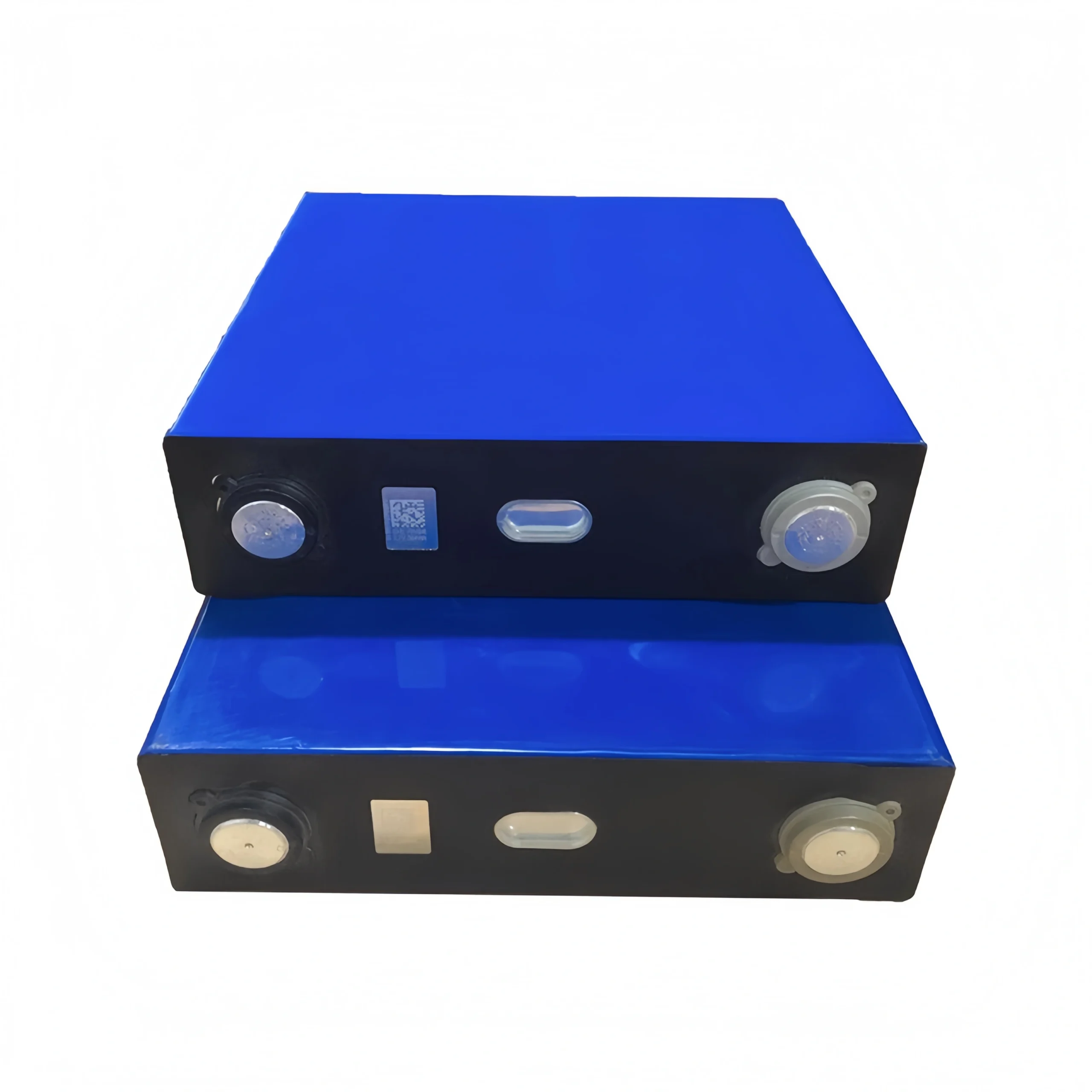

CATL 120Ah: Compact & Powerful High-Rate Solution The CATL 120Ah 3.2V prismatic cell is a high-performance Lithium Iron Phosphate (LiFePO4) battery known for its superior safety profile and consistency. Unlike standard stationary storage cells, this model is built for mobility, offering no cobalt or nickel chemistry which makes it an eco-friendly and cost-effective power choice. With its 2C continuous discharge capability, it is the primary choice for traction applications where surge power is essential.
High Discharge Rate: Unlike standard 0.5C storage cells, the CATL 120Ah supports up to 2C (240A) continuous discharge, providing the critical torque and power needed for electric motors under heavy loads.
Space-Saving Dimensions: Measuring approximately 174mm width and only 48mm thickness, its slim profile allows for flexible installation in tight spaces like under-chassis compartments or boat hulls.
Automotive-Grade Reliability: Manufactured by CATL, this cell undergoes strict consistency testing for voltage and internal resistance, ensuring your battery pack stays balanced and reliable for years.
✅ Genuine Grade A Only: We supply only 100% brand new, fresh production cells with original, scannable QR codes. We have a zero-tolerance policy for B-grade or swollen cells.
🎯 Matched Performance: All cells are capacity and internal resistance (IR) matched before shipping to ensure your DIY or professional pack operates as a unified, long-lasting system.
🌐 Specialized Global Logistics: DLCPO is an expert in shipping DDP (Delivered Duty Paid) to Brazil and Europe. We handle all customs clearance, taxes, and Class 9 dangerous goods logistics so the battery arrives directly at your door.
Yes! The CATL 120Ah is perfect for 36V or 48V golf carts. For example, a 48V (16S) pack would provide approximately 6kWh of energy and can easily handle the high current startup surges of the cart’s motor.
The CATL 120Ah typically offers 3,500 cycles or more at 80% Depth of Discharge (DOD). With proper BMS protection and 0.5C charging habits, these cells can last for over 10 years in typical solar or leisure applications.
Yes, we specialize in DDP shipping to Brazil. We manage the complex customs clearance and taxes locally, meaning you don’t have to worry about additional fees or paperwork when the cells arrive.
The CATL 120Ah LiFePO4 prismatic cell is a versatile power solution characterized by its compact design and high discharge capability (up to 2C). It is widely used in electric mobility (golf carts, AGVs) and small-scale energy storage.
| Parameter | Specification |
|---|---|
| Brand | CATL |
| Model | 120Ah (Prismatic) |
| Nominal Capacity | 120Ah |
| Nominal Voltage | 3.2V |
| Operating Voltage | 2.5V ~ 3.65V |
| Internal Resistance | ≤ 0.5mΩ |
| Standard Charge Current | 24A (0.2C) |
| Max. Discharge Current | 240A (2C) |

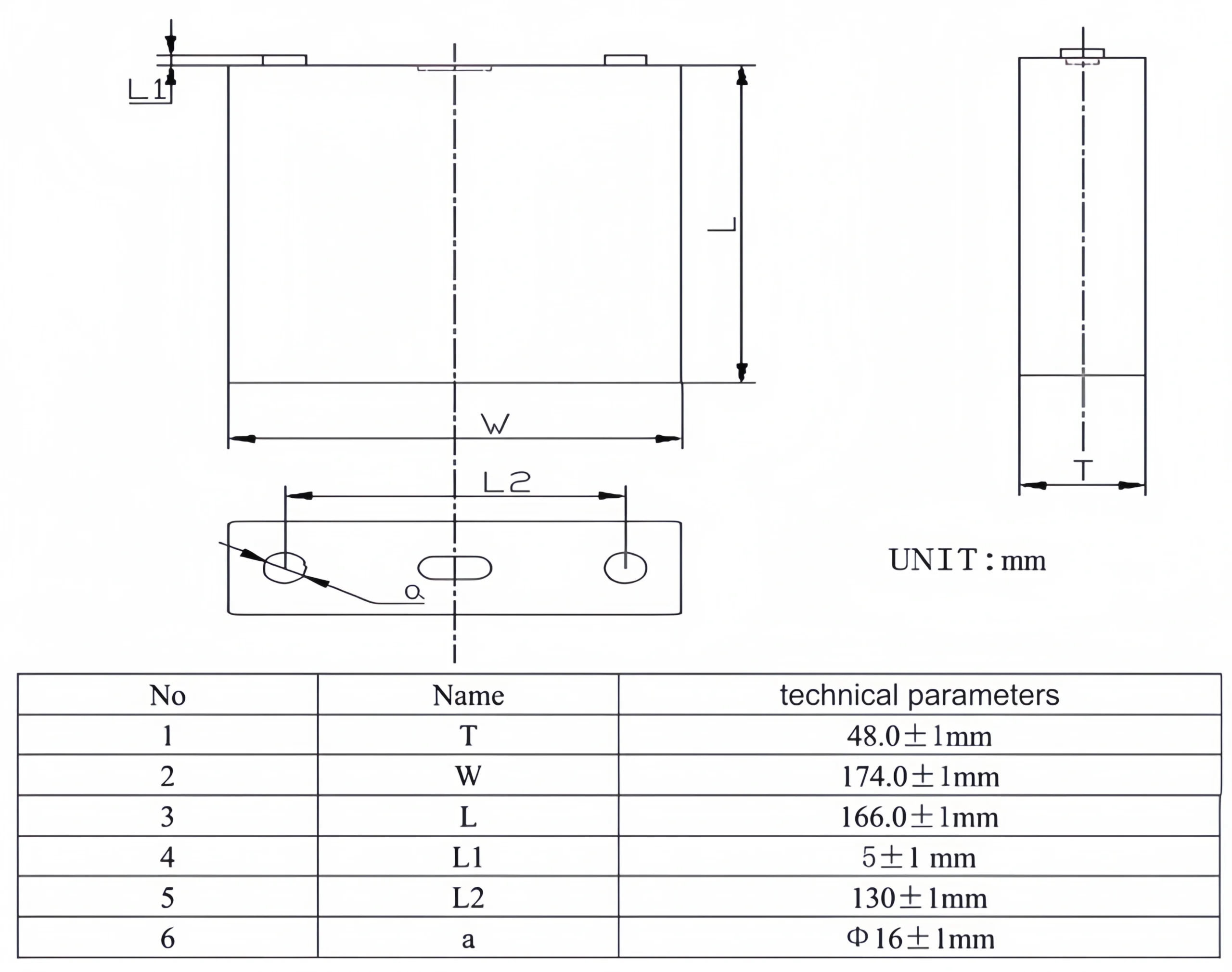

| Dimensions (H*W*T) | 171mm * 174mm * 48mm |
| Weight | 2.84kg ± 0.1kg |
| Cycle Life (80% DOD) | ≥ 3,500 Cycles |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Strictly follow the DLCPO assembly guide. Always use a BMS. Ensure proper compression (12-15 PSI) for maximum cycle life.
