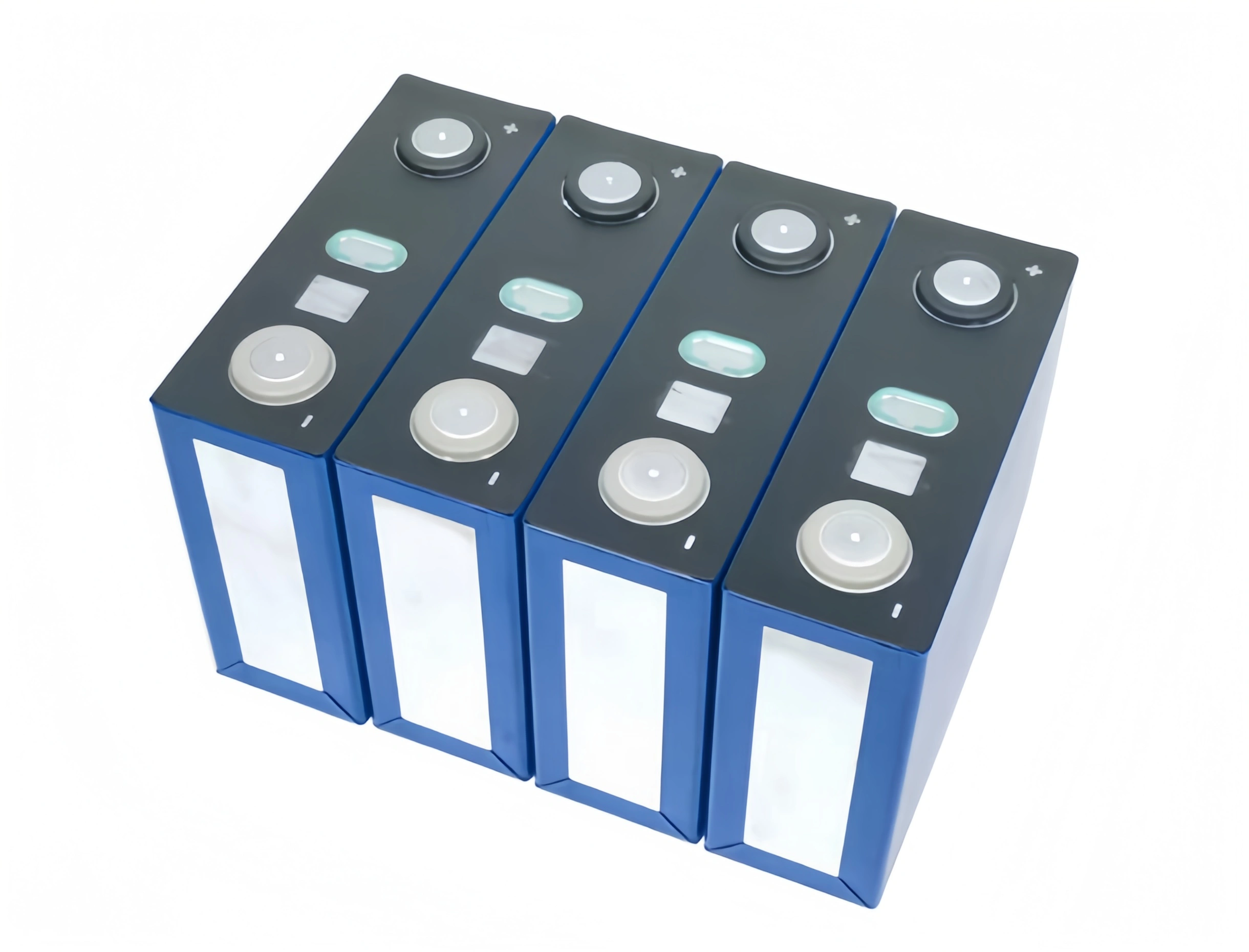

CATL ND117 117Ah: The Lightweight Champion of Compact Power The CATL ND117 is a specialized 3.2V Lithium Iron Phosphate (LiFePO4) prismatic cell engineered for applications where energy density and weight efficiency are critical. Unlike older generation batteries, the ND117 packs 117Ah of capacity into a lightweight 2.2kg package, delivering significantly more run-time without adding bulk.
Ultralight Design: At only 2.2kg, this cell offers an industry-leading energy-to-weight ratio. It is the perfect choice for portable power stations and light electric vehicles where every gram counts.
17% More Energy: Directly upgrade your system from 100Ah to 117Ah using the same space. This increase in energy density allows for longer vehicle range and extended backup times for off-grid systems.
High Discharge Capability: Capable of a 2C (234A) continuous discharge rate, the ND117 provides the surge power necessary for starting motors in golf carts, electric trikes, and mobile industrial equipment.
Automotive-Grade Safety: Built with CATL’s proven LFP chemistry, it is thermally stable and inherently safe, offering a long cycle life and zero risk of fire under standard operating conditions.
✅ Authenticity Guaranteed: We correct the common market confusion—this is a genuine CATL product (from Contemporary Amperex Technology Co. Limited), not a “CALT” knock-off. We verify every cell’s original QR code before shipment.
🎯 Grade A Performance: DLCPO strictly supplies Grade A cells. We perform individual testing for voltage, capacity, and internal resistance to ensure you receive a matched, balanced batch for your battery pack.
🌐 Global Delivery Expertise: From our supply hub to the USA, Europe, and Brazil, we handle professional DDP (Delivered Duty Paid) shipping. We take care of customs and taxes, ensuring your high-performance batteries arrive safely and hassle-free.
The cell supports a continuous discharge of 2C, which means it can output up to 234 Amps sustained, provided your BMS and thermal management are correctly configured.
Absolutely! It shares a very similar footprint but gives you 17% more capacity (117Ah vs 100Ah). This is the most efficient way to upgrade your system’s runtime without increasing the size of your battery box.
The ND117 supplied by DLCPO is LiFePO4 (LFP) with a nominal voltage of 3.2V. It is much safer and has a significantly longer cycle life than NCM (Ternary) batteries, making it better for long-term use in solar and traction systems.
The CATL ND117 is a high-efficiency 117Ah LiFePO4 prismatic cell. With a lightweight design (approx. 2.2kg) and stable 3.2V chemistry, it is widely used in solar street lighting, portable power stations, and lightweight electric mobility applications (golf carts/scooters).
| Parameter | Specification |
|---|---|
| Brand | CATL |
| Model | ND117 (Prismatic) |
| Nominal Capacity | 117Ah |
| Nominal Voltage | 3.2V |
| Operating Voltage | 2.5V ~ 3.65V |
| Internal Resistance | ≤ 0.5mΩ |
| Max. Discharge Current | 234A (2C) |
| Continuous Discharge | 117A (1C) |

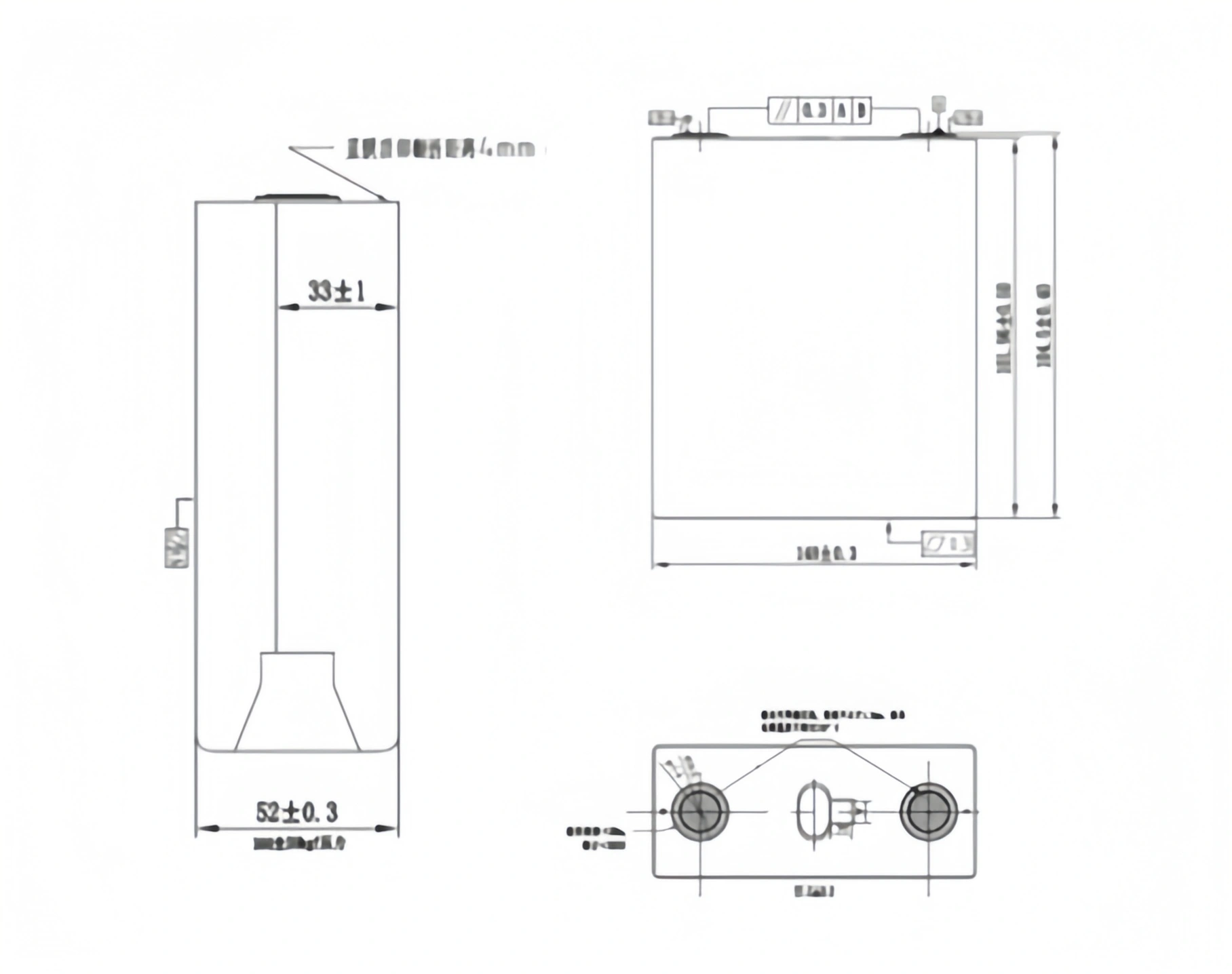

| Dimensions (L*W*H) |
Stop charging cells if charging isn’t completed within the specified time.
Stop using cells if the battery becomes abnormally hot, develops an odor, becomes discolored, deformed, or develops any other abnormal conditions during use, charge, discharge, or storage.
Keep away from fire or hot heat sources immediately when a leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash it out with plenty of fresh water immediately if liquid leaks from cells and gets into your eyes, don’t rub your eyes. Wash your eyes out with plenty of clean water and seek medical attention immediately.
Notice: Ensure cells are compressed properly to prevent swelling. Use a BMS compatible with LiFePO4 (3.2V) chemistry, not NCM.
