The CALB L160F100 is one of the most popular cells for DIY enthusiasts and professional builders upgrading from traditional lead-acid systems. Known as the “Golf Cart King,” this 100Ah cell offers a unique balance of compact dimensions and heavy-duty power delivery.
High Power Performance: Unlike standard storage cells, the CALB L160F100 supports a robust 3C (300A) pulse discharge. This makes it powerful enough to start small engines or provide the necessary torque for golf cart acceleration without significant voltage sag.

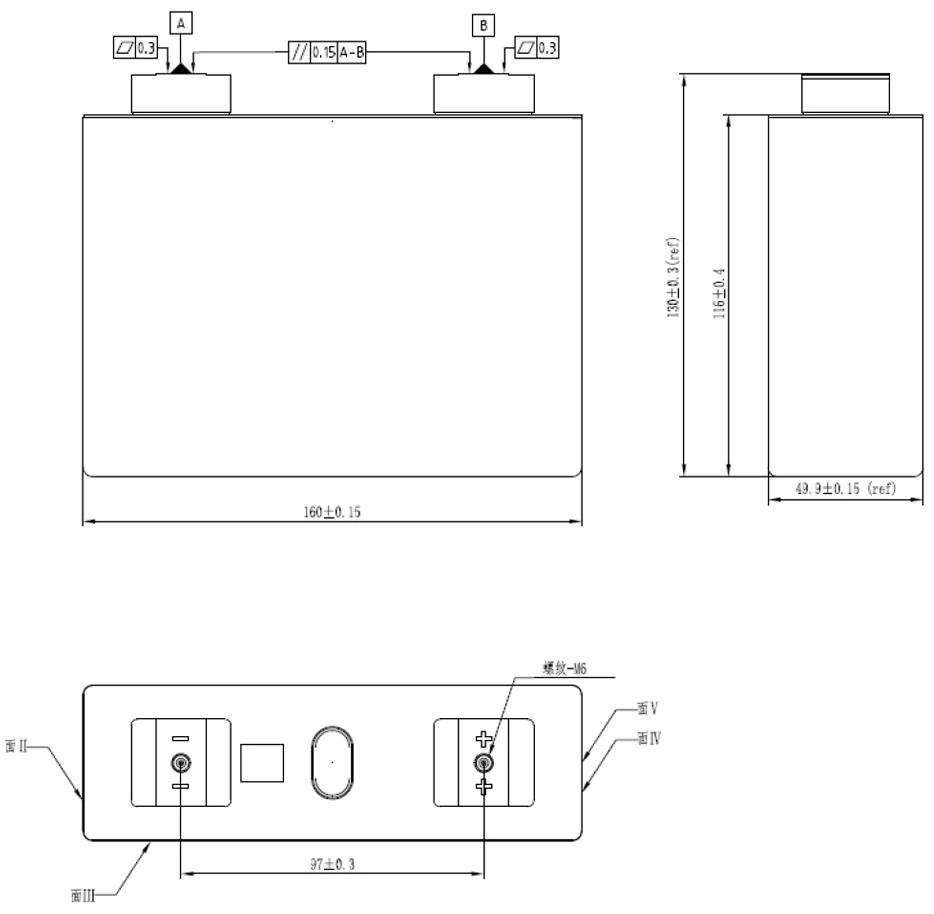

Perfect Retrofit Size: With a length of $160 \pm 0.15$ mm and a thickness of $49.9 \pm 0.15$ mm, four cells fit easily into standard Group 27 or Group 31 battery boxes, making 12V lead-acid to lithium conversions seamless.
Industrial Grade Precision: Features a total height of $130 \pm 0.3$ mm and a terminal center distance of $97 \pm 0.3$ mm, optimized for stable modular integration.
Cost-Effective High Performance: Ideal for projects that require professional-grade reliability without the footprint or cost of massive 280Ah cells.
Produced to Order (No Aged Stock): We strictly follow a “Produced to Order” policy. DLCPO guarantees that every CALB L160F100 is freshly manufactured from the latest batches, ensuring 100% chemical activity and maximizing your system’s service life.
Global DDP Logistics: We provide comprehensive DDP (Delivered Duty Paid) shipping options. From customs clearance to import duties, we handle the entire process and deliver the CALB L160F100 directly to your door with no hidden costs.
Bespoke Connection Solutions: Based on your specific requirements, we provide customized accessories including busbars, nuts, and insulation sheets. We also offer professional laser-welding for terminal studs to ensure the most secure, low-resistance connections.
Matched Grade A Sets: Every order is rigorously tested and matched for Voltage and Internal Resistance (IR) before shipment to ensure a perfectly balanced battery pack.
A: Yes. The CALB L160F100 features a compact length of 160 mm and height of 130 mm. In a 4S configuration (12V), it is specifically designed to fit easily into standard Group 27 or Group 31 battery enclosures commonly found in RVs and golf carts.
A: Yes. The CALB L160F100 features a compact length of 160 mm and height of 130 mm. In a 4S configuration (12V), it is specifically designed to fit easily into standard Group 27 or Group 31 battery enclosures commonly found in RVs and golf carts.
A: Yes. We configure connection kits based on your needs, typically including busbars, nuts, and insulation sheets. We can also provide cells with custom laser-welded studs to simplify your assembly and ensure maximum electrical conductivity.
Product Overview:

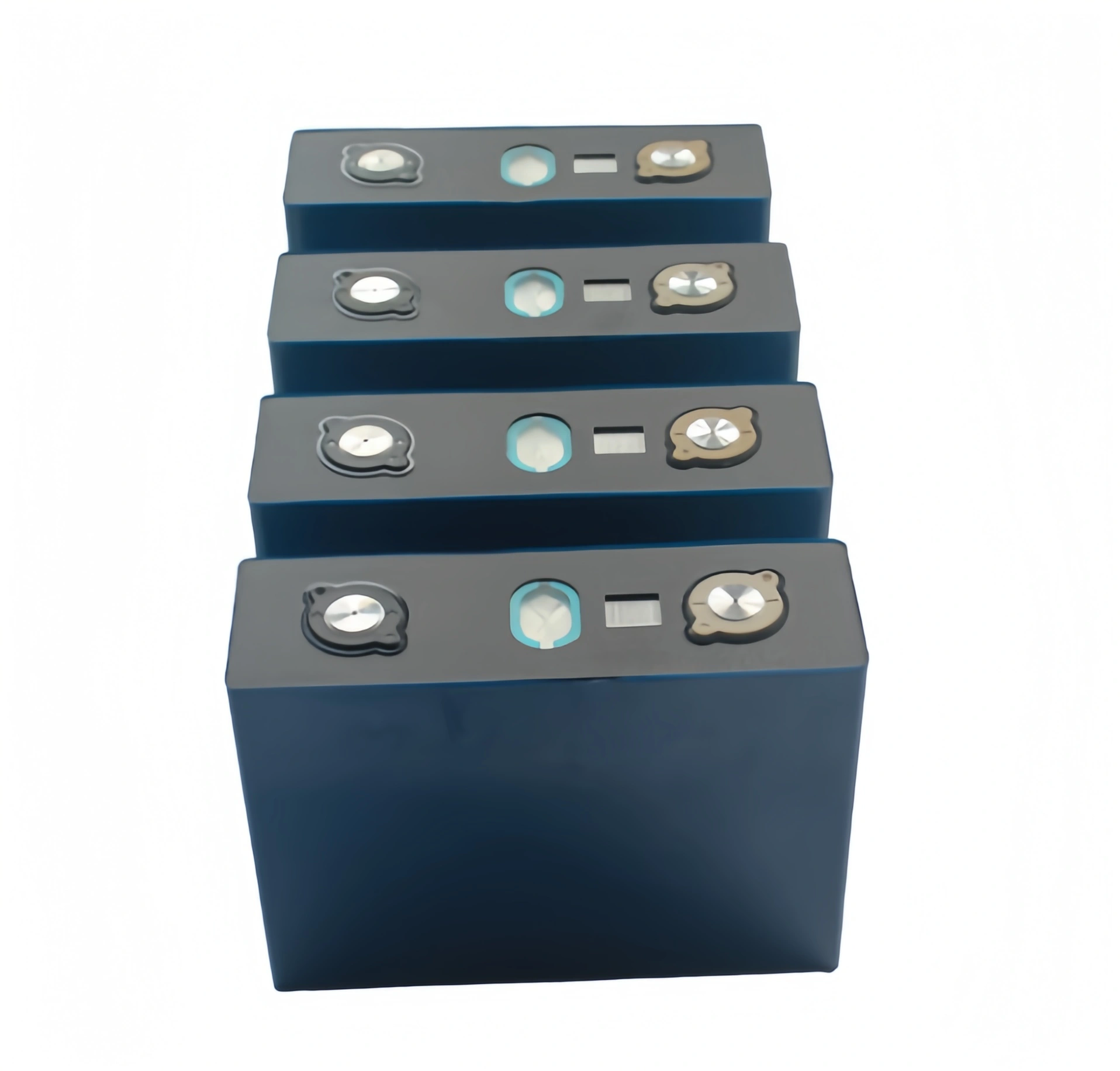

The CALB L160F100 is a classic 100Ah prismatic cell. Its compact aluminum shell design makes it an ideal building block for 12V, 24V, and 48V battery packs, especially where space is limited.
| Parameter | Specification |
| Brand | CALB |
| Model | L160F100 |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Operating Voltage | 2.5V – 3.65V |
| Internal Resistance | 0.3 ~ 0.5 mΩ |
| Max Continuous Discharge | 100A (1C) |
| Max Pulse Discharge | 300A (3C) |
| Dimensions (L*W*H) | 160mm x 49.5mm x 125.5mm |
| Weight | 2.0 ± 0.1 kg |
| Cycle Life | ≥ 2,000 Cycles |
Ideal for 12V/24V/48V Replacements:
Golf Carts: High pulse discharge (300A) handles acceleration surges easily. Build a 48V pack using 16 cells.
RVs & Campers: Perfect size to replace old AGM/Lead-acid batteries under seats.
Marine: Trolling motors and house banks for sailboats.
Solar Storage: Small-scale off-grid systems (1.2kWh per module).
Compression: Ensure cells are secured tightly to prevent swelling over time.
BMS: A BMS is required to prevent over-discharge below 2.5V.
Series Connection: Cells must be voltage-matched and top-balanced before connecting in series.
